Tweco 9-8587 User Manual
Page 8
Manual 0-5185
8
11. Verify all electrical connections are tightened properly to the contactor and “A and “B” transformer wires. Snap
the enclosure top onto the bottom placing the rear edge of the box down first then pressing the front and latching
to the base in the front. Attempt to pull the top up from the bottom, this should not occur without releasing the
latches. There should be no gap around the box lip.

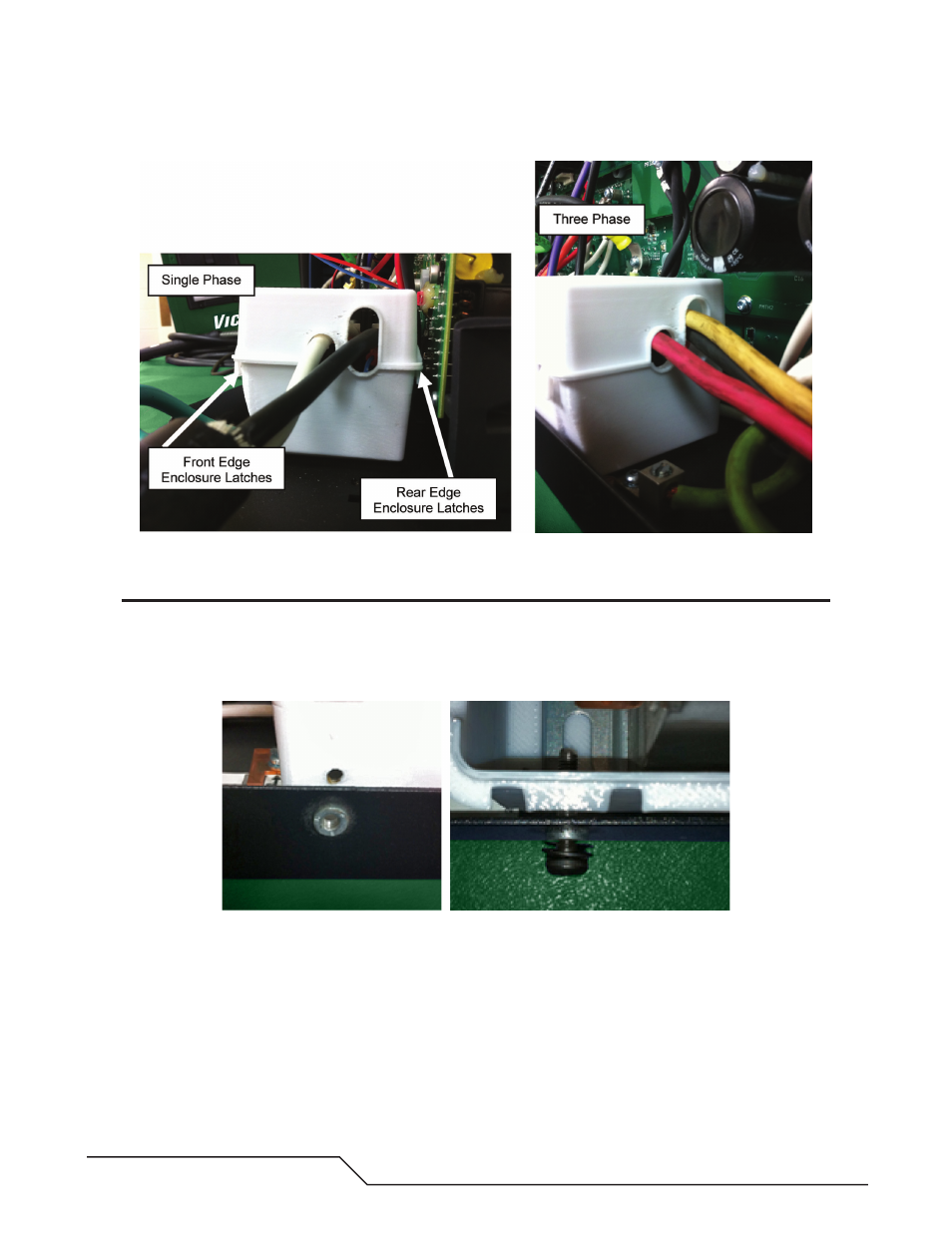

Figure 21: Latches engaged on the Enclosure. (REAR PANEL REMOVED FOR CLARITY)
NOTE:
Single/Three Phase wire guide use
12. Alignment: (CutMasters >80A Only w/o AC Filter). The round hole on the outer side of the box is clearance for
the lower case screw. Ensure that the screw will pass through the hole before installing the CutMaster cover.
Figure 22: Hole Alignment
