TRANSARC 170i
KEY SPARE PARTS 6-2 Manual 0-5281
TRANSARC 170i POWER SOURCE SPARE PARTS
ITEM PART NUMBER DESCRIPTION
1 W7005800 PCB Power
2 W7005801 PCB Control
3 W7005803 PCB Front Panel (Display) 170i
4 W7005805 Knob Control
5 W7004909 Dinse Socket 50mm 2
6 W7005811
Control Socket 8 pin (Note that 8 pin control plug is part number
UOA706900)
7 W7005812 Shielding Gas Outlet 5/8-18
8 W7005814 CT Output
9 W7004908 Shielding Gas Solenoid Valve Assembly
10 W7005605 Shielding Gas Inlet Quick Connect
11 W7005813 Input Supply On/Off Switch
12 W7004913 Shielding Gas Hose Assembly (not supplied)
13 W7005806 Fan Assembly
14 W7003010 Input Rectifier (Shown mounted to PCB Power, item 1)
15 704461 Dinse Plug Male 50mm 2 (not shown)
Table 6-1
6.02 TIG Torch W4014604 (where supplied)

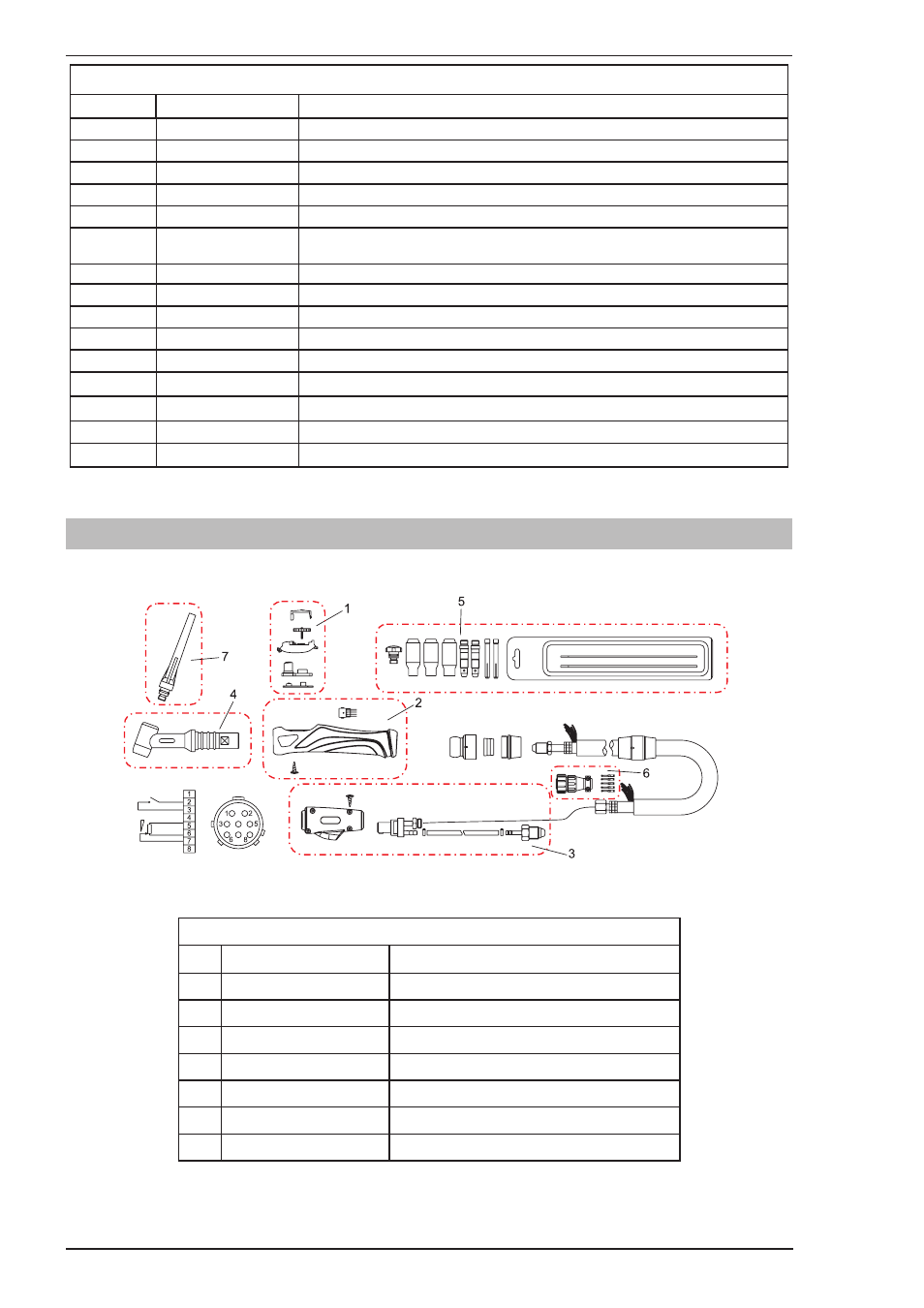

TIG Torch W4014604 spare parts diagram
A-11669
Figure 6-2
TIG TORCH SPARE PARTS
ITEM PART NO. DESCRIPTION
1 W7005900 Trigger assembly for 26F torch
2 W7005901 Handle assembly for 26F torch
3 W7005902 Dinse 50mm for 26F torch
4 W7005903 Flex head for 26F torch
5 BGSAK2 Tig accessory Kit
6 UOA706900 Cable Plug 8 pin
7 BG57Y02/R Back Cap (Long)
Table 6-2
