TRANSARC 130i
KEY SPARE PARTS 6-2 Manual 0-5283
TRANSARC 130i POWER SOURCE SPARE PARTS
ITEM PART NUMBER DESCRIPTION
1 W7005808 PCB Power
2 W7005807 PCB Control 130i
3 W7005809 PCB Front Panel (Display) 130i
4 W7005810 Knob Control
5 W7003019 Dinse Socket 25mm 2
6 W7005811
Control Socket 8 pin (Note that 8 pin control plug is part number
UOA706900)
7 W7005812 Shielding Gas Outlet 5/8-18
8 W7005814 CT Output
9 W7004908 Shielding Gas Solenoid Valve Assembly
10 W7005605 Shielding Gas Inlet Quick Connect
11 W7005813 Input Supply On/Off Switch
12 W7004913 Shielding Gas Hose Assembly (not supplied)
13 W7003004 Fan Assembly
14 W7003010 Input Rectifier (Shown mounted to PCB Power, item 1)
15 705152 Dinse Plug Male 25mm 2 (not shown)
Table 6-1
6.02 TIG Torch W4013804 (where supplied)

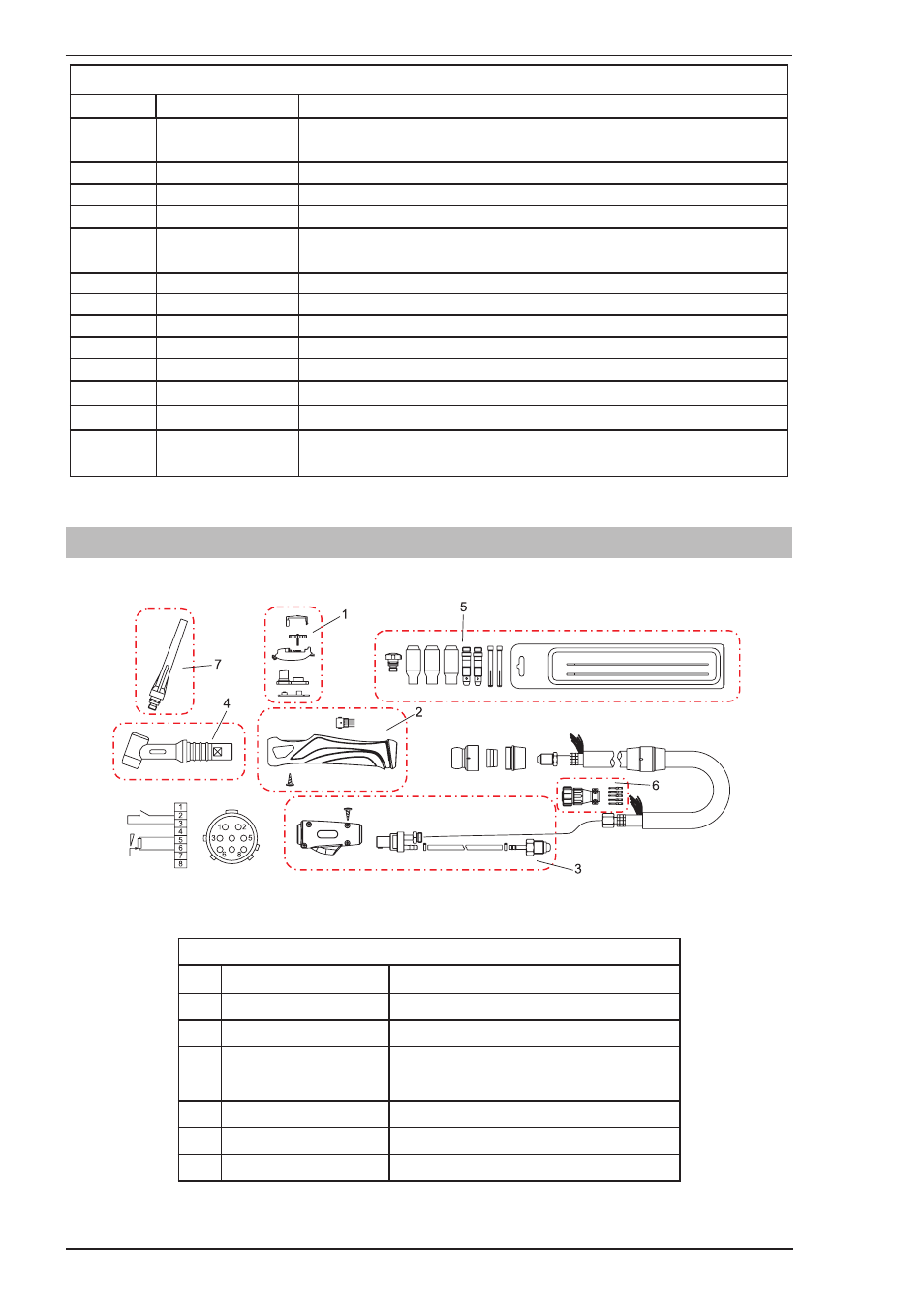

TIG Torch W4013804 spare parts diagram
A-11669
Figure 6-2
TIG TORCH SPARE PARTS
ITEM PART NO. DESCRIPTION
1 W7005900 Trigger assembly for 26F torch 17F torch
2 W7006100 Handle assembly for 17F torch
3 W7006101 Dinse 25mm for 17F torch
4 W7006102 Flex head for 17F torch
5 BGSAK2 Tig accessory Kit
6 UOA706900 Cable Plug 8 pin
7 BG57Y02/R Back Cap (Long)
Table 6-2
