3.08 Welding Gun Compatibility And Installation
Refer to Figure 3-3
The Ultrafeed VA 2000 wire feeder is designed to be used
with most welding guns. In some cases, a special adapter
may be required. Refer to Appendix 2 for information on
MIG gun adapter kits.
To install the welding gun, simply loosen the gun clamp
Allen set screw and insert the welding gun into the
feedhead until it stops. Tighten the gun clamp Allen set
screw and connect the welding gun control wires to the
gun switch receptacle.
NOTE
Before inserting the welding gun into the
feedhead, make sure the gun clamp does not
extend into the feedhead; otherwise, the
welding gun cannot be properly inserted.
NOTE
Check for gas leaks. If leaking gas, gun is not
all the way into the feedhead.
Art # A-07266
Gun Clamp Knob
Gun Adapter

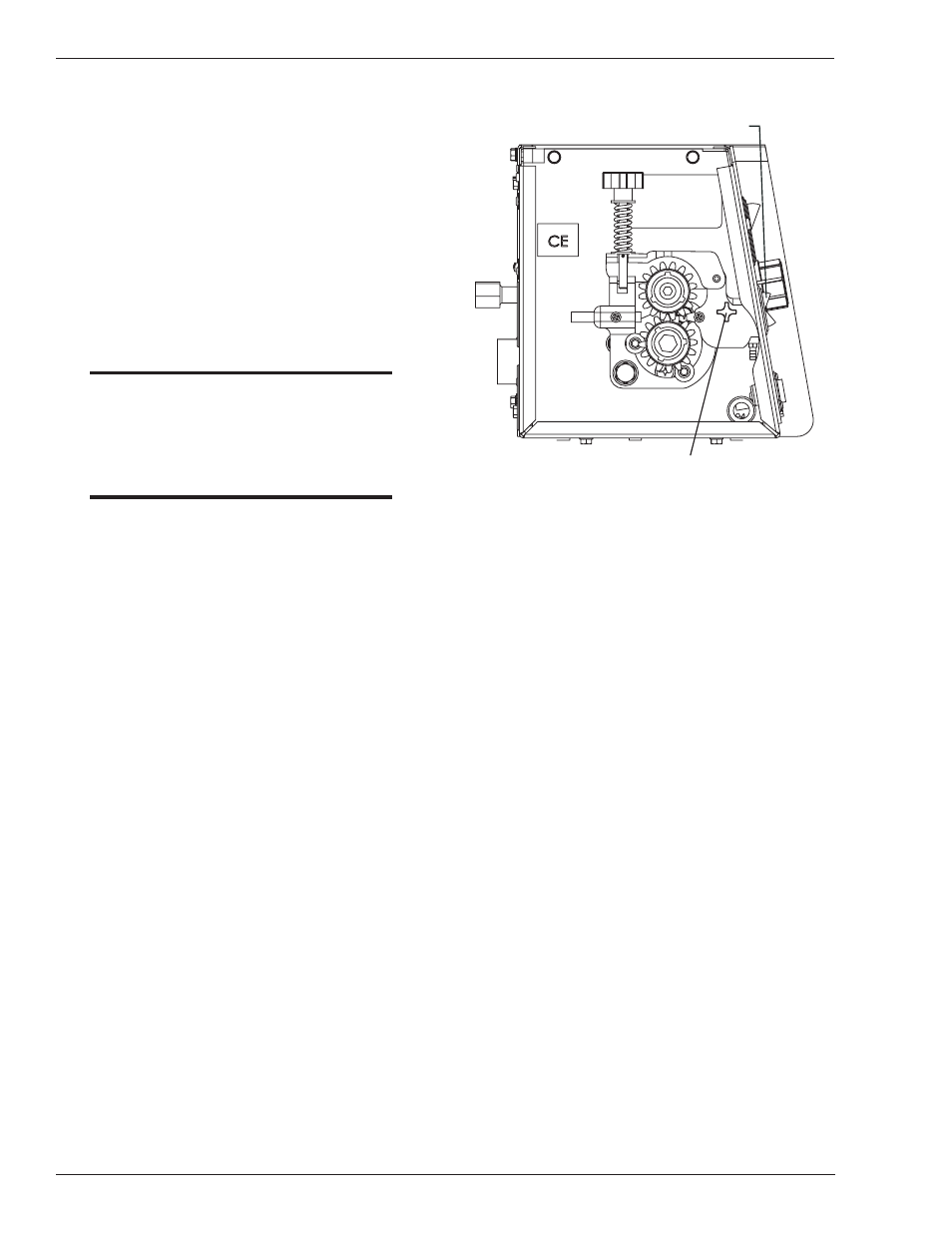

Figure 3-3: Welding Gun Installation
