E. Switch the LOCAL/REMOTE switch inside the
wire feed compartment to LOCAL to use the
Power Sources Wirespeed and Voltage controls.
F. Switch the MIG GUN/SPOOL GUN switch inside
the wire feed compartment to MIG GUN.
WARNING
Before connecting the work clamp to the work make sure the Electricity Supply is switched OFF.
CAUTION
Loose welding terminal connections can cause overheating and result in the male plug being fused in the
terminal.
Remove any packaging material prior to use. Do not block the air vents at the front or rear of the Welding
Power Source.
Work Lead
Positive Welding
Terminal (+)
Negative Welding
Terminal (-)
MIG Polarity Lead
Art # A-11245
MIG Gun
8 pin plug

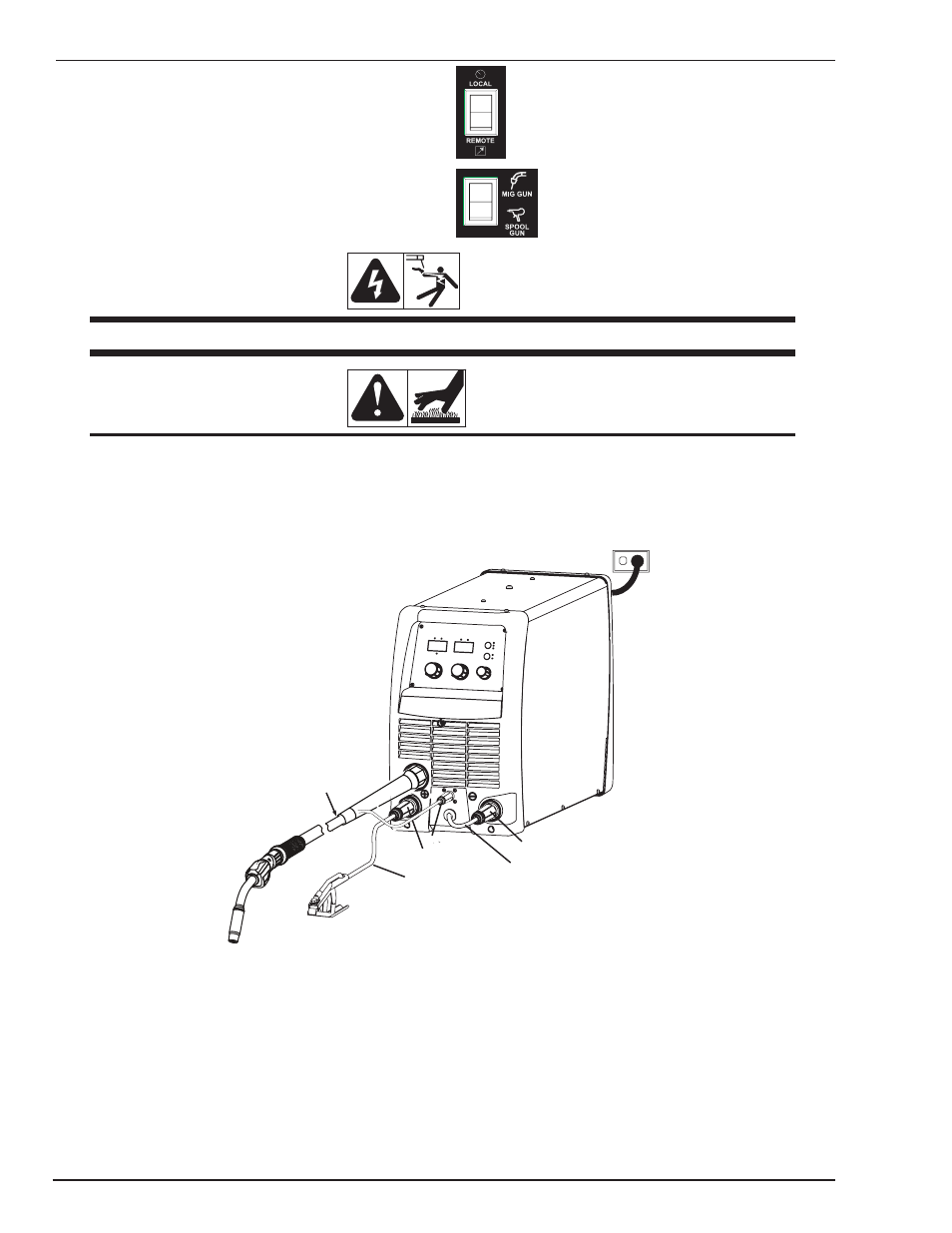

Figure 3-20: Setup for MIG Welding with Gasless MIG Wire
