Fabricator 181i
Manual 0-51 91 3-13 INSTALLATION, OPERATION AND SETUP
20. MIG Gun & Spool Gun Switch
The MIG Gun / Spool Gun switch is used to switch welding mode between MIG Gun functionality and Spool
Gun functionality
21. 10A Fuse
The 10A fuse is used to protect the spool gun motor.
3.11 Attaching the Tweco Fusion 180A Gun
Fit the Tweco Fusion MIG Gun to the Power Source by pushing the MIG Gun connector into the MIG Gun Adaptor
and tightening the Locking Screw to secure the MIG Gun in the MIG Gun Adapter.
Connect the 8 pin plug by aligning the keyway then inserting the 8 pin plug into the 8 pin socket and rotate threaded
collar fully clockwise to lock the plug into position.
Art # A-10356_AB
MIG Gun Adaptor
MIG Gun Connector
MIG Gun Connector
Thumb Screw
8 pin socket
8 pin plug

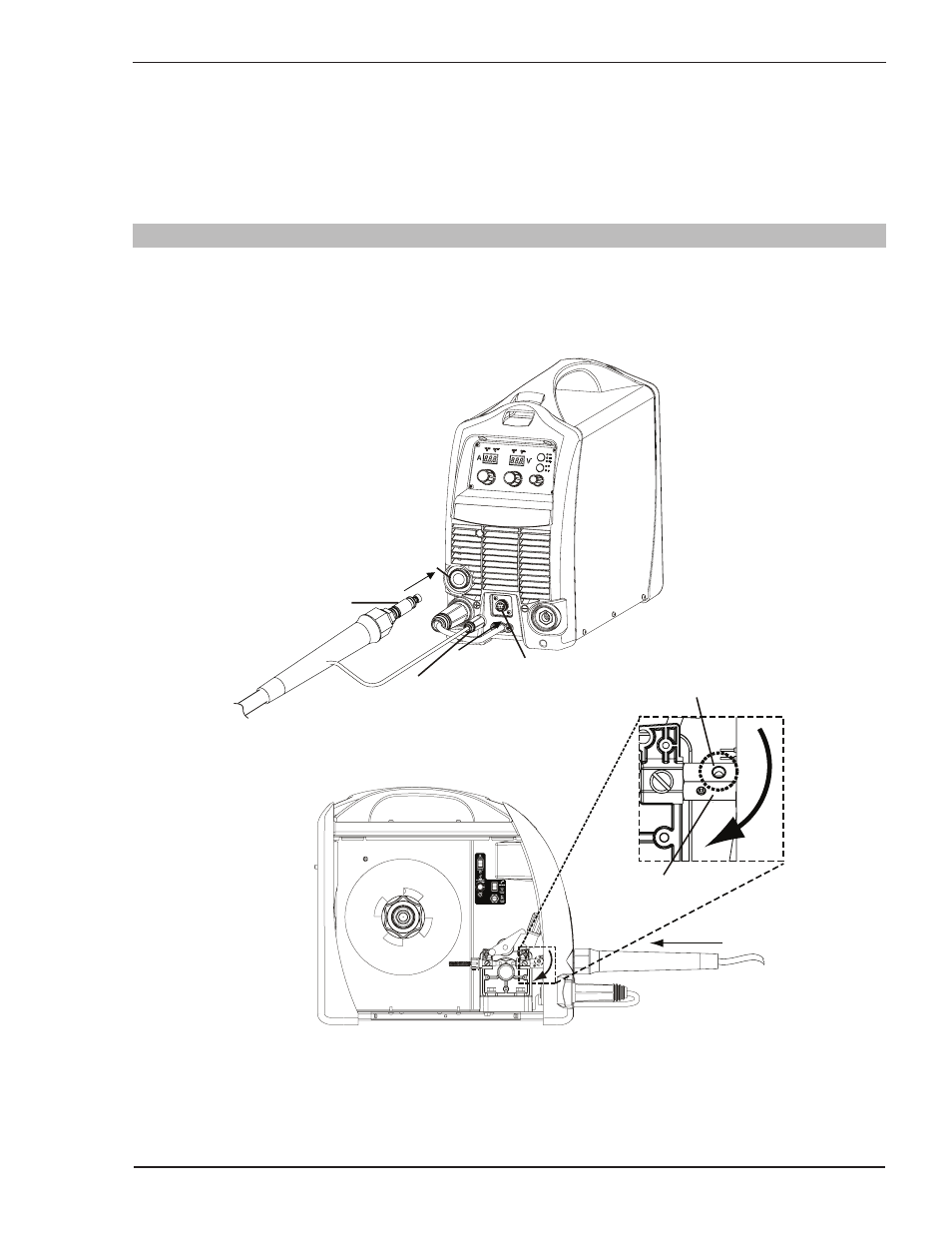

Figure 3-8: Attaching MIG Gun
