INTRODUCTION 2-2 Manual 0-5191
2.06 User Responsibility
This equipment will perform as per the information contained herein when installed, operated, maintained and
repaired in accordance with the instructions provided. This equipment must be checked periodically. Defective
equipment (including welding leads) should not be used. Parts that are broken, missing, plainly worn, distorted
or contaminated, should be replaced immediately. Should such repairs or replacements become necessary, it is
recommended that such repairs be carried out by appropriately qualified persons approved by Thermal Arc. Advice
in this regard can be obtained by contacting an Accredited Thermal Arc Distributor.
This equipment or any of its parts should not be altered from standard specification without prior written approval
of Thermal Arc. The user of this equipment shall have the sole responsibility for any malfunction which results from
improper use or unauthorized modification from standard specification, faulty maintenance, damage or improper
repair by anyone other than appropriately qualified persons approved by Thermal Arc.

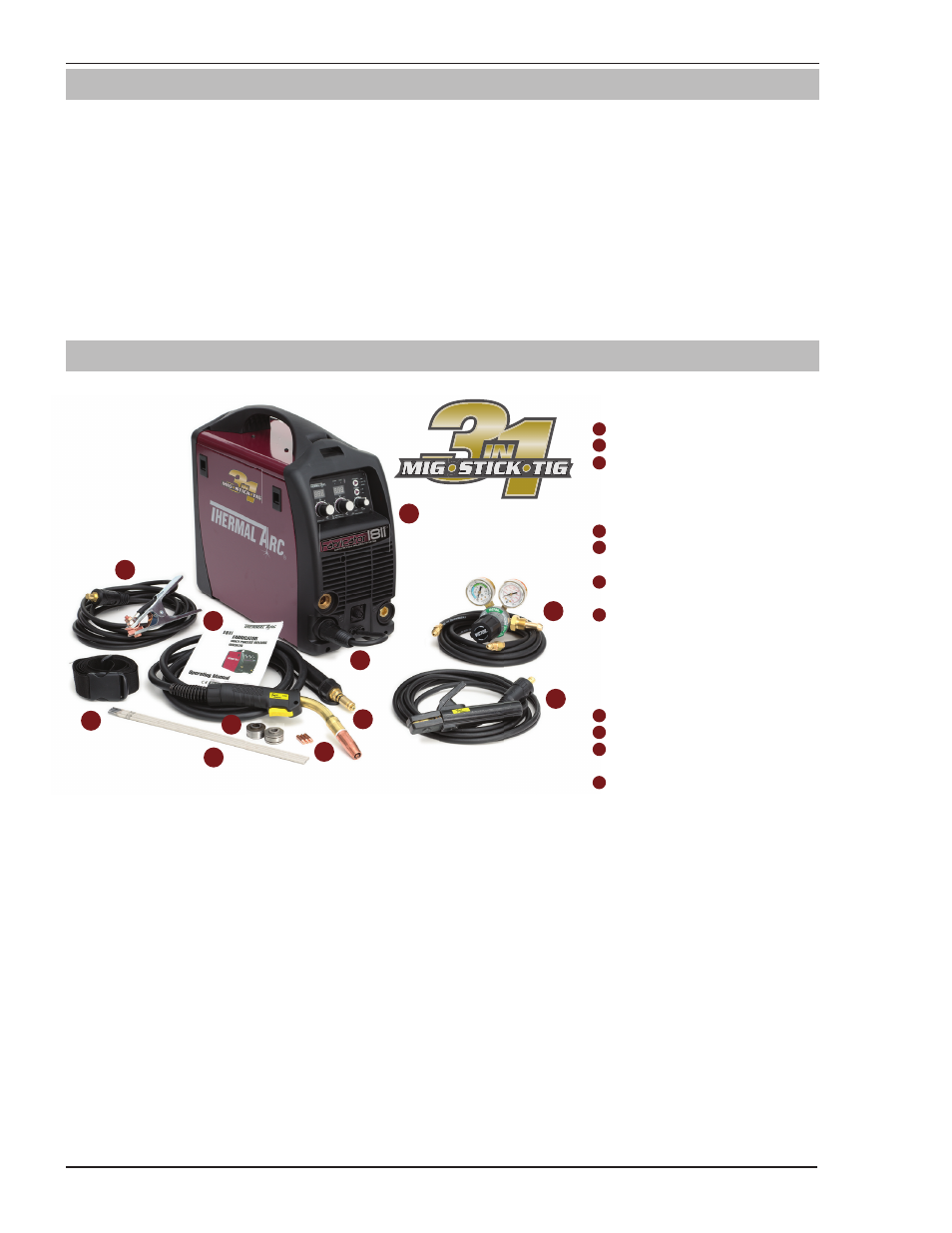

2.07 Fabricator 181i Portable System Package (Part No. W1003181)
1
1
2
3
4
5
6
7
8
9
10
11
4
5
10
2
3
8
11
6
9
7
Comes Complete with:
Fabricator 181i Power Supply
12ft. Tweco Fusion 180 amp MIG Gun
Velocity Contact Tips (1 each):
• .023 (.6mm)
• .030 (.8mm) Fitted
• .035 (.9mm)
Victor Argon Regulator/Gauge & Hose
Tweco WeldSkill 200 Amp electrode
holder with 13ft. (4m) lead
Tweco WeldSkill 200 Amp ground
clamp with 10ft. (3m) lead
Drive Rolls:
• .023”-.030” (0.6mm-0.8mm)
V Groove Fitted
• .023”-.035” (0.6mm-0.9mm) V Groove
• .030”-.035” (0.8mm-0.9mm) for flux
cored wire
4 general purpose stick electrodes (E6013)
Operator’s Manual & Set-up DVD
9ft.(2.75m) Power Cord and NEMA
6-50P 230V AC Plug
Shoulder Strap
