ULTRA-CUT 200 XT
3-2 INSTALLATION Manual 0-5273

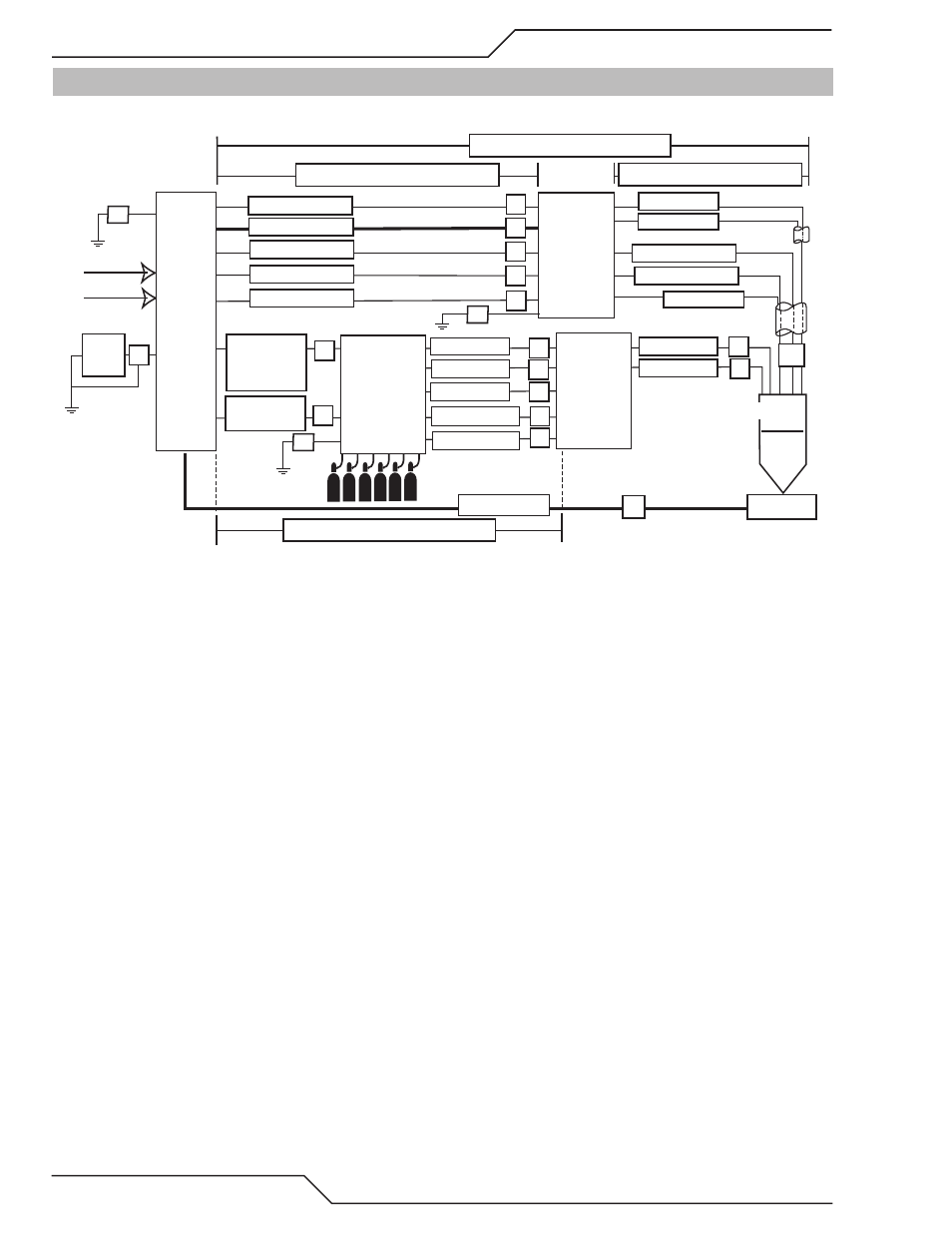

3.02 System Layout
Refer to section 3.04 for ground connections and ground cables.
Primary power
CNC
Remote
Arc
Starter
Art # A-11941
Torch
Coolant Supply
Coolant Return
Control Cable
Pilot Return
Coolant Supply
Coolant Return
Plasma Gas
Shield Gas
Fiber
Optic
Cable
Control
Cable
Gas Control
Module
Ultra Cut
XT Power
Supply
Torch
Valve
Assembly
Positioning Tube
Plasma Gas
Preflow Gas
Water Shield
Shield
Shield Gas
Negative
Pilot Return
Control Cable
100’ / 30.5 m Maximum Length 125’ / 38.1 m Maximum Length
175’ / 53.3 m Maximum Length
Shield
H
Q
R
T
S
Work
F1
A
B
C
D
E
P
K
L
I
J
G
175’ / 53.3 m Maximum Length
Work Cable O
F1
F
