INSTALLATION 3-4 Manual 0-2912
Automated Gas Console
O
2
Supply Line N2 Supply Line Shield Gas Line
To Torch
Pre-Flow Gas Line
To Torch
3X1 Cable From
Power Supply
Plasma Gas Line
To Torch
Ground Stud
Connection
Art # A-03948

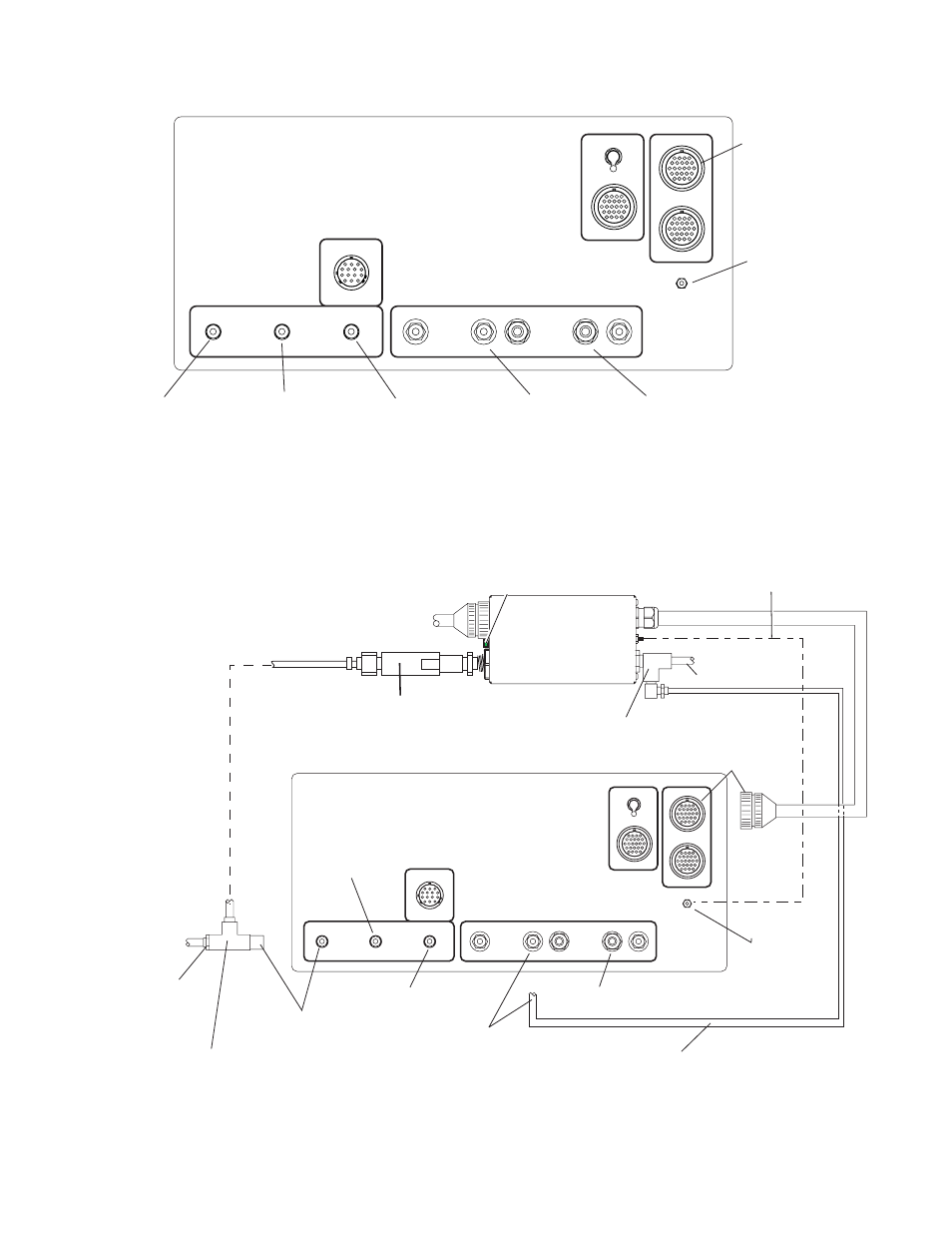

Connection Diagram for Original Automated Gas Console
Automated Gas Console
Connect to O2
Supply Line Fitting
N2 Supply Line
Shield Gas Line
To Torch
Pre-Flow Gas Line
To Torch
Connect to Plasma
Gas Line Fitting
Connect to
Stud Connection
Art # A-04450
Connect To 3x1
Connector On
Gas Console
Pre-Charge
Unit
O2 Supply Line
O2 Supply Hose
To Gas Console
3X1 Cable From Power Supply
Plasma Gas Line
To Torch
Ground Stud Connection
Plasma Outlet
Tee Assembly
Tee Fitting
Original Plasma
Gas Line Fitting
Flashback Arrestor
Green Light (Refer to Operation
Section of Torch Manual)
Connection Diagram for Automated Gas Console after pre-Charge Unit Installation.
