Tweco SC-6 Standoff Control - Manual (Page 3)

3
SC-6 STANDOFF CONTROL INSTALLATION 0-2454
Logic +
(95)
Logic -
(94)
Signal +
(93)
Signal -
(96)
SC-6 Voltage Divider
PC Board
J24
Receptacle

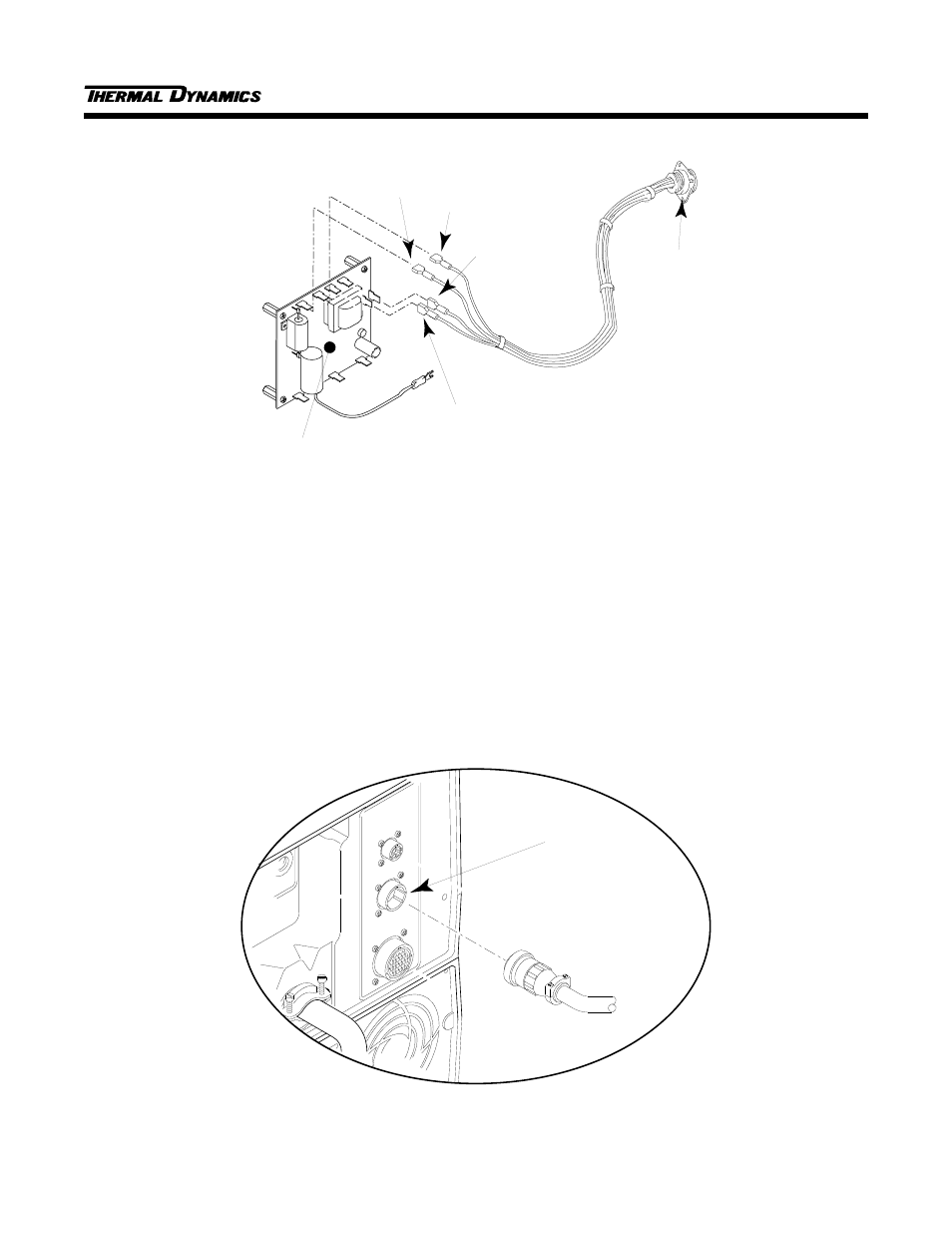

Figure 3 - J24 Wiring Harness Assembly
2. Route the wire harness to the rear of the voltage selection plugs. and through the notch in the divider panel.
3. Continue routing the wire harness around the end of the Analog PCB Assembly to the J24 receptacle
location in the rear panel.
4. Using a punch, knock out the rear panel mounting hole for the J24 receptacle and install the receptacle on
the other end of the wire harness to the rear panel with the hardware provided.
STANDOFF CONTROL J24
REMOTE CONTROL J11
HIGH FLOW WATER SHIELD
J22
MUM PRESSURE
J24 Connector
At Rear Panel
Of Control Module
Figure 4 - Installation of J24
