Manual 0-2251 103 PARTS LISTS

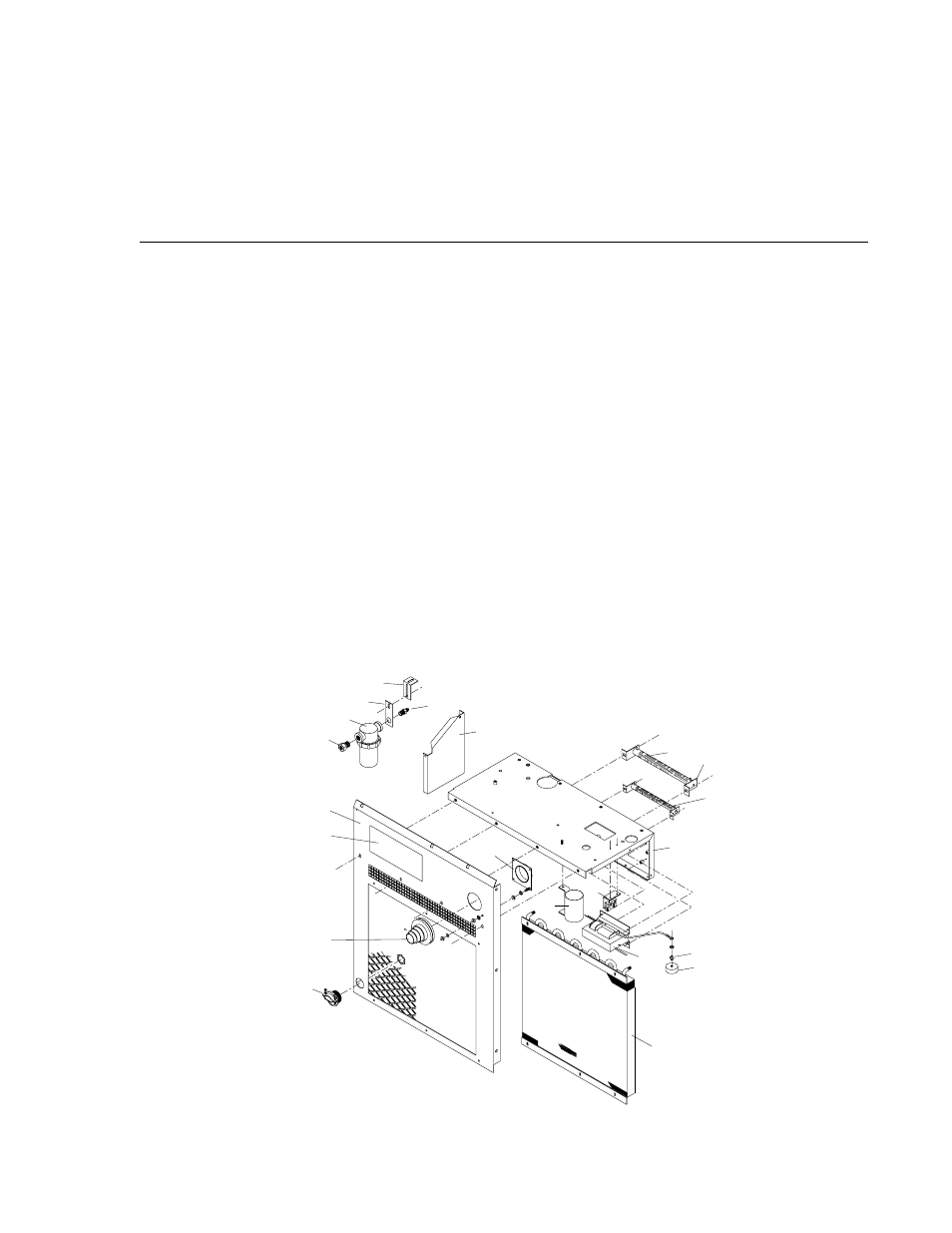

6.4 FRONT PANEL/CHASSIS COMPONENTS
Item Qty. Catalog Description Reference
No. Number Designator
1 1 8-3305 Front Panel (with Overlay)
2 1 8-3256 Front Panel Overlay
3 1 8-6307 Cord Grip (Strain Relief)
4 1 9-5771 Torch Leads Boot
5 1 8-1347 Radiator
6 1 8-6141 Male Union Fitting - #6 JIC x 3/8 NPT
7 1 8-4276 Coolant Filter
8 1 8-3313 Inner Coolant Filter Support
9 1 8-5577 Lower Coolant Filter Support
10 1 8-1251 Straight Adaptor Fitting - #8 JIC to 3/8 NPT
11 1 8-6310 Access Divider Panel
12 1 8-6144 Horizontal Chassis Panel
13 1 8-3314 Torch Leads Shield Assembly
14 1 9-3431 Resistor - 8 ohm R13
15 1 8-4234 Resistor Mounting Bracket Kit
16 1 8-1169 Resistor - 150 ohms, 100W
17 1 9-5769 HF Transformer Assembly T3
18 1 8-4281 Male Adaptor
19 1 9-5770 HF Disk Capacitor
20 1 8-3262 Spark Gap Assembly
21 1 8-4282 HF Coil Assembly L3
1
2
4
3
5
6
7
8
9
10
11
12 13
14
15
16
19
18
17
20
21
A-00968
