INTRODUCTION & DESCRIPTION 2-2 Manual 0-2251
2.2 POWER SUPPLY SPECIFICATIONS
Voltage Frequency Phase Amperage
200/220/230 50 or 60 Hz 3 84/76/73
380/415/460 50 or 60 Hz 3 44/40/36
500/575 50 or 60 Hz 3 34/29
Table 3-A, Section 3.4 contains information on power
input, current ratings, circuit protection, and wire sizes.
Continuously adjustable from 50 to 150 amps
100% duty cycle.
Approximate Shipping Weight - 678 lbs (308 kg)
Input Power

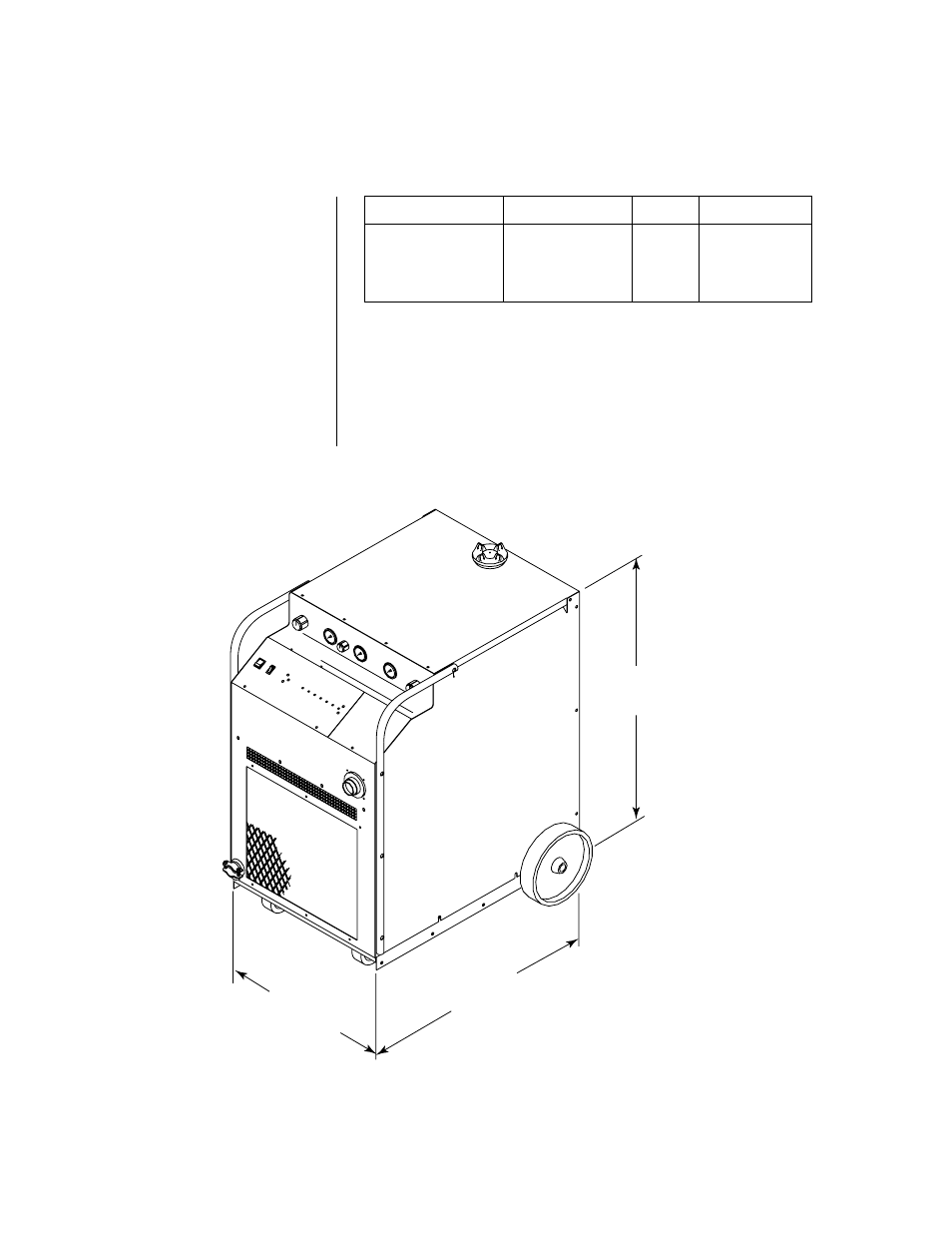

Figure 2-B Power Supply Dimensions
Output Power
Duty Cycle
Shipping Weight
Enclosure Only:
Fully Assembled:
Width:
28.50 in (0.72 m)
Height: 43.38 in (1.10 m)
Depth: 43.75 in (1.11 m)
38.38 in
(0.98 m)
34.25 in
(0.87 m)
24.12 in
(0.61 m)
