MAGNUM 620E PUMP OPERATION / MAINTENANCE MANUAL PAGE 5
2 OPTIONS
2.1 FLUID PORT CONNECTION OPTIONS
NOTE 1: Use O-ring to seal stainless steel or other rigid plumbing.

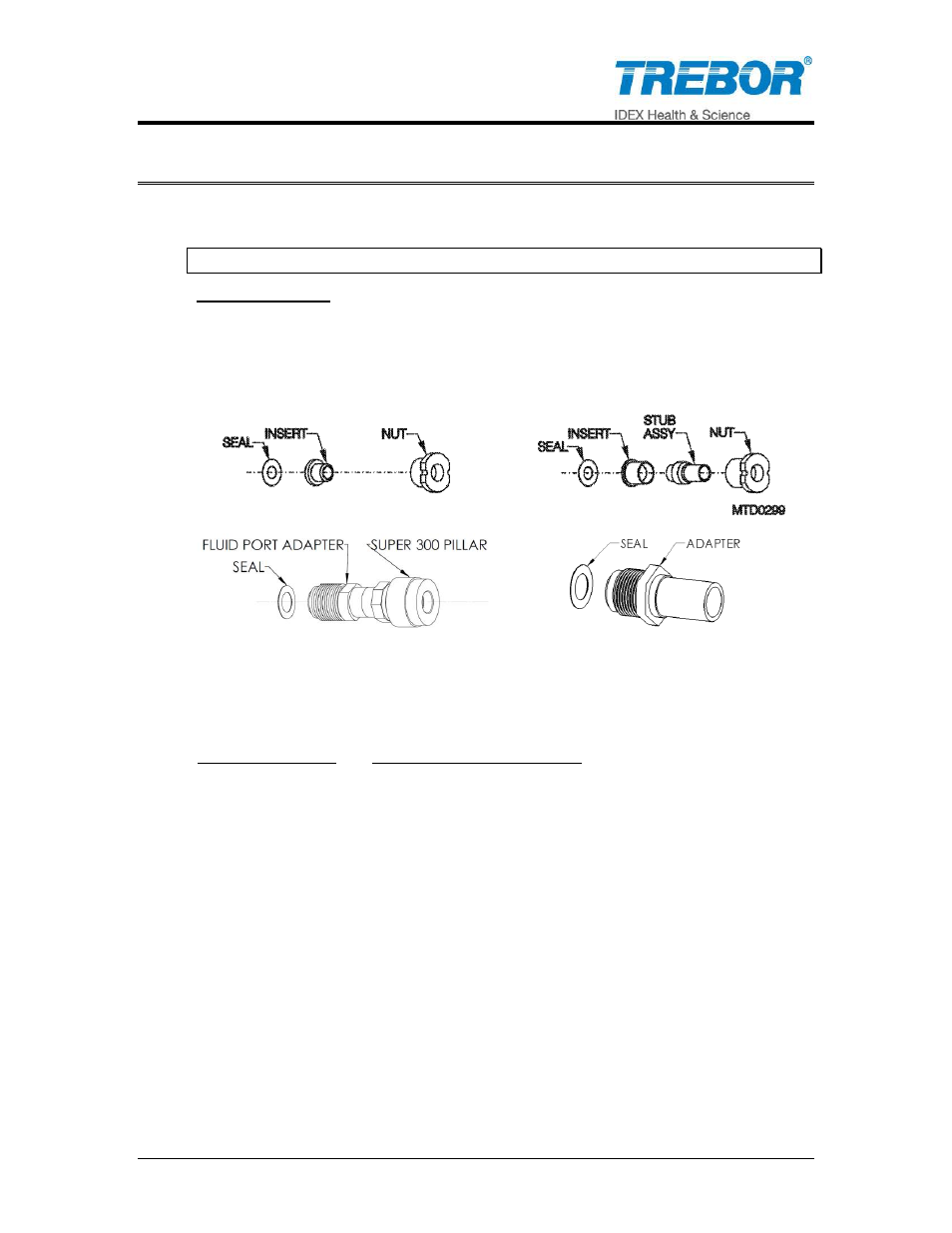

Available Options
A)
Flare style tube adapter….1/2” and 3/4"
B) PFA tube stub out………...3/4"
C) Pillar Super 300…………..3/4” OR 1”
D) PFA Weldable pipe……….3/4"
Figure 2-1
2.2 FLUID FITTINGS / SURGE SUPPRESSOR HOOK-UP
Surge Suppressor Assembled Height: IN (CM)
MODEL SS40 12.63 (32.08)
MODEL SS85 14.97 (38.02)
A) B)
C) D)
