MAGNUM 620E PUMP OPERATION / MAINTENANCE MANUAL PAGE 21
4.7 DISASSEMBLY
4.7.a Head removal

Loosen and remove all probes (if installed) and fluid and air fittings from
heads.

Loosen and remove pump from mounting base.

Immerse or flush the pump assembly using DI water and a neutralizing agent
if required.

Install mounting fittings in pump adapter ports (figure 4-1) and lock body into
bench mounting fixture. NOTE: Securely attach mounting fixture to work
surface using hardware provided.

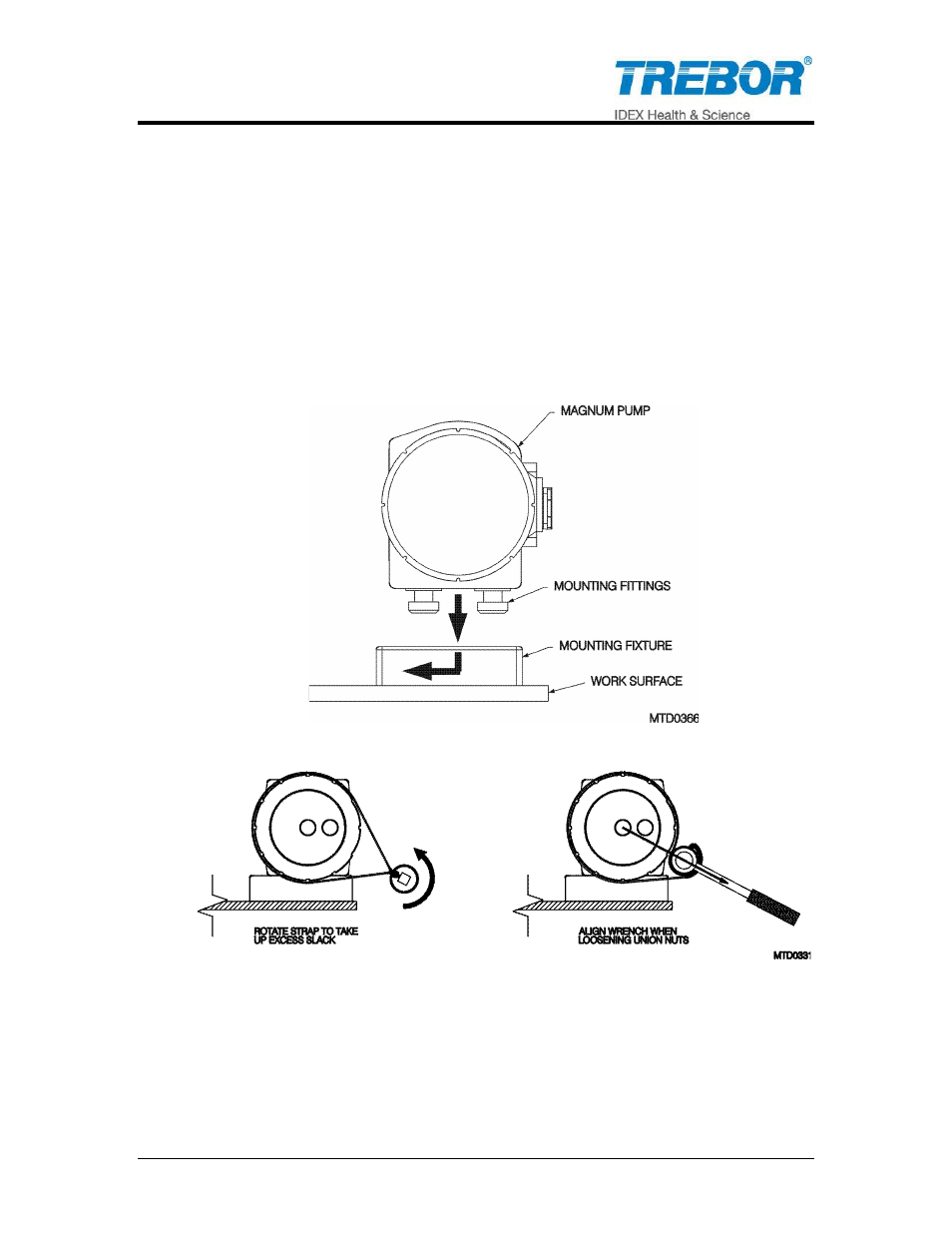

Figure 4-1
Figure 4-2

Using strap wrench, turn head counter-clockwise to loosen (figure 4-2).

Remove heads and check diaphragms for wear or damage.

To remove diaphragms, it may be necessary to slit diaphragm (in the center)
with a sharp knife and pull the diaphragms from the seal grooves. (Do not
pry on diaphragm seal groove, as this will damage the sealing surface.)
