PAGE 10 MAGNUM 620E PUMP OPERATION / MAINTENANCE MANUAL
2.5 LEAK PROBE OPTION
Leak probes use fiber optic cable (Acrylic Optic Cable: 1mm core) attached to an
optic sensor that transmits light in order to detect the presence of fluid within the
air chambers.

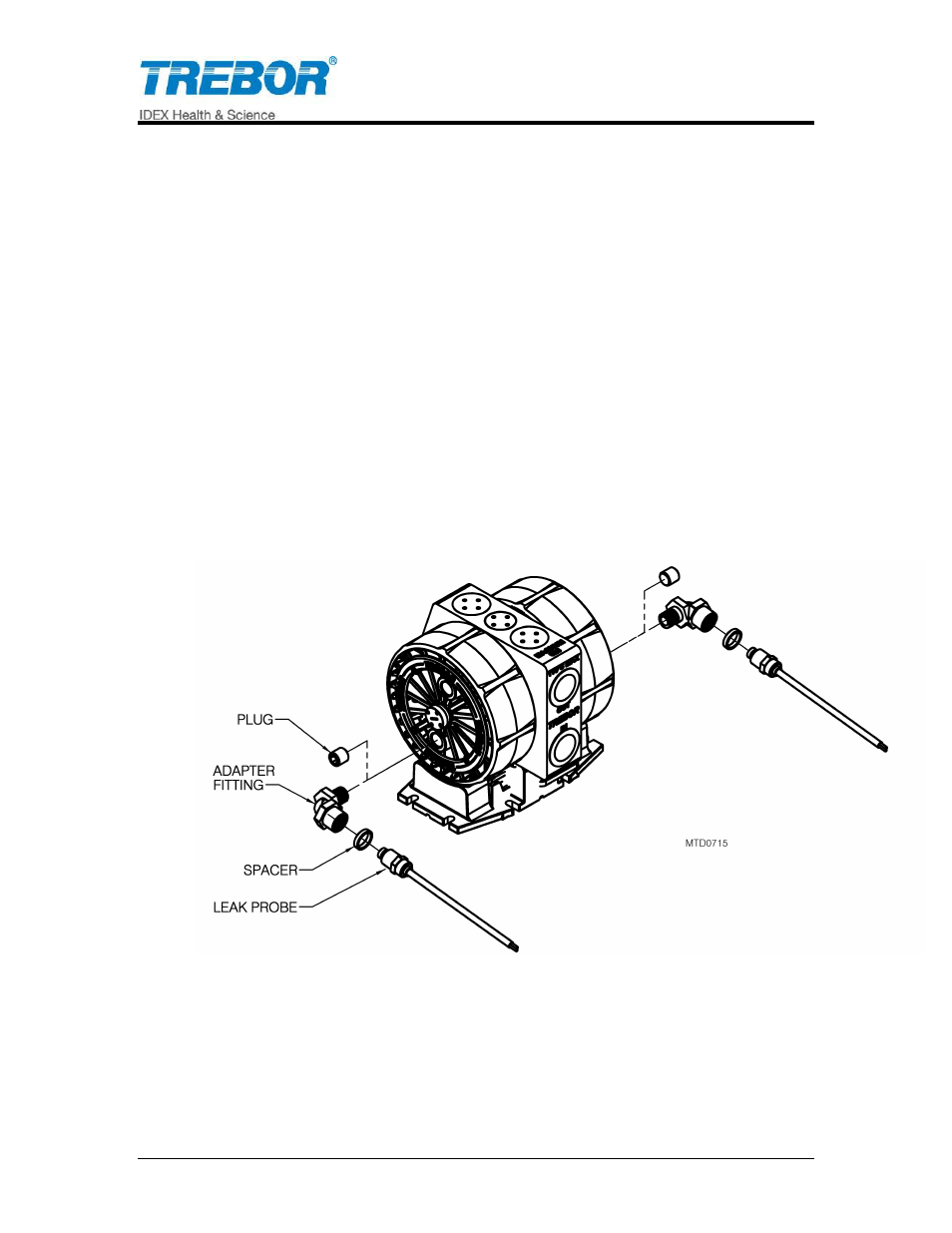

2.5.a Installation

Remove plugs from lower ports (or existing leak detection if applicable)

Install probe adapter fitting into lower leak sensor port (minimum of 4
turns)

Arrange adapter fitting so that the leak sensor port is positioned in a
downward angle (as shown in Figure 2-2). Note: If adapter fitting is in the
vertical position leak detection may not occur.

Thread probe fitting and spacer into adapter fitting and tighten until
spacer is flush with adapter fitting face (as shown in Figure 2-3).

Connect fiber optic cable to optic amplifier (NOTE: Limit bends in fiber
optic cable to 1” radius minimum to help ensure optimum signal strength.)
Fiber optic cable can be cut to desired length using the cable cutter
provided.
Figure 2-6
