SINGLE WIRED CONNECTIONS
Single-wired connections are the most common. These are made
between one pair of the Voice2 input terminals and one power
amplifier output channel as shown in Figure 11.
To make single-wired connections:
1. Connect one pair of loudspeaker wires to the desired Voice2
input terminals. Then connect the same pair of loudspeaker
wires to the desired power amplifier output channel. Use the
high frequency input terminals..
2. Make sure that all terminals are firmly hand-tightened.

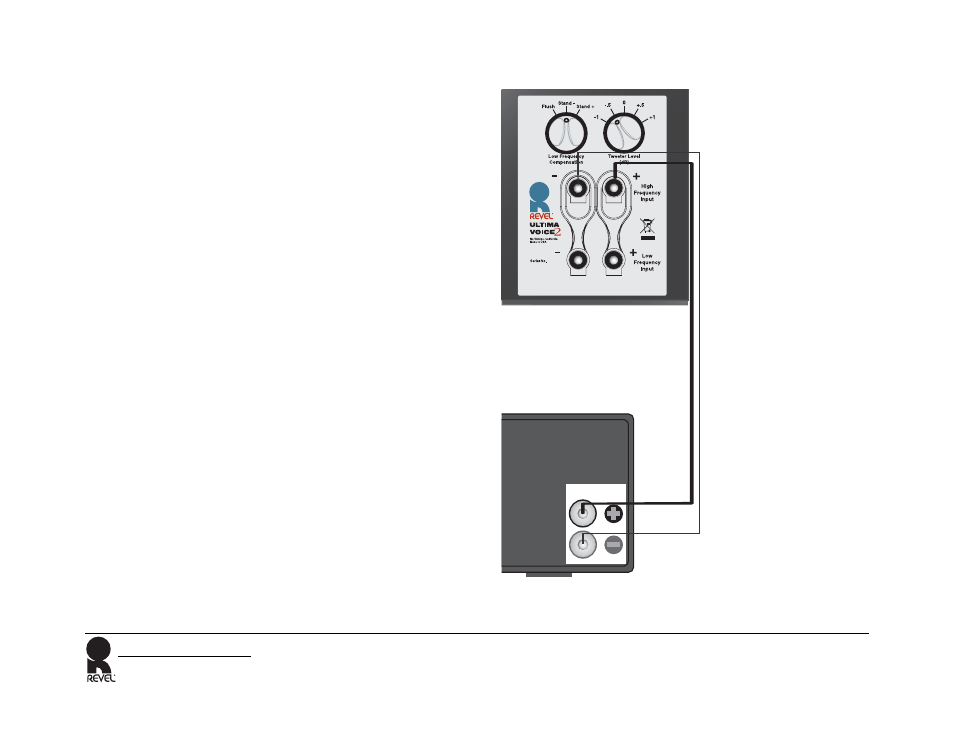

Figure 11: Single-Wired Connections
OUTPUT
POWER
AMPLIFIER
Input Panel
Voice2
