Voice2 Combination Spikes/Glides
When the Voice2 is shipped, reversible spikes/glides are located
in the left end pad. For optimal sound quality, they can be
positioned in the cast feet on the bottom of the cradle assembly.
The combination spike/glides allow for the achievement of a
proper tilt angle when the Voice2 is placed on top of a video
monitor, or on top of a shelf. For best results, the Voice 2 should
be tilted so that the front of the speaker is facing directly towards
the listener’s ears. The spikes/glides should be positioned so
that the smooth “glide” end is exposed to protect tile,
hardwood floors and furniture.
To install and position the Combination spikes/glides:
1. Place the speaker on its side on a soft towel or carpeted floor.
2. Select the appropriate end of the spikes/glides depending on
your surface. If the speaker is to be used on a hardwood floor
or smooth surface use the glide end of the spike.
3. Locate the four feet and threaded inserts on the bottom of the
cradle feet.
4. Rotate the first spike counterclockwise, spike end first, to
attach it to the threaded insert.
5. Repeat step 4 with each of the other crade feet spikes and
threaded inserts. Make sure the spikes are evenly threaded to
achieve a level balance.
6. When all four spikes have been installed, stand the speaker
in the upright position. If needed, adjust the spikes to achieve
a level balance.

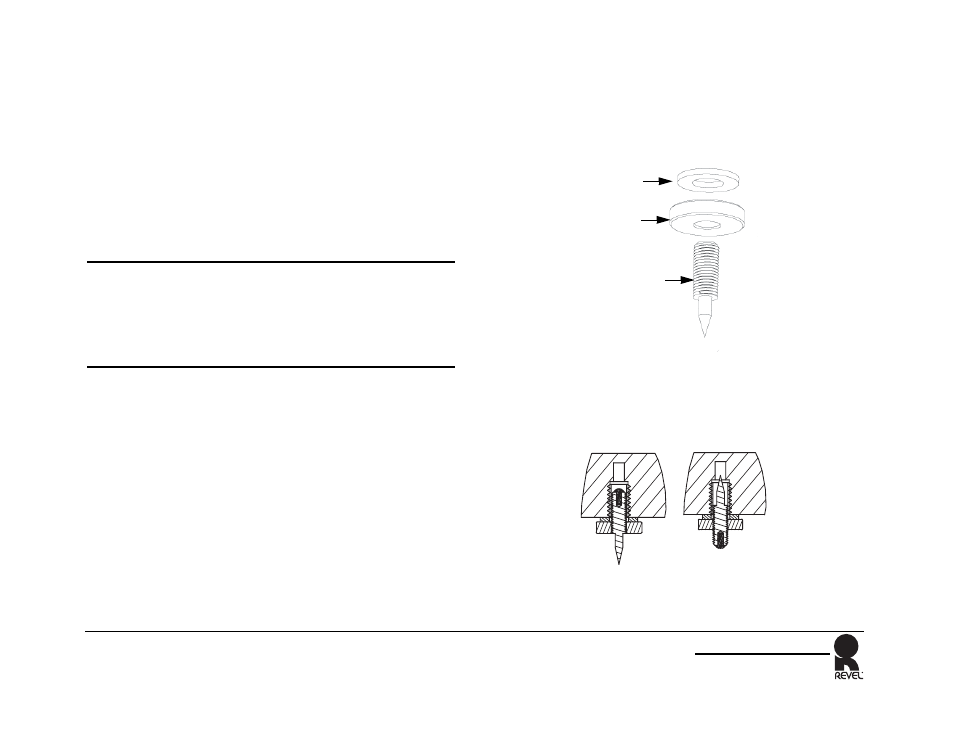

Figure 9: Combination Spike/Glide Components
Figure 10: Combination Spike/Glide Detail
Caution
When moving the Voice2, avoid dragging it across the floor or
cabinet. If the Voice2 is placed on a carpeted floor, the spikes
should be adjusted as shown on the left side of Figure 10 with
the sharp end protruding from the cabinet. If needed, follow
the instructions that begin below to adjust the spikes
Felt Washer
Locking Ring
Spike (Spike End Down)
Spike End Down Glide End Down
