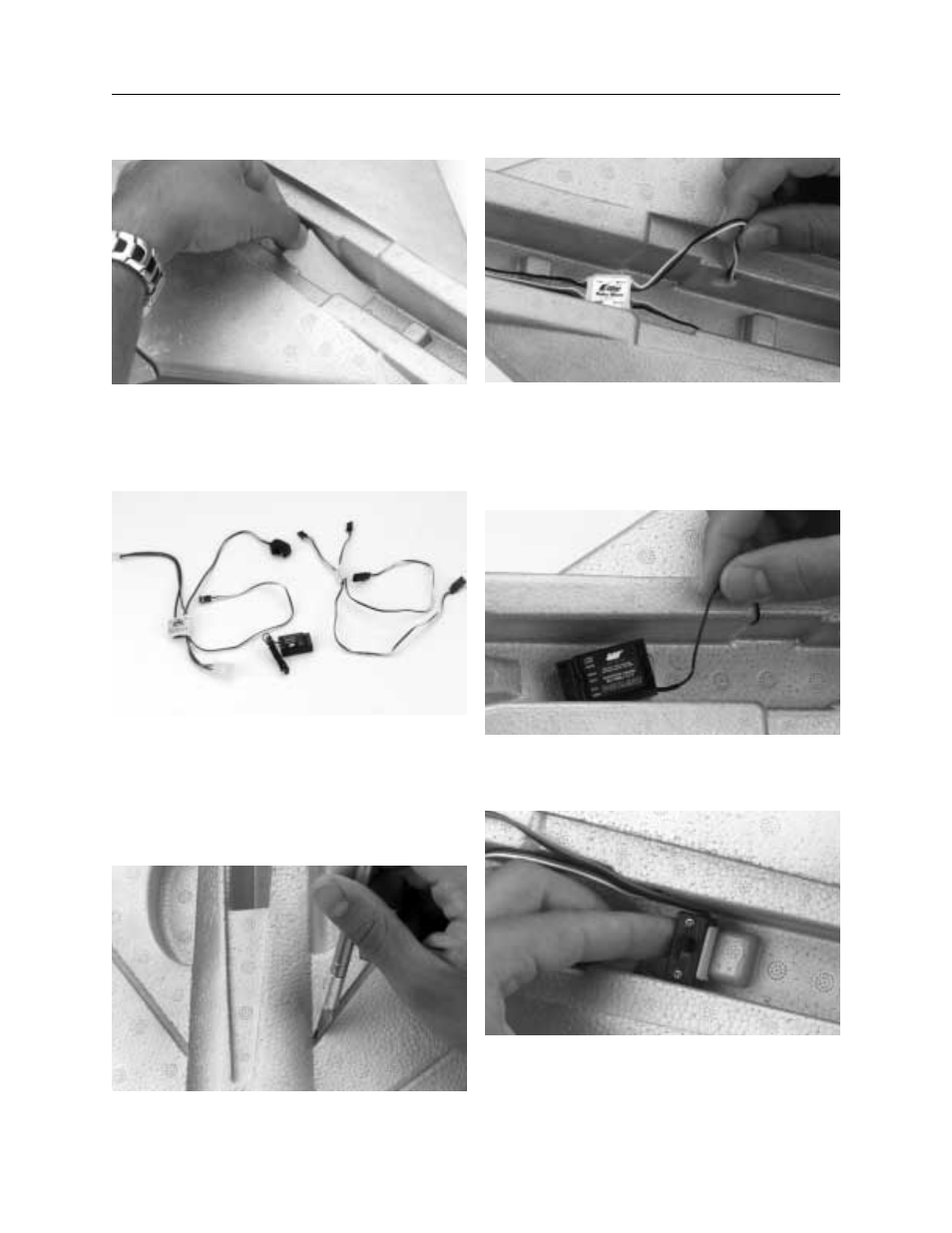

Step 1. Glue the Velcro ® strip to one side of the fuselage.
This will be used to secure the battery in the fuselage.
Step 2. Locate the receiver, speed controller and delta mixer.
Please refer to the instructions provided with the speed controller
and delta mixer for an outline of the installation steps and
drawings of wiring and hook-up schematics.
Step 3. Before connecting the speed controller and delta-mixer,
use a sharp hobby knife to carve two small tunnels at the bottom
of the wing for the delta mixer connectors to slip between the
fuselage and the wing. Connect the delta mixer to the receiver
at this time. Temporarily position them in the forward part of
the fuselage.
Step 4. Pass the delta mixer wires out through the fuselage
onto the wing, as shown in the picture below.
STEP 5. With the receiver in the forward part of the fuselage,
pass the antenna through an opening in the fuselage in a similar
manner as the delta-mixer. Note that both the delta mixer and the
receiver are mounted forward of the battery in the fuselage.
Double-sided servo tape can be used to secure both to the fuselage.
Step 6. Place a piece of double-sided tape on the On/Off switch
and position it in the AFT part or the fuselage behind the battery.
Installing the Speed Controller and Delta Mixer
