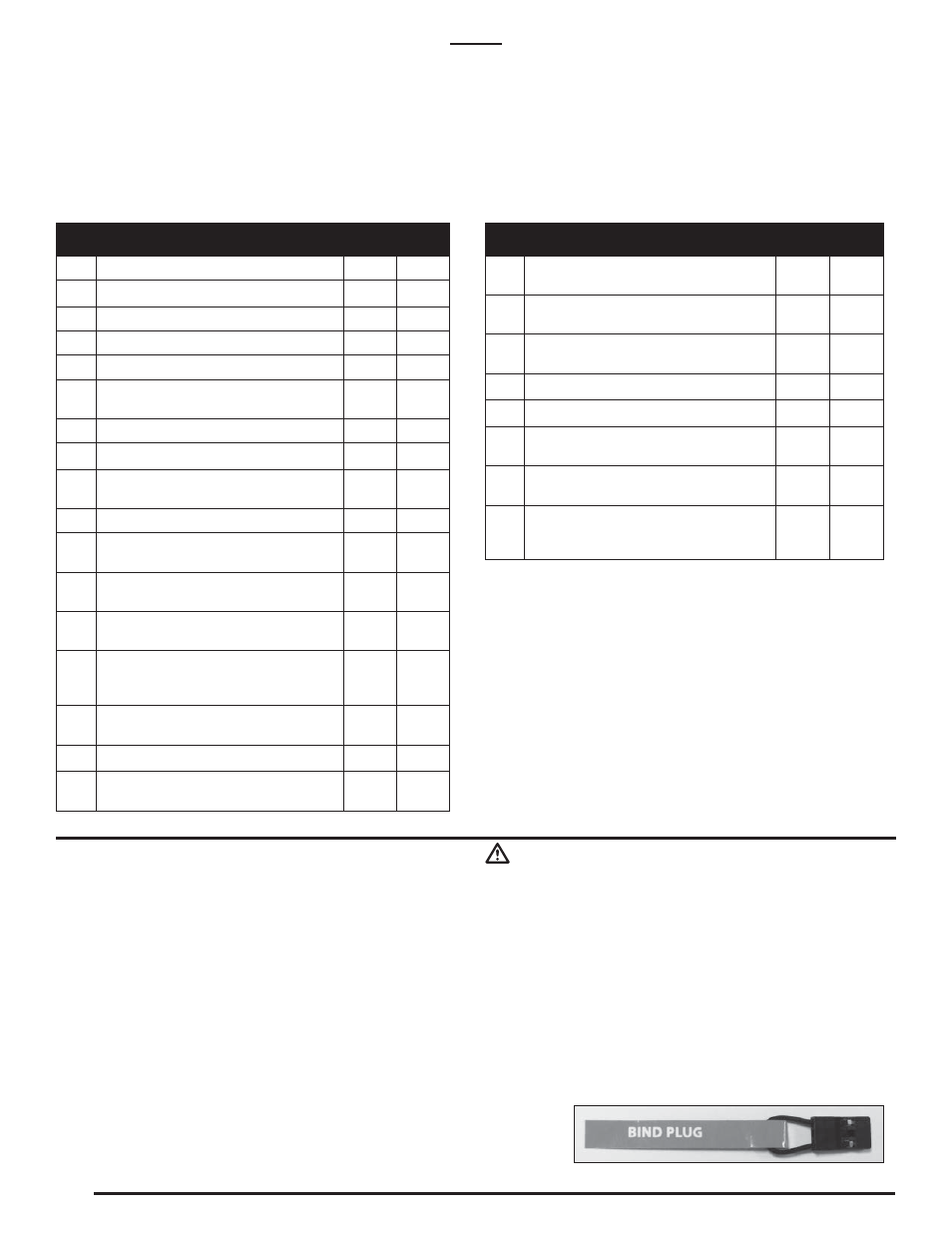

E-flite Carbon-Z Yak 54 PNP - Manual (Page 6)

EN
General Assembly and
Maintenance Tips
Note: This checklist is not a replacement for the
content included in this manual. Although you can use
it as a quick start guide, we strongly suggest reading
through this manual completely before proceeding.
First Flight Preparation
Activity BNF PNP
Remove and inspect contents ◆ ◆
Begin charging fl ight battery ◆ ◆
Assemble Carbon-Z Yak 54 ◆ ◆
Install the landing gear ◆ ◆
Install the stab ◆ ◆
Install rudder and elevator
push rod
◆ ◆
Install the wings ◆ ◆
Install receiver ◆
Connect servos to receiver or
Y-harness
◆ ◆
Install fully charged battery ◆ ◆
Bind the receiver to a
transmitter, if applicable
◆ ◆
Perform the Control Direction
Test with the transmitter
◆ ◆
Adjust fl ight controls and
transmitter
◆ ◆
Adjust battery for center of
gravity (CG) see installing the
fl ight battery.
◆ ◆
Perform a radio system
Range Check
◆ ◆
Find a safe and open fl ying fi eld ◆ ◆
Plan fl ight for fl ying fi eld
conditions
◆ ◆
Maintenance After Flying
Transmitter and Receiver Binding
Binding is connecting a transmitter to an aircraft
receiver wirelessly or electronically so the aircraft
receiver recognizes the transmitter GUID (Globally
Unique Identifier) code. Binding is necessary for
proper operation.
Note: The Carbon-Z Yak 54 BNF requires a DSM2 full
range (high power) transmitter. Any JR or Spektrum
DSM2 transmitter can bind to the Spektrum AR600
receiver. Due to the aerobatic nature of the Carbon-Z
Yak 54, we recommend using a transmitter with
adjustable exponential and dual rates. Please visit
www.bindnfly.com for a complete list of
compatible transmitters.
Note: When using a Futaba transmitter with a
Spektrum module,you may need to reverse the
throttle channel.
CAUTION: ALWAYS power on the transmitter
before connecting the flight battery to the aircraft
ESC. ALWAYS disconnect the flight battery from the
aircraft ESC before powering off the transmitter.
Additional Binding Information
Before each flight, power on the transmitter and wait
about 5 seconds before powering on the ESC. The
transmitter scans and secures two radio frequencies
for aircraft control. When the flight battery is
connected too quickly for the transmitter to make
frequency selection, the transmitter and receiver may
not connect. When there is no connection, leave the
transmitter powered on, disconnect the flight battery
then reconnect the flight battery to the receiver.
Activity BNF PNP
Disconnect fl ight battery from
ESC (Required for Safety)
◆ ◆
Turn off transmitter (Required
for Safety)
◆ ◆
Remove fl ight battery
from aircraft
◆ ◆
Recharge fl ight battery ◆ ◆
Clean aircraft (wipe off dirt, etc.) ◆ ◆
Repair or replace all
damaged parts
◆ ◆
Carefully disassemble and
store aircraft
◆ ◆
Store fl ight battery apart from
aircraft and monitor the
battery charge
◆ ◆
6
