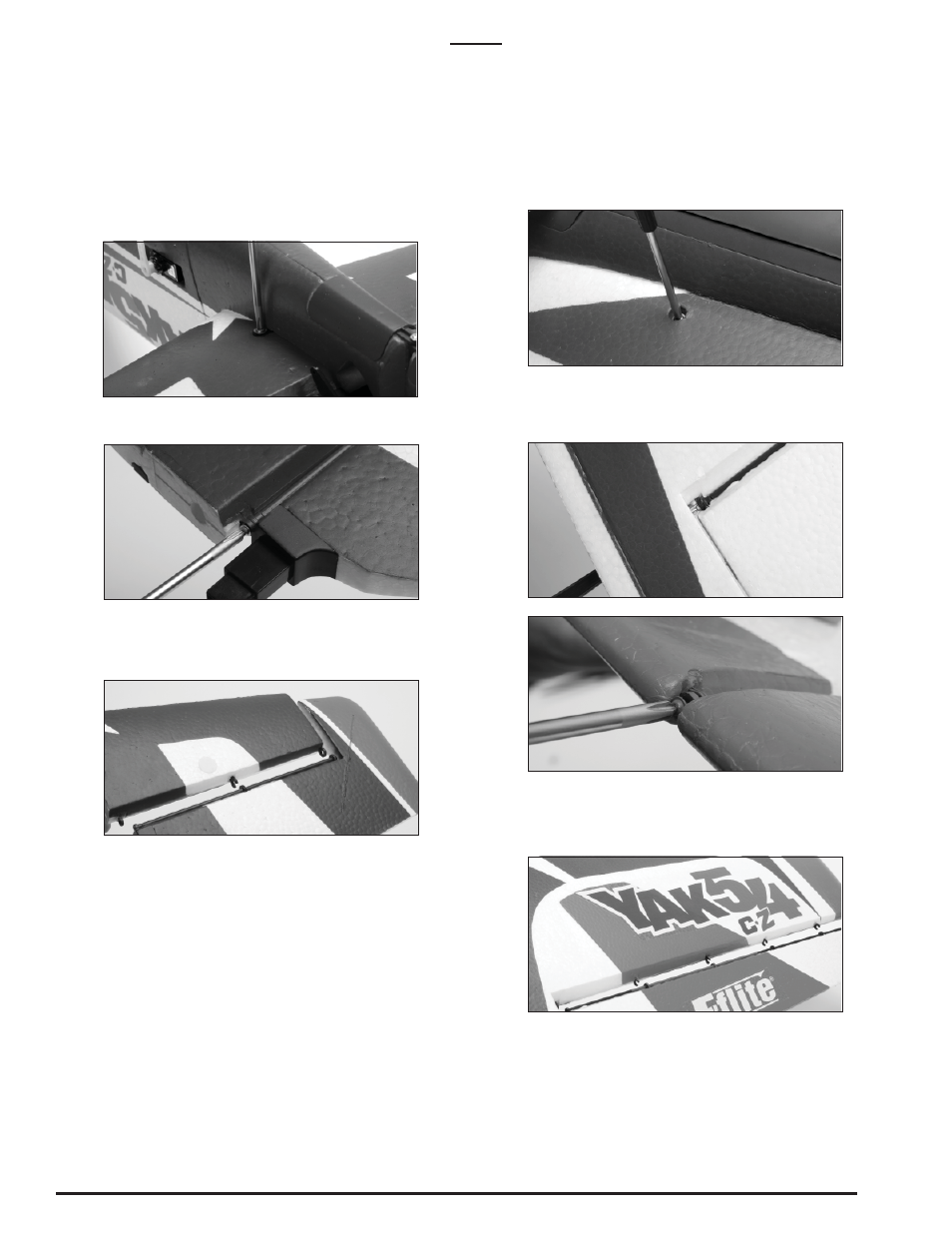

Removing the Control Surfaces

To remove the control surfaces, follow the steps

listed below:

Elevator

1. Disconnect the clevis from the control horn.

2. Remove the machine screws located on the

bottom of the horizontal stabilizer. Then remove

the horizontal stabilizer from the fuselage.

3. Remove the screw located on the hinge line at the

root of the horizontal stabilizer.

4. Carefully separate the elevator from the horizontal

stabilizer.

Note: The outer hinge is not open.

Note: To reinstall the elevator to the horizontal

stabilizer follow the steps listed above in reverse.

Rudder

Reverse the steps located in the “Installing Rudder”

section for rudder removal.

Ailerons

1. Disconnect the ball-link from the control horn.

2. Remove the machine screw located on the bottom

of the wing. Then carefully remove the wing from

the

fuselage.

Note: You will need to unplug the aileron servo lead

before removing the wing.

3. Remove the two screws located on the hinge line.

One is located at the wing tip and the other at

the

root.

4. Carefully separate the aileron from the wing.

Note: To reinstall the aileron to the wing, follow the

steps listed above in reverse.
