E-flite Extra 260 480 ARF Assembly Manual
Final Assembly
Required Parts
Fuselage
Wing
Canopy
Receiver
Battery
Battery hatch
4-40 x 1-inch socket head bolt (2)
#4 washer (2)
Hook and loop tape
Hook and loop strap
Required Tools and Adhesives
Hex wrench:
3
/
32
-inch
Felt-tipped pen
Canopy glue

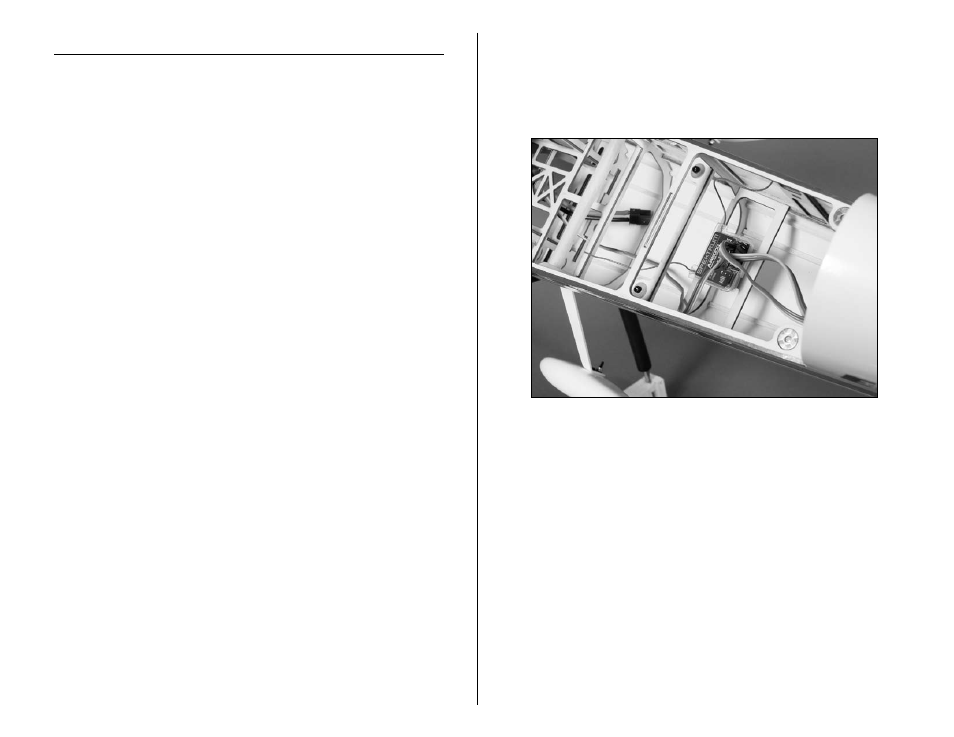

1. Plug in the elevator and rudder servos and ESC into
the receiver. Mount the receiver to the inside of the
fuselage using hook and loop material. Route the antenna
wire through the bottom of the fuselage to the rear, or as
directed by your radio instruction manual.
Note: Do not cut or change the length of the antenna
wire, as this will reduce the range of your radio system.
