10 E-flite Extra 260 480 ARF Assembly Manual
Outrunner Motor Installation
Required Parts
Fuselage
Brushless motor
4-40 x
3 / 8
-inch socket head screw (4)
#4 black washer (4)
Required Tools and Adhesives
Hex wrench: 3 /
32
-inch
Screwdriver (Phillips #0)
Note: This section covers the installation of the
recommended Park 480 Outrunner motor. The holes in
the firewall match the mounting pattern of the X-mount.

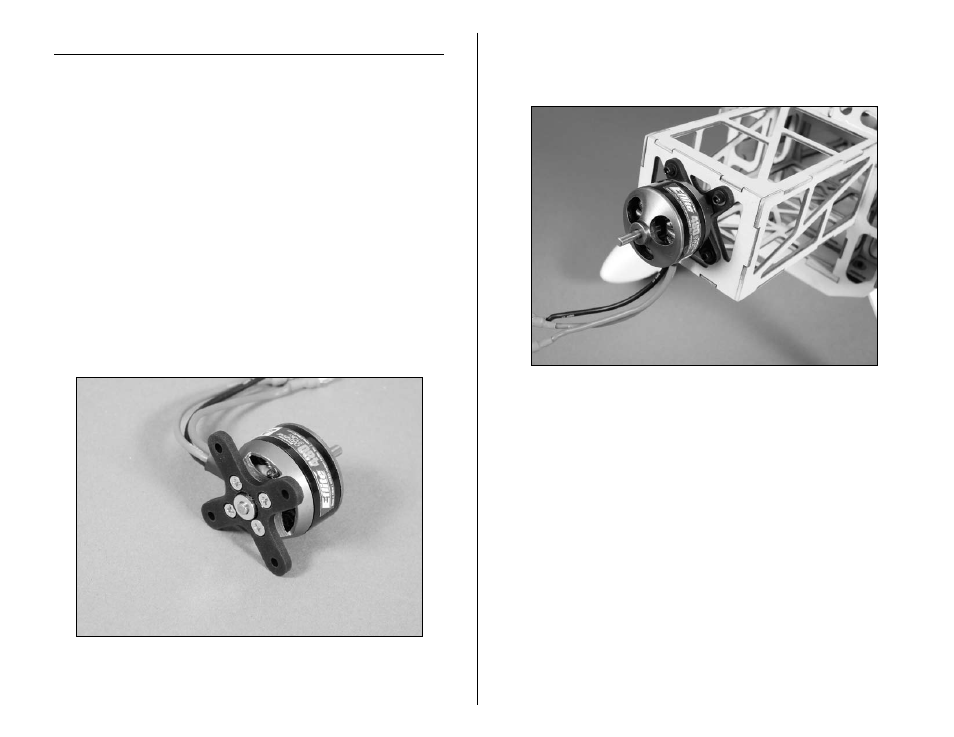

 1. Attach the supplied aluminum motor X-mount to the
motor using the screws provided with the motor. The
wider section of the mount will be positioned toward
the motor wires.
 2. Attach the Outrunner motor to the front of the firewall
using four black #4 washers and four 4-40 x
3 /
8
-inch
socket head screws.
