E-flite Extra 260 3D 480 ARF User Manual
Page 17
1
E-flite Extra 260 480 ARF Assembly Manual

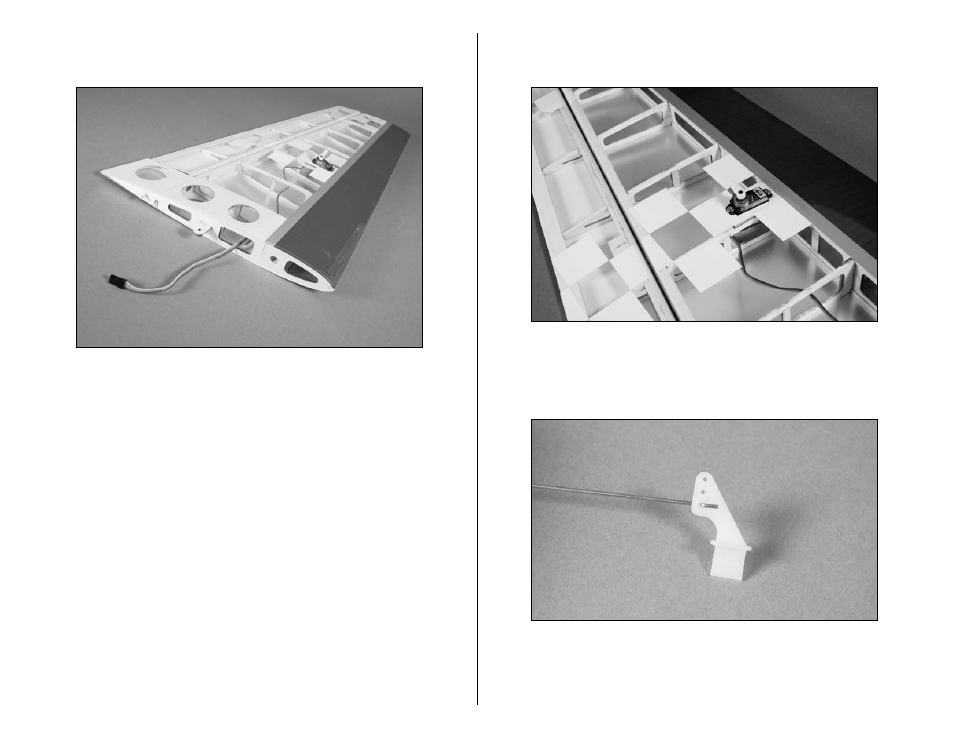

2. Place the servo in the wing. Guide the servo lead out
through the opening at the wing root.
3. Secure the aileron servo using the screws provided
with the servo.
4. Use a hobby knife to enlarge the inboard hole in the
control horn to fit the 3
1
/
2
-inch (89mm) long aileron
pushrod wire.
