8 E-flite Apprentice PNP Assembly Manual

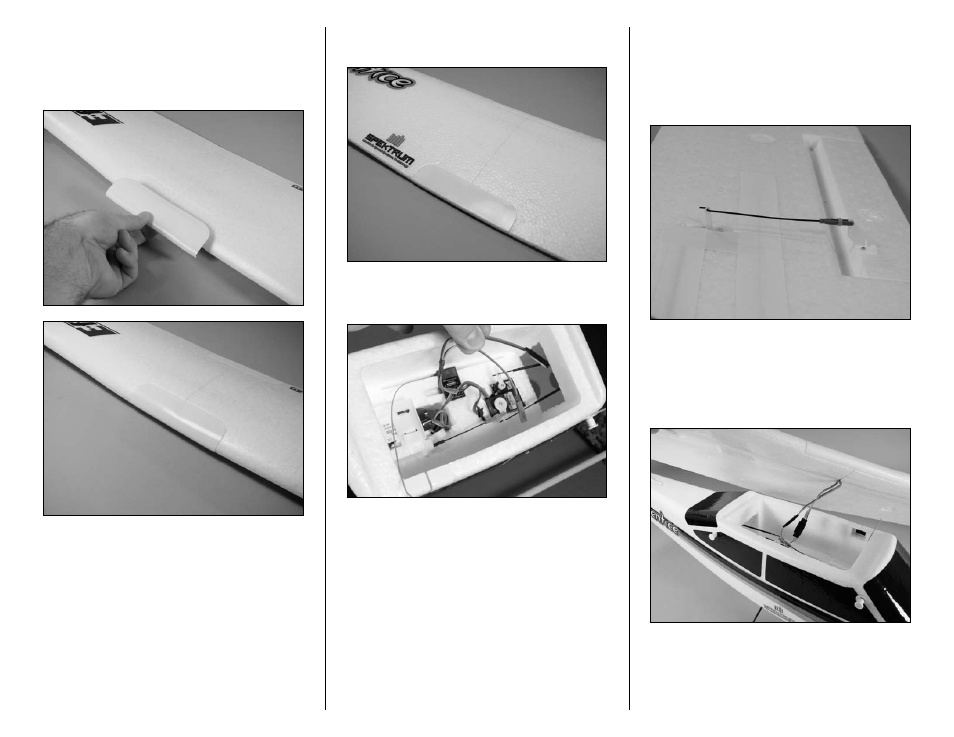

 6. Make sure the two wing panels are pressed
tightly together with no gap between them. Position
the front wing cover in the notch at the front of the
wing. Press the cover down to secure its position on
the wing.
 7. Repeat the previous step to install the rear
wing cover.
 8. Install the included Y-harness by plugging it into
the “AILE” port of the receiver.
 9. Connect the aileron pushrod clevis to the aileron
control horn in the hole that is farthest away from
the aileron. Make sure to slide the silicone retainer
onto the clevis to keep the clevis from popping off
of the control horn. Connect both the right and left
aileron linkages at this time.
 10. Bind your radio system according to the
manufacturers instructions at this time.
 11. Connect the wires from the aileron servos to
the Y-harness coming from the receiver.
