E-flite Apprentice PNP Assembly Manual

Product Registration

Register your product online at:

www.e-fliterc.com/register/

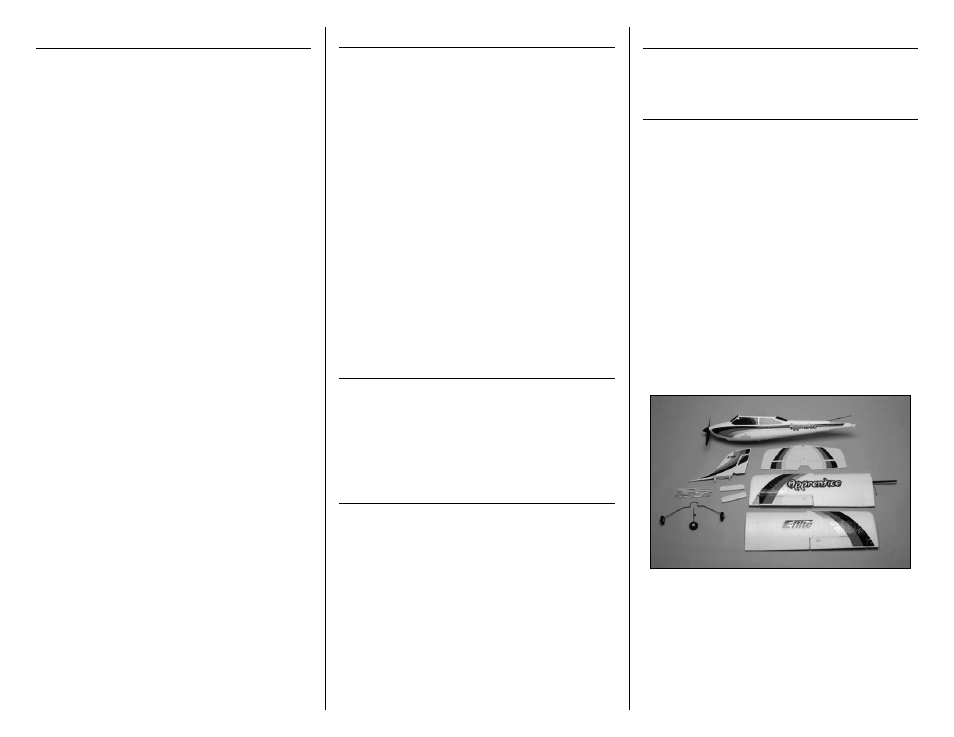

Contents of Kit/Parts Layout

EFL2726

Wing Set

EFL2727

Fuselage

EFL2728

Tail Set

EFL2729

Cowl

EFL2730

Pushrod Set

EFL2731

Nose Gear

EFL2732

Main Landing Gear

EFL2733

Spinner

EFL2734

Motor Mount

EFL2735

5mm Prop Adapter

EFLA1030

30-Amp Pro Switch-mode

BEC Brushless ESC

EFLM7215

BL15 Outrunner, 840Kv motor

EFLP11080E

11 x 8 Electric Propeller

EFLR7140

13-gram Sub-Micro Servo

(used on elevator and ailerons)

EFLR7150

37-gram Standard Servo

(used on rudder)

Introduction

E-flite’s Apprentice™ 15e Plug-N-Play™ is a 15-size

high-wing club trainer that comes with nearly

everything you need to go from purchase to the flying

field. No building required—just charge and install

your battery, mount the wing and tail surfaces and

fly by utilizing your own transmitter and receiver.

The Apprentice is made from durable, lightweight

Z-Foam™, making it tough enough to handle the

punishment of early training mishaps without getting

bent out of shape. When using the recommended

E-flite

®

11.1V 3200mAh battery, you can expect

extended flight times of 15 minutes or more.

The Apprentice is the perfect training aircraft thanks

to its gentle flight characteristics. Once the pilot has

learned the basics of flight, the Apprentice is capable

of performing loops, rolls, inverted flying and other

aerobatic maneuvers. It’s also equipped with tricycle

landing gear for better ground handling.

Learn to fly the basics and beyond with E-flite’s

Apprentice PNP.

Important Warranty Information

Please read our Warranty and Liability Limitations

section on Page 22 before building this product. If you

as the Purchaser or user are not prepared to accept the

liability associated with the use of this Product, you are

advised to return this Product immediately in new and

unused condition to the place of purchase.

Using the Manual

This manual is divided into sections to help make

assembly easier to understand, and to provide breaks

between each major section. In addition, check boxes

have been placed next to each step to keep track

of its completion. Steps with a single circle () are

performed once, while steps with two circles ( )

indicate that the step will require repeating, such as for

a right or left wing panel, two servos, etc.

Remember to take your time and follow the directions.

Table of Contents

Introduction ........................................................... 2

Important Warranty Information .............................. 2

Using the Manual ................................................... 2

Product Registration................................................ 2

Contents of Kit/Parts Layout .................................... 2

Required Radio Equipment ...................................... 3

Battery .................................................................. 3

Charger ................................................................ 3

Required Tools and Adhesives ................................. 3

Optional Accessories .............................................. 3

Note on Lithium Polymer Batteries ........................... 3

Charging the Flight Battery ..................................... 3

AR500 Receiver Installation .................................... 3

AR6200 Receiver Installation .................................. 4

Tail Installation ....................................................... 4

Landing Gear Installation ........................................ 6

Wing Installation .................................................... 6

Battery Installation .................................................. 9

Removing the Propeller ......................................... 10

Control Functions ................................................. 12

Centering the Control Surfaces and

Checking Control Direction .............................. 12

Reversing Direction of Flight Controls ..................... 17

Center of Gravity ................................................. 17

Range Test Your Radio .......................................... 18

Setting the Control Throws .................................... 18

Installing the Propeller .......................................... 20

Flying Your Apprentice ......................................... 22

Safety Precautions ................................................ 22

Safety Do’s and Don’ts for Pilots ............................ 22

Warranty Information ........................................... 22

CE Compliance Information for the

European Union .............................................. 24

2009 Official Academy of

Model Aeronautics Safety Code ....................... 24

Declaration of Conformity ..................................... 26
