400 Series Control Settings
440i Control

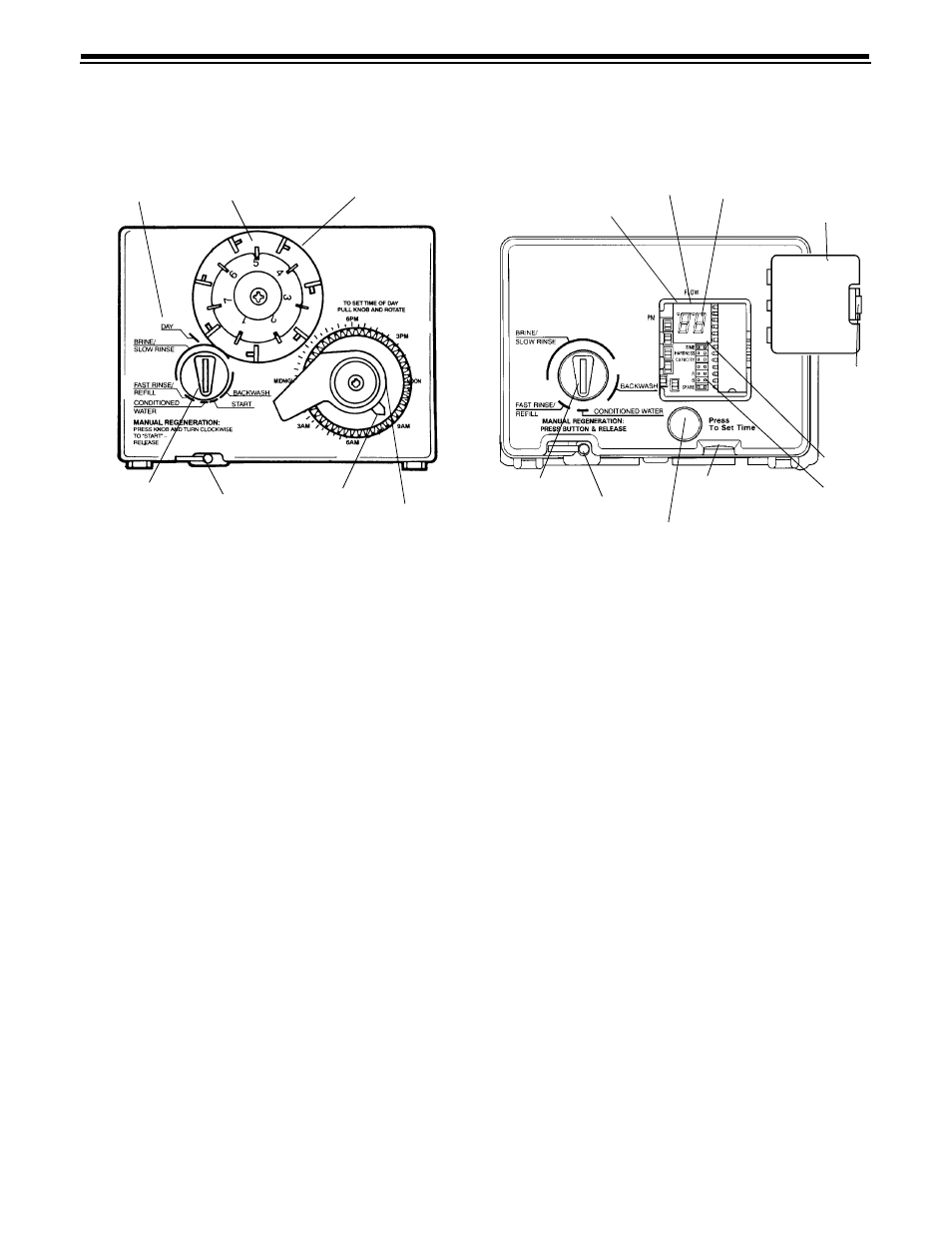

Figure 5
Programming
1. Set days of regeneration on skipper wheel (Figure 5).
• Pull all skipper pins outward (away from
control).
• Rotate skipper wheel until day arrow points to
current day or number 1.
• Depress skipper pin(s) at day(s) for which
regeneration is desired.
2. Set the time of day.
• Grasp timer knob and pull outward.
• Rotate in either direction until the timer arrow
points to the actual time of day.
• Release timer knob.
Note : With the time of day properly set, the conditioner
will regenerate at about 2:30 a.m. If you prefer to have
the unit regenerate at an earlier or later time, simply set
current time-of-day accordingly (e.g., to have the unit
regenerate at 4:30 a.m.—two hours later—set the clock
two hours earlier than the actual time of day.)
Note: The Timer Locking Pin should always be
horizontal (Figure 5) during operation.
460i Control
Figure 6
Programming
Plug the wall-mount transformer into a functioning
electrical outlet that is not controlled by a switch. Plug
the transformer into the transformer plug receptacle on
the control.
Open the access door by pushing the raised tab on the
door toward the left while pulling the tab out (Figure 6).
Time of Day Setting
With the jumper on the set of pins next to the word
TIME (Figure 7), set the time of day to the closest hour
by pressing the black TIME SET button. PM hours are
indicated by a light next to the letters PM on the display
window.
Note: The use of a small needle-nose pliers will aid in
moving the jumper.
Note: The unit is factory set to regenerate at 2:00 a.m.
If you prefer to have the unit regenerate at an earlier or
later time, simply set the current time of day
accordingly (e.g., to have the unit regenerate at
4:00 a.m.—two hours later—set the clock two hours
earlier than the actual time of day).
Note: The Timer Locking Pin should always be
horizontal (Figure 6) during operation.
