The following standards are supported in the digital TV function:

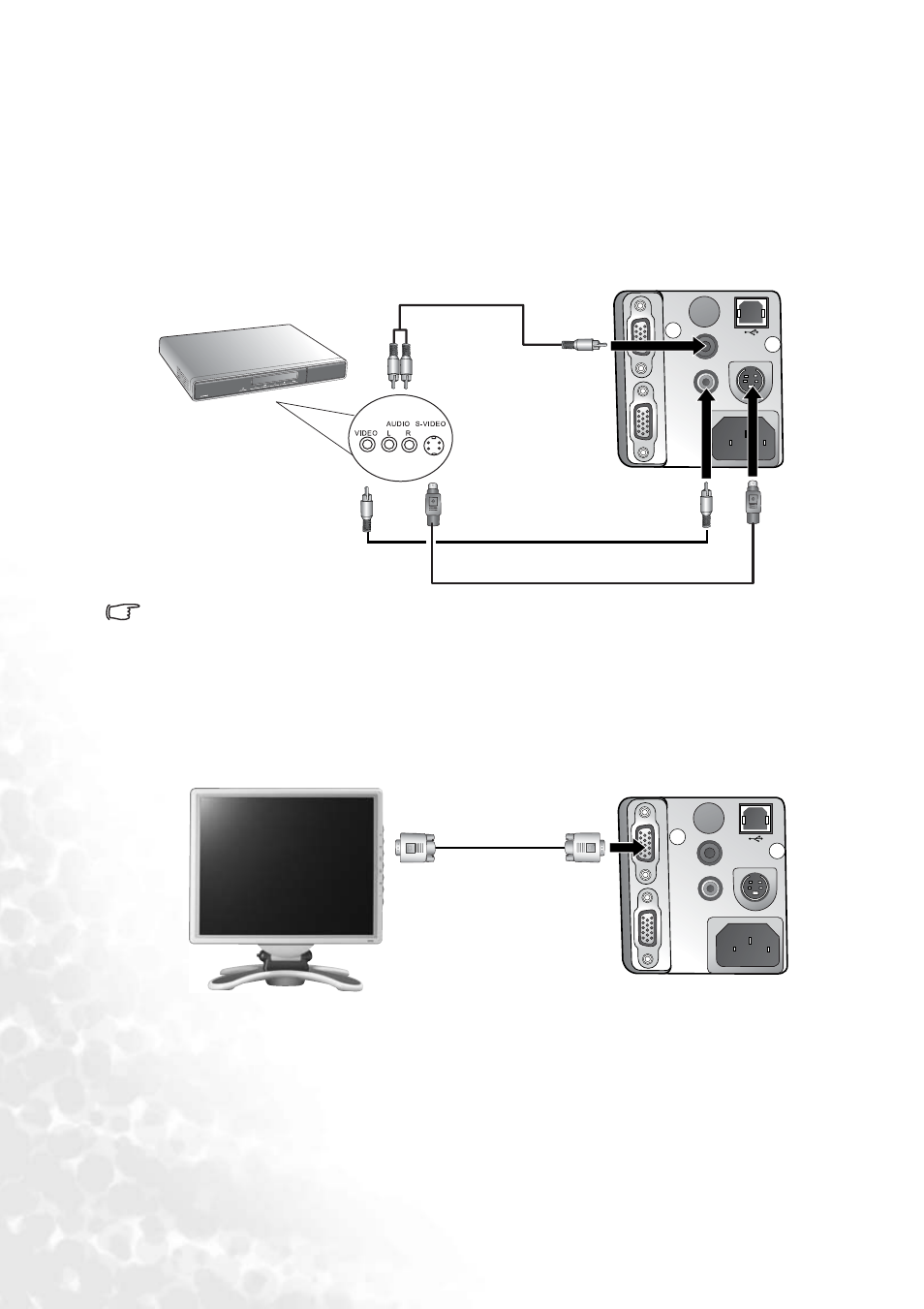

Connecting Video or S-Video devices
If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the video source is turned on and operating
correctly. Also check that the signal cables have been connected correctly.
Connecting display devices
If you want to monitor your presentation close-up on a monitor as well as on the screen, you
can connect the RGB signal output port on the projector to an external monitor with a VGA
cable.
• 480i • 480p
• 576i • 576p
• 720p (50/ 60 Hz) • 1080i (50/ 60 Hz)
S-VIDEO
VIDEO
AC-INLET
D-SUB OUT
D-SUB/COMP IN
AUDIO
S-Video or Video devices
Video cable
or
S-Video cable
Audio cable
S-VIDEO
VIDEO
AC-INLET
D-SUB OUT
D-SUB/COMP IN
AUDIO
VGA cable
