Banner M12 Series—Visible Red LED - Manual (Page 7)

P/N 129721 rev. E
7
Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: 763.544.3164
M12 Series Metal Barrel Sensors
SMBQS12PD
• Right-angle, barrel-mount bracket
• 16-ga. 300 series stainless steel

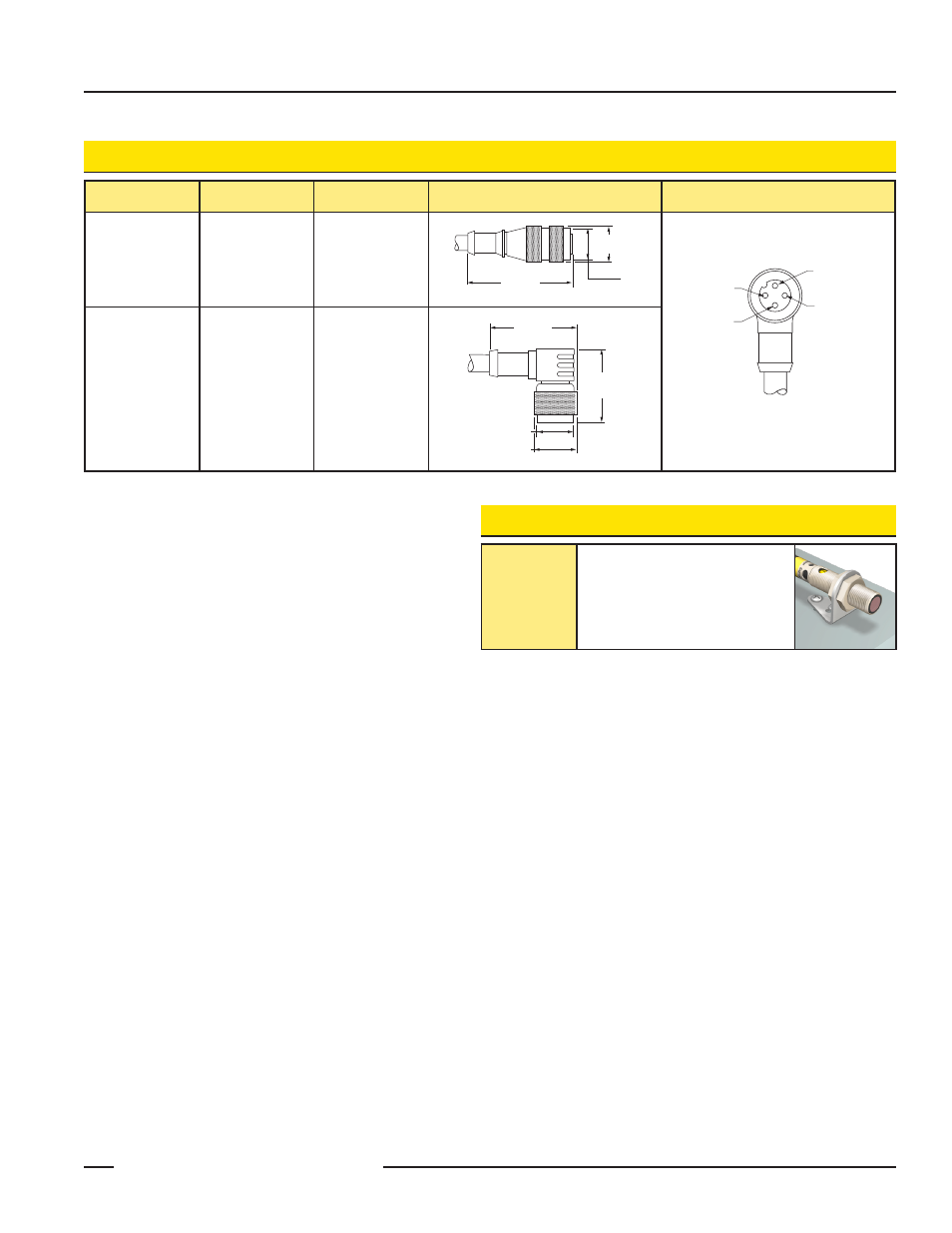

Quick-Disconnect (QD) Cables
Mounting Brackets
Style Model Length Dimensions Pinout
4-pin
Euro-style
straight MQDC-406
MQDC-415
MQDC-430 2 m (6.5')
5 m (15')
9 m (30')
4-pin
Euro-style
right-angle MQDC-406RA
MQDC-415RA
MQDC-430RA 2 m (6.5')
5 m (15')
9 m (30')
38 mm max.
(1.5")
M12 x 1
ø 15 mm
(0.6")
38 mm max.
(1.5")
M12 x 1
ø 15 mm
(0.6")
44 mm max.
(1.7")
White Wire
Blue Wire
Black Wire
Brown Wire
