ECONO-BEAM Sensors –
Miniature Self-Contained DC Sensors
page 6
Banner Engineering Corp. • Minneapolis, U.S.A.
Website: http://www.baneng.com • Tel: 888.373.6767
Certifications
Supply Voltage and Current 10 to 30V dc (10% maximum ripple) at less than 20 mA (exclusive of load)
Supply Protection Circuitry Protected against reverse polarity and transient voltages
Output Configuration Bipolar: One current sourcing (PNP) and one current sinking (NPN) open-collector transistor
Output Rating 150 mA maximum each output
Off-state leakage current less than 1 microamp
Output saturation voltage (PNP output) less than 1 volt at 10 mA and less than 2 volts at 150 mA
Output saturation voltage (NPN output) less than 200 millivolts at 10 mA and less than 1 volt at 150 mA
Output Protection Circuitry Protected against false pulse on power-up
Output Response Time Less than 10 milliseconds ON and OFF; independent of signal strength
(NOTE: 100 millisecond delay on power-up: outputs do not conduct during this time.)
MHS Models: 1 millisecond (Faster response comes at the expense of lower excess gain.)
Repeatability 0.4 ms; MHS models 0.06 ms; independent of signal strength.
Indicators All models except emitter-only units have a top-mounted LED indicator that lights whenever the receiver
“sees” its modulated light source.
Construction Reinforced thermoplastic polyester (models LV, CV, F and FP) or polycarbonate (other models) housing,
totally encapsulated for protection against moisture, vibration and corrosion.
Environmental Rating Meets NEMA standards 1, 3, 3S, 4, 4X, 12, and 13; IEC IP66
Connections PVC-jacketed 4-wire 2 m (6.5') or 9 m (30') cables
Operating Conditions Temperature: 0° to +50°C (+32° to 122°F)
Maximum relative humidity: 90% at 50°C (non-condensing)
All Sensors Except Emitters
bn
wh
bu
+
–
bk
Load
Load
10-30V dc

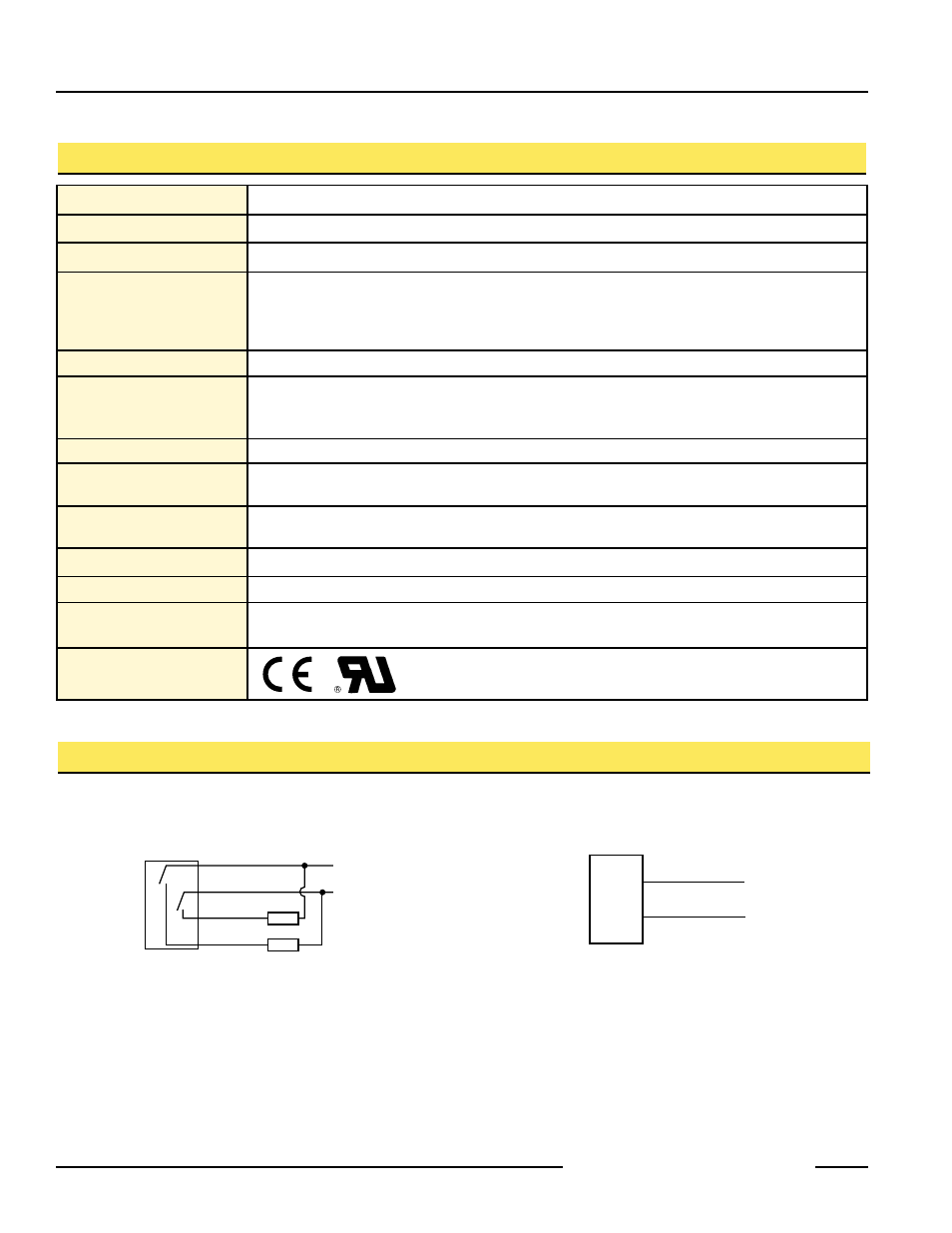

ECONO-BEAM DC Hookups
SE61E Emitters
bn
bu
+
–
10-30V dc
ECONO-BEAM DC Specifications
