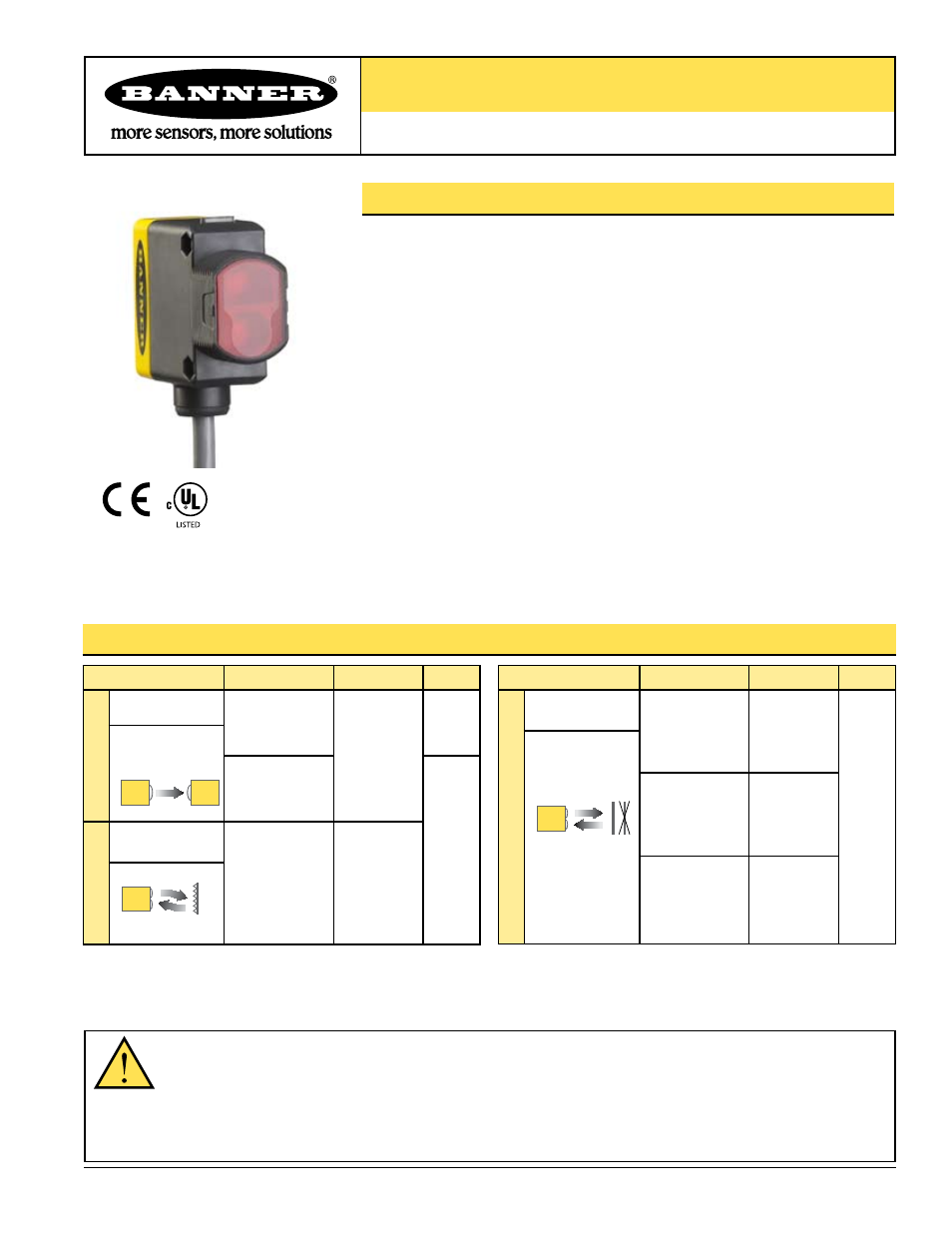

WORLD-BEAM
®
QS30 – Universal Voltage
Self-contained photoelectric sensors in universal-style housing
WARNING . . .
Not To Be Used for Personnel Protection
Never use these products as sensing devices for personnel protection. Doing so could lead to serious injury or death
These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety applications. A sensor failure or
malfunction can cause either an energized or de-energized sensor output condition. Consult your current Banner Safety Products catalog for safety
products which meet OSHA, ANSI and IEC standards for personnel protection.
* Only standard 2 m (6.5') cable models are listed. For 9 m (30') integral cable, add suffix “W/30” to the model number (e.g., QS303E W/30).
QD models: Contact Factory for availability.
†
Range is measured using a model BRT-84 retroreflector.
Sensing Mode
Model*
Range
Output
O
pp
os
ed
875 nm Infrared
QS303E
emitter
60 m (200')
–
QS30VR3R
receiver
SPDT
Po
la
riz
ed
R
et
ro
630 nm
Visible Red
QS30VR3LP
8 m (26')†
Sensing Mode
Model*
Range
Output
Fi
xe
d-
Fi
el
d
680 nm
Visible Red
QS30VR3FF200
200 mm
(8")
SPDT
QS30VR3FF400
400 mm
(16")
QS30VR3FF600
600 mm
(24")
Effective Beam:
18 mm (0.7")
P
Features
• Advanced one-piece photoelectric sensors with exceptional long-range optical
performance
• Compact housing with mounting versatility, via its popular 30 mm threaded barrel or
side-mount holes
• 24 to 250V ac 50/60 Hz and 12 to 250V dc operation with SPDT electromechanical
relay output
• Tough ABS/polycarbonate blend housing is rated to IEC IP67; NEMA 6
• Easy-to-see sensor status indicators: two status LEDs visible from 360°; extra-
large Output indicator on back of sensor housing (except emitters) visible from long
distance
• Opposed, polarized retroreflective, and fixed-field (200, 400, or 600 mm cutoff)
models available
• 2 m integral cable
Models
