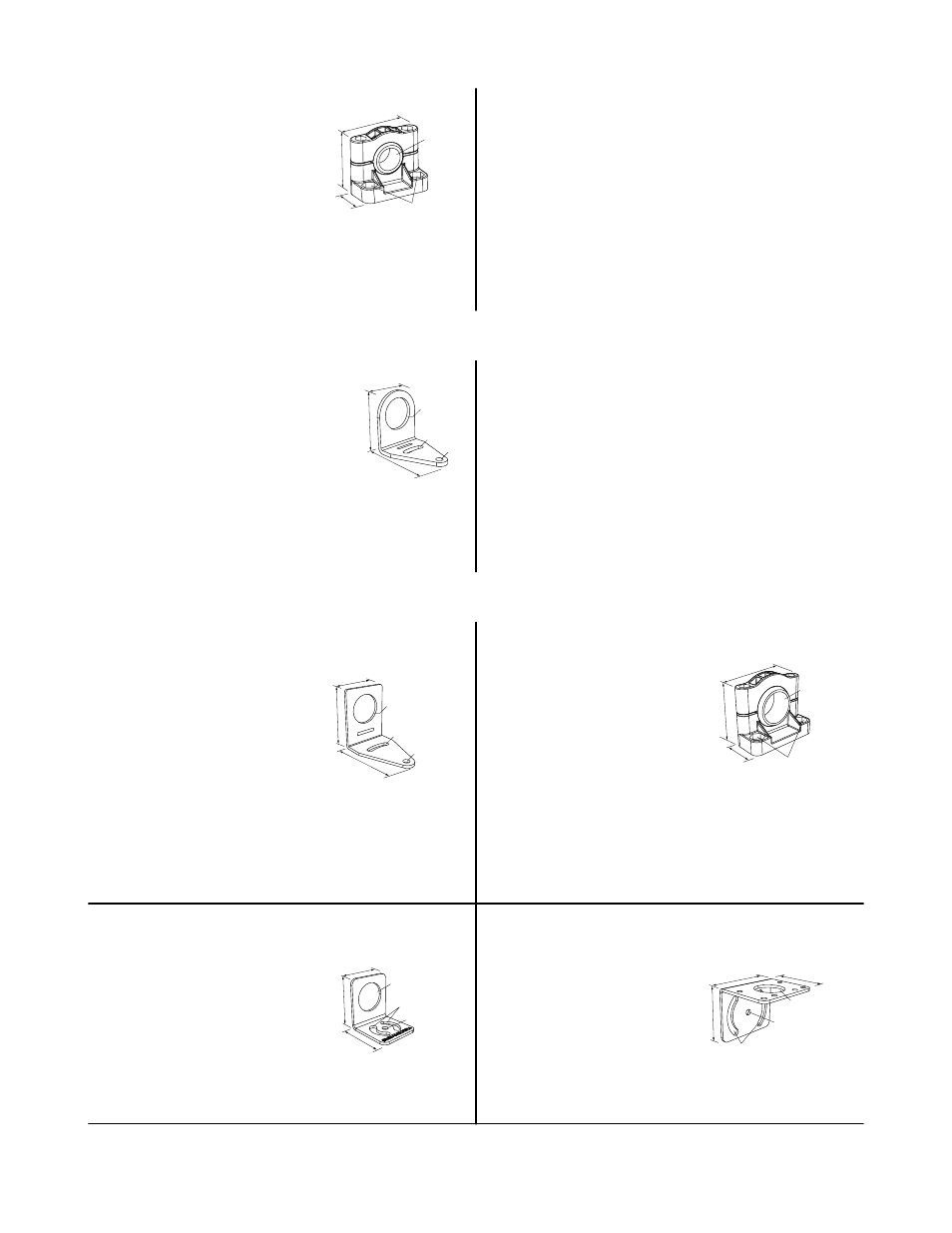

SMB18SF
• 18 mm swivel bracket with
M18 × 1 internal thread
• Black thermoplastic polyester
• Stainless steel swivel locking
hardware included
B
A
51
42
25
Hole center spacing: A = 36.0
Hole size: A = ø 5.3, B = ø 18.0
For use with base-mount K30L models
SMB22A
• Right-angle bracket with curved slot
for versatile orientation
• 12-ga. stainless steel
• Mounting hole for 22 mm sensor
32
41
46
A
B
C
Hole center spacing: A to B = 26.0
Hole size: A = ø 4.6, B = 4.6 x 16.9, C = 22.2
For use with T30 models or base-mount K50L models
SMB30A
• Right-angle bracket with
curved slot for versatile
orientation
• Clearance for M6 (¼ in)
hardware
• Mounting hole for 30 mm
sensor
• 12-ga. stainless steel
45
61
69
A
B
C
Hole center spacing: A to B=40
Hole size: A=ø 6.3, B= 27.1 x 6.3, C=ø 30.5
SMB30SC
• Swivel bracket with 30 mm
mounting hole for sensor
• Black reinforced thermo-
plastic polyester
• Stainless steel mounting
and swivel locking hard-
ware included
67
58
29
B
A
Hole center spacing: A=ø 50.8
Hole size: A=ø 7.0, B=ø 30.0
SMBAMS30RA
• Right-angle SMBAMS ser-
ies bracket
• 30 mm hole for mounting
sensors
• Articulation slots for 90°+
rotation
• 12-ga. (2.6 mm) cold-rol-
led steel
53
48
45
A
C
B
SMB30MM
• 12-ga. stainless steel
bracket with curved
mounting slots for versatile
orientation
• Clearance for M6 (¼ in)
hardware
• Mounting hole for 30 mm
sensor
70
57
A
B
C
57
