Banner K50FL General Purpose EZ-LIGHT - Manual (Page 5)

For use with M18 and T18 models or base-mount T30 models

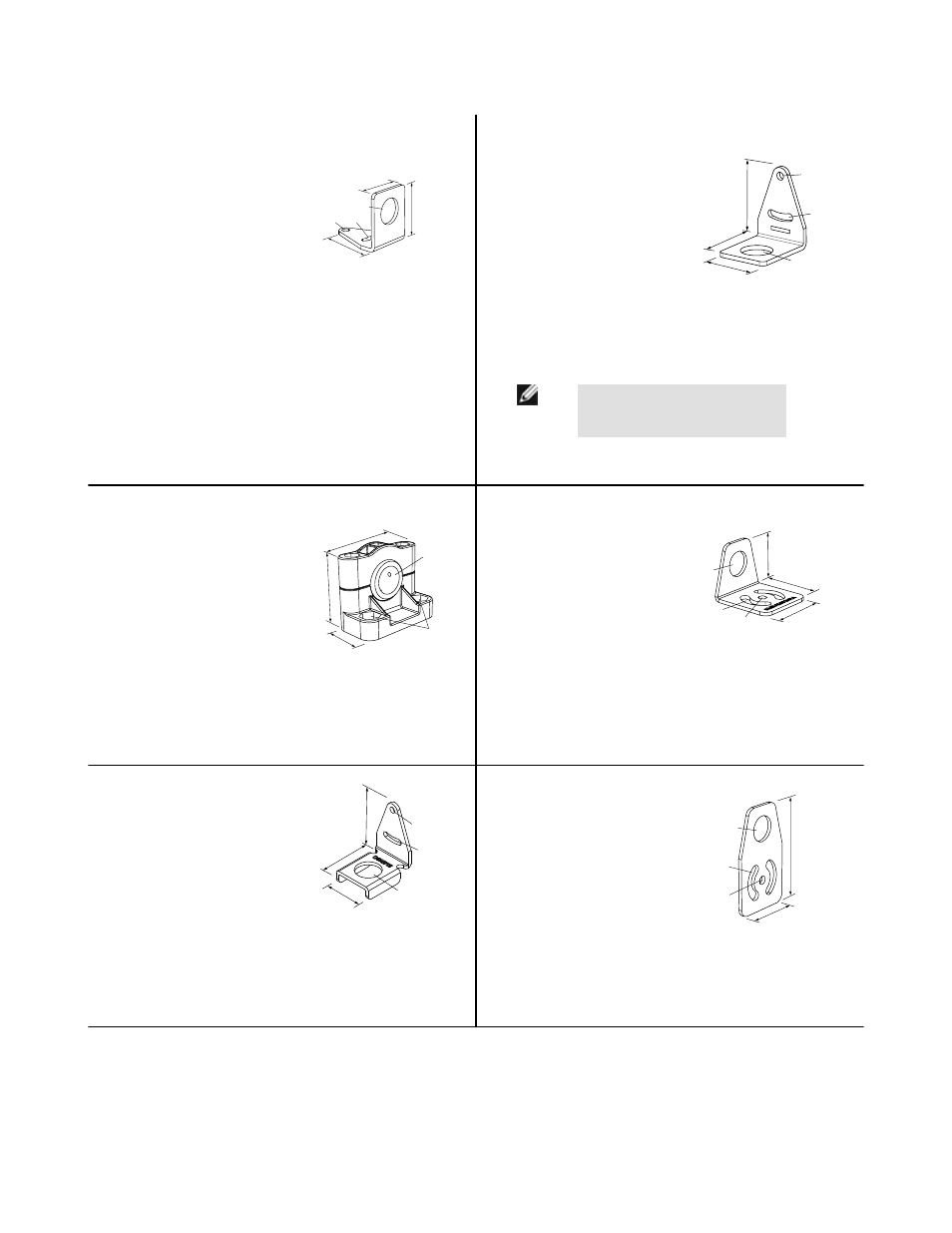

SMB18A
• Right-angle mounting
bracket with a curved slot
for versatile orientation
• 12-ga. stainless steel
• 18 mm sensor mounting
hole
• Clearance for M4 (#8)
hardware
30
41
46
A B
C
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17.0 × 4.6, C = ø 18.5
SMB312PD
• Right-angle mounting
bracket with a curved slot
for versatile orientation
• 12-ga. stainless steel
• 18 mm sensor mounting
hole
• Clearance for M4 (#8)
hardware
46
41
B
C
A
32
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17 × 4.6, C = ø 18.5
NOTE: Not for use with plastic fi-
ber optic sensors
SMB1815SF
• Swivel with set screws for
mounting sensors by the
cable hub
• Black reinforced thermo-
plastic polyester
• Stainless steel swivel lock-
ing hardware and hex
wrench included
51
39
B
A
25
Hole center spacing: A = 36.0
Hole size: A = ø 5.0, B = ø 15.0
SMBAMS18RA
• Right-angle SMBAMS ser-
ies bracket with 18 mm
hole for mounting sensors
• Articulation slots for 90+°
rotation
• 12-ga. (2.6 mm) cold-rol-
led steel
48
45
40
A
B
C
Hole center spacing: A = 26.0, A to B = 13.0
Hole size: A = 26.8 × 7.0, B = ø 6.5, C = ø 19.0
SMB18Q
• Right-angle flanged brack-
et
• 18 mm sensor mounting
hole
• 12-ga. stainless steel
41
46
A
B
30
C
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17.0 × 4.6, C = ø 19.0
SMBAMS18P
• Flat SMBAMS series
bracket with 18 mm hole
for mounting sensors
• Articulation slots for 90+°
rotation
• 12-ga. (2.6 mm) cold-rol-
led steel
45
78
A
B
C
Hole center spacing: A = 26.0, A to B = 13.0
Hole size: A = 26.8 × 7.0, B = ø 6.5, C = ø 19.0
EZ-LIGHT® QPMA Series
P/N 121903_web
Rev. F www.bannerengineering.com - tel: 763-544-3164 5
