Specifications
Supply Voltage and Current
K30L, T18, and M18 Models:
2-color models: 10 to 30V dc at 30 mA max.
3-color models: 10 to 30V dc at 25 mA max. per
color
T30 models:
2-color models: 10 to 30V dc at 50 mA max.
3-color models: 10 to 30V dc at 40 mA max. per
color
K50L, K50FL, and K80L Models:
2-color models: 18 to 30V dc at 50 mA max.
Indicators
Entire translucent diffuser or dome provides indication.
See notes 1 and 2 under
Models on page 1. For other
colors/combinations, contact Banner Engineering for
availability.
Construction
See Models on page 1
Connections
150 mm (6 in) PUR pigtail with 4-pin Euro-style QD fit-
ting
Environmental Rating
IEC IP67
K80L has encapsulated electronics only; other models
are fully encapsulated.
Operating Conditions
−40 °C to +50 °C (−40 °F to +122 °F)
Hookups

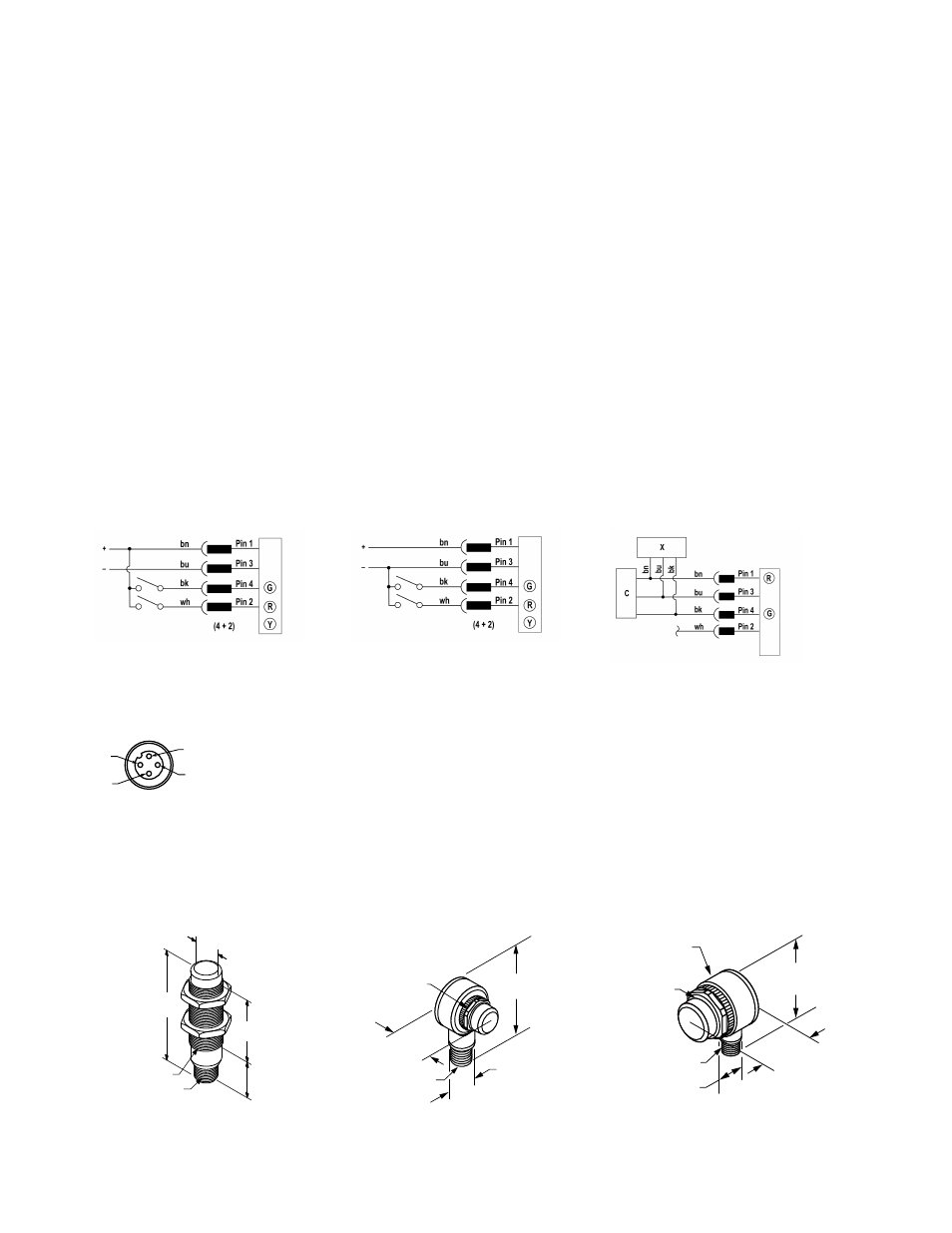

PNP (..GXRP..) 3-Color Models NPN (..GXRN..) 3-Color Models 2-Color (..RGX7P..) Models
NOTE: When "G" is ON, "R" is OFF
Pinout Key
2
3
4
1
1 = Brown
2 = White
3 = Blue
4 = Black X = Banner Sensor
C = Control Box
G = Green
R = Red
Y = Yellow
Dimensions
M18 Models T18 Models T30 Models
30 mm
(1.2")
23 mm
(0.9")
Ø16.5 mm
(0.65")
61 mm
(2.4")
M12 X 1
M18 X 1
120037
Ø 15 mm
(0.59")
M18 x 1
Thread
33.0 mm
(1.3")
53.6 mm
(2.11")
M12 X 1
M30 x 1.5
Thread
Ø 40.0 mm
(1.57")
45.0 mm
(1.77")
63.7 mm
(2.51")
Ø 15 mm
(0.59")
M12 X 1
EZ-LIGHT® QPMA Series
