Banner WORLD-BEAM QS18 Standard Series - Manual (Page 9)

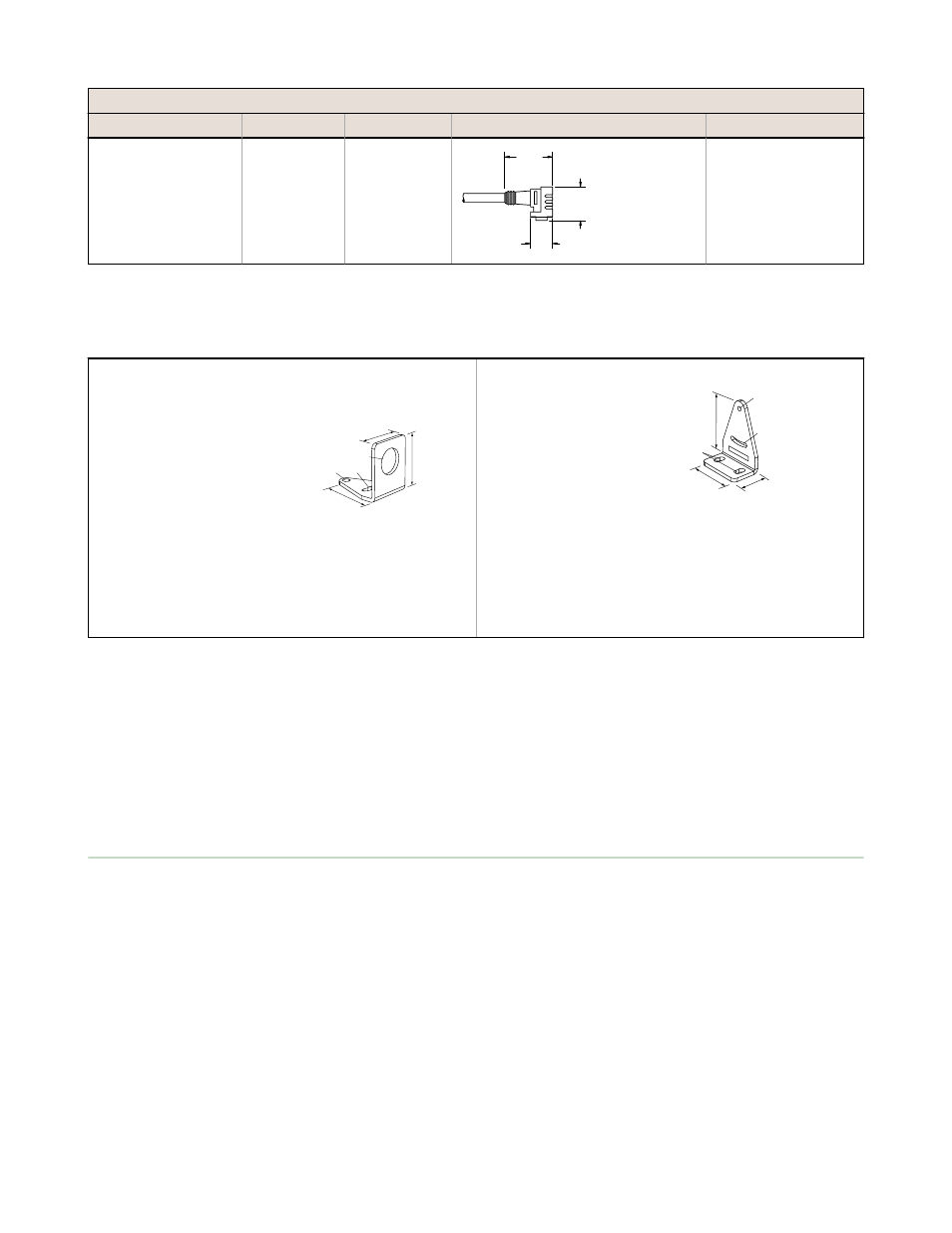

4-Pin Snap-on M8/Pico-Style Cordsets
Model Length Style Dimensions Pinout
PKW4Z-2 2.00 m (6.56 ft) Right-Angle
ø 10.9
29 Typ.
15 Typ.
WORLD-BEAM QS18 Brackets
All measurements are in millimeters.
SMB18A
• Right-angle
mounting bracket
with a curved slot
for versatile
orientation
• 12-ga. stainless
steel
• 18 mm sensor
mounting hole
• Clearance for M4
(#8) hardware
30
41
46
A B
C
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17.0 × 4.6, C = ø 18.5
SMB312S
• Stainless steel 2-
axis, side-mount
bracket
46
B
C
A
32
20
A = 4.3 x 7.5, B = diam. 3,
C = 3 x 15.3
Retroreflective Targets
See the Accessories section of your current Banner Engineering Corp catalog for complete information. NOTE: Polarized
sensors require corner cube type retroreflective targets only.
Plastic and Glass Fiber Optics
See the Accessories section of your current Banner Engineering Corp catalog for a list of plastic and glass fiber optic
cables.
Banner Engineering Corp Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following
the date of shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture
which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty
does not cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR
IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR
TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO
EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO BUYER OR ANY OTHER PERSON OR ENTITY FOR
ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGES RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE
PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY,
NEGLIGENCE, OR OTHERWISE.
WORLD-BEAM QS18
P/N 63908 Rev. H www.bannerengineering.com - tel: 763-544-3164 9
