Installing Glass Fibers QS18V..6F
Follow these steps to install the glass fibers.
O-rings
Retaining Clip

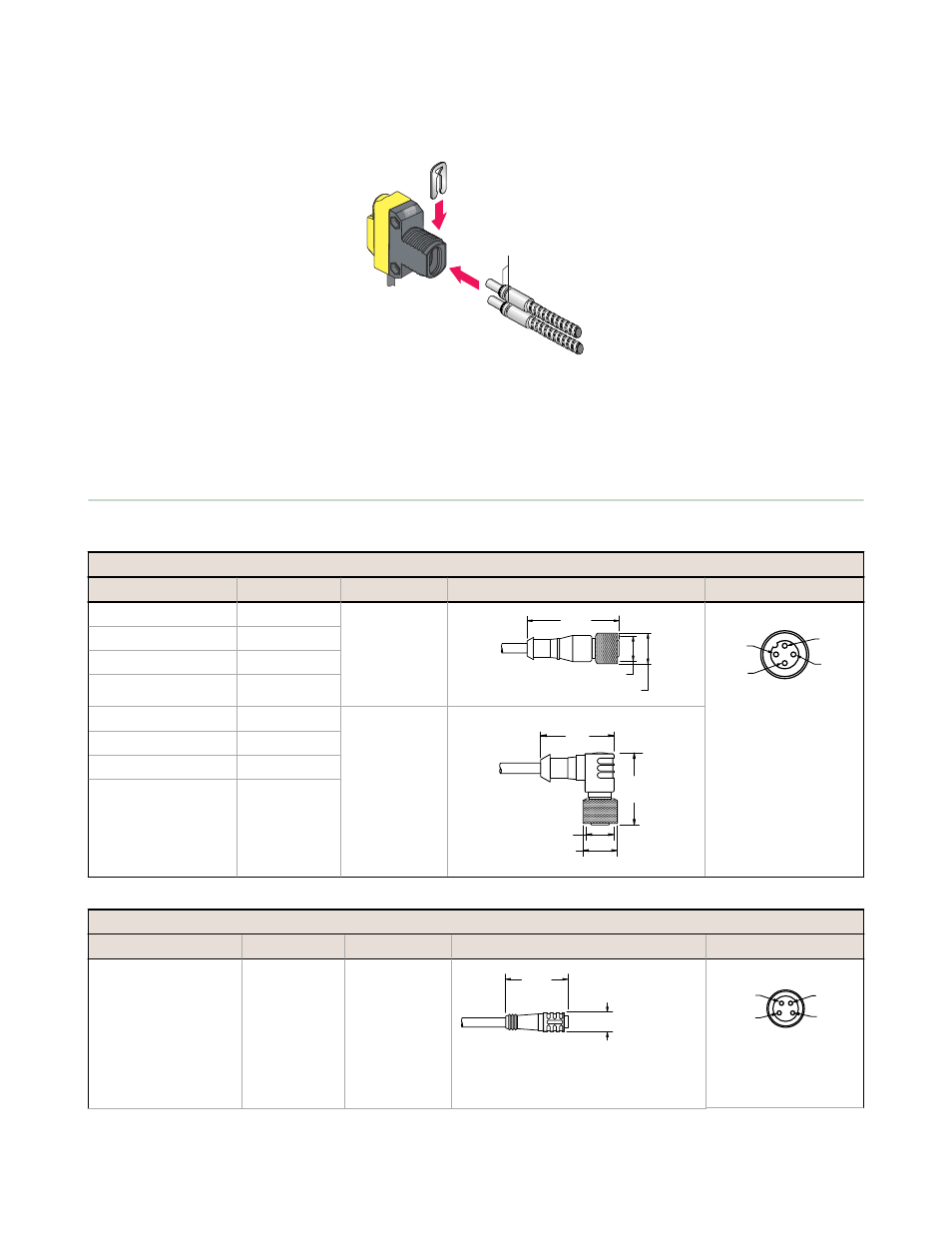

Figure 3. Installing Glass Fibers
1. Slide the supplied o-ring on the sensor end of the fibers, as shown.
2. Press the fiber ends firmly into the ports located on the front of the sensor.
3. Slide the supplied u-shaped retaining clip into the slot in the sensor’s barrel until the clip snaps into place.
Accessories
Cordsets
4-Pin Threaded M12/Euro-Style Cordsets
Model Length Style Dimensions Pinout
MQDC-406 1.83 m (6 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
1 = Brown
2 = White
3 = Blue
4 = Black
MQDC-415 4.57 m (15 ft)
MQDC-430 9.14 m (30 ft)
MQDC-450 15.2 m (50 ft)
MQDC-406RA 1.83 m (6 ft)
Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQDC-415RA 4.57 m (15 ft)
MQDC-430RA 9.14 m (30 ft)
MQDC-450RA 15.2 m (50 ft)
4-Pin Snap-on M8/Pico-Style Cordsets
Model Length Style Dimensions Pinout
PKG4-2 2.00 m (6.56 ft) Straight
ø 9.0
32 Typ.
4
3 1
2
1 = Brown
2 = White
3 = Blue
4 = Black
WORLD-BEAM QS18
