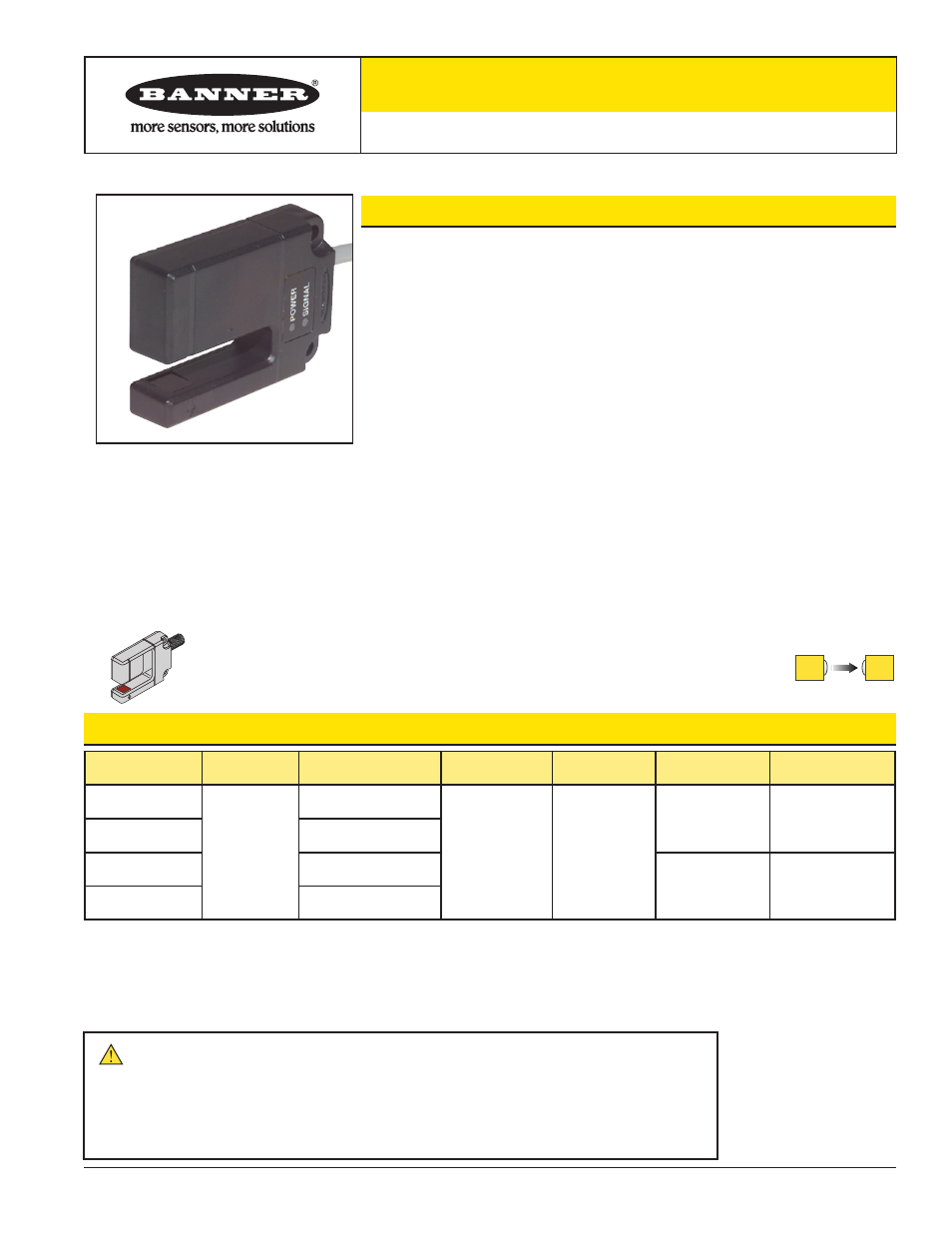

Banner SL10 Series Slot Sensors User Manual
Sl10 series slot sensor, 10 mm-wide slot, Features

SL10 Series Slot Sensor –
10 mm-wide Slot
Self-contained opposed-mode sensor pair
Printed in USA
03/09
P/N 58341I9B
WARNING . . .
Not To Be Used for Personnel Protection
Never use these products as sensing devices for personnel protection. Doing so could lead to serious injury or death.
These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety applications. A
sensor failure or malfunction can cause either an energized or de-energized sensor output condition. Consult your current Banner
Safety Products catalog for safety products which meet OSHA, ANSI and IEC standards for personnel protection.
Features
An easy-to-use self-contained opposed-mode sensor pair in a rugged U-shaped
•
housing
Easy and economical to mount
•
Molded-in beam guides simplify mounting and beam placement
•
10 mm slot width for a wide variety of sensing applications
•
Applications include label detection, hole detection, gear tooth detection, edge
•
guiding, parts detection and counting
2 mm effective beam
•
10 to 30V dc operation
•
Bipolar PNP/NPN outputs
•
Visible red beam
•
Choose 1 millisecond or 300 microsecond response
•
4-turn potentiometer sensitivity adjustment
•
Dark or light operate
•
Choose integral, unterminated cable or QD models
•
Models
Model
Slot Width
Cable*
Supply Voltage
Output Type
Response
Repeatability
SL10VB6V
10 mm
(0.4")
2 m (6.5') 5-wire cable
10 to 30V dc
Bipolar
NPN (sinking)
and
PNP (sourcing)
1 millisecond
250 microseconds
SL10VB6VQ
5-Pin Euro-style QD
SL10VB6VY
2 m (6.5') 5-wire cable
300 microseconds
75 microseconds
SL10VB6VYQ
5-Pin Euro-style QD
Visible red, 680 nm
* 9 m (30') cables are available by adding suffix “W/30” to the model number of the cabled version (e.g., SL10VB6V W/30).
A model with a QD connector requires an accessory mating cable. See page 5. therapeutic
