SL Series Slot Sensor

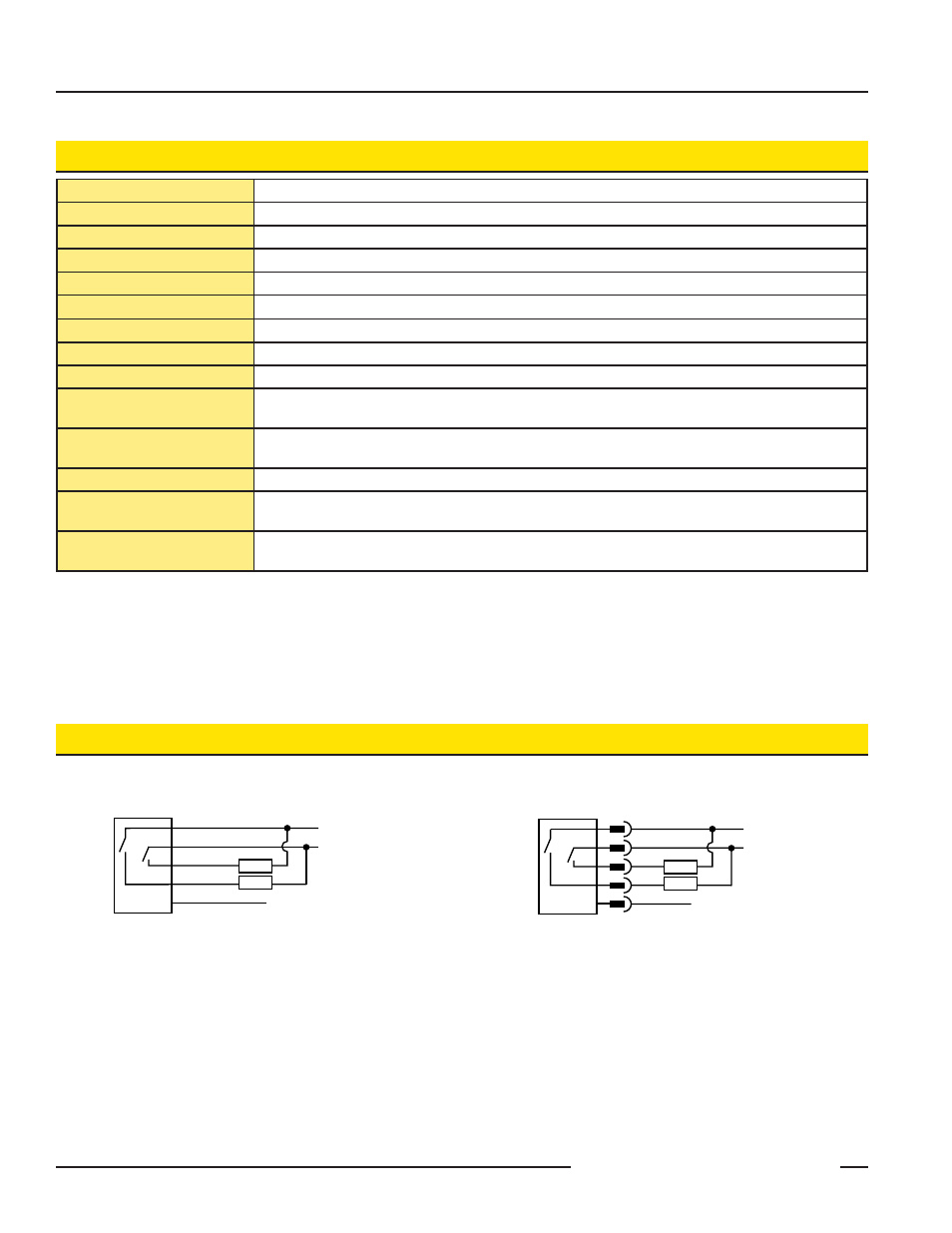

Specifications
Slot Opening 10 mm (0.4”) wide x 45 mm (1.8”) deep overall; beam set in 10 mm (0.4”) from outer edge
Supply Voltage and Current 10 to 30V dc (10% max. ripple), 30 mA
Supply Protection Circuitry Protected against reverse polarity and transient voltages
Output Configuration Bipolar: NPN (current sinking) and PNP (current sourcing)
Output Rating 150mA, each output
Output Protection Circuitry Protected against false pulse on power-up and short-circuit of outputs
Output Response Time 1 millisecond or 300 microseconds, depending on model
Repeatability 250 microseconds or 75 microseconds, depending on model
Adjustments 4-turn clutched potentiometer sensitivity adjustment
Indicators Green: Power ON/OFF indicator
Yellow: Signal Condition indicator
Construction Housing: Polycarbonate ABS/polycarbonate blend thermoplastic
Lenses: Acrylic
Connections IP67, NEMA 6
Environmental Rating 2 m (6.5’) or 9 m (30’) 5-conductor PVC-jacketed attached cable or 5-pin Euro-style quick-disconnect (QD)
connector. QD cables are ordered separately; see page 5.
Operating Conditions Operating Temperature: -40° to +70°C (-40° to +158°F)
Maximum relative humidity: 90% @ 50°C (non-condensing)
Hookups
bn
bu
wh
bk
gy
+
10 - 30V dc
–
Load
Load
(See below*)
Cabled models
bn
bu
wh
bk
gy
+
10 - 30V dc
–
Load
Load
(See below*)
Quick-disconnect models
* For Dark Operate, connect gray wire to + (brown).
For Light Operate, connect gray wire to – (blue).
