45LM Series Modules
2
P/N 63416 rev. A
Banner Engineering Corp.
•
Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164

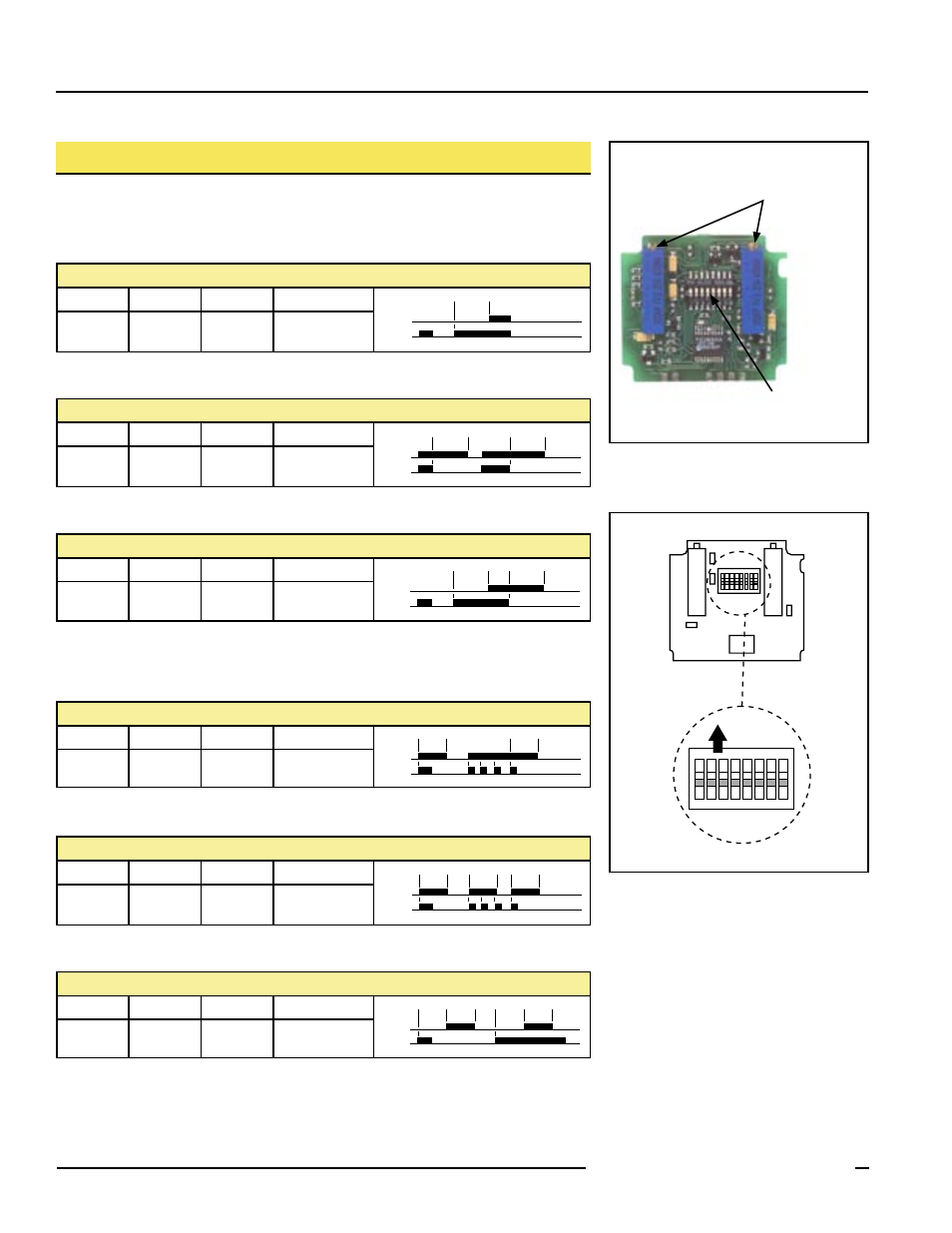

Setting Output Timing Function
Models 45LM58 and 45LM58D (with signal strength display) may be set for one or
several output timing functions. In addition, three adjustable timing ranges are available
(see page 3).
NOTE: ON-delay is selected via switches 4 and 5
NOTE: OFF-delay is selected via switches 6 and 7
NOTES: • ON-delay is selected via switches 4 and 5
• OFF-delay is selected via switches 6 and 7
Multi-turn
Timing
Adjustments
Selection
Switches
Figure 1. 45LM58 features
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
ON
Figure 2. 45LM58 selection switch detail
Output Timing Function: OFF-delay (hold time)
Switch 1
Switch 2
Switch 3
Other Settings
OFF
OFF
OFF
Set Delay time
to OFF
Output
Hold
Signal
Hold
Output Timing Function: ON- and OFF-delay
Switch 1
Switch 2
Switch 3
Other Settings
OFF
OFF
OFF
–
Output
Signal
Hold
Delay
Output Timing Function: Retriggerable one-shot
Switch 1
Switch 2
Switch 3
Other Settings
ON
ON
OFF
–
Output
Signal
Hold
Hold
Output Timing Function: Non-retriggerable one-shot
Switch 1
Switch 2
Switch 3
Other Settings
ON
OFF
OFF
Set Delay time
to OFF
Output
Signal
Hold
Hold
Hold
Output Timing Function: Delayed one-shot
Switch 1
Switch 2
Switch 3
Other Settings
ON
OFF
OFF
–
Output
Signal
Hold
Delay
Hold
Delay
Output Timing Function: ON-delay
Switch 1
Switch 2
Switch 3
Other Settings
OFF
OFF
OFF
Set Hold time
to OFF
Output
Delay
Signal
