Banner MINI-BEAM Expert Series - Manual (Page 5)

General Outputs
PVC-jacketed 5-conductor 2 m (6.5 ft) or 9 m (30 ft) unterminated cable,
or 5-pin Euro-style quick-disconnect (QD) fitting are available. QD cables
are ordered separately.
Application Notes
The first condition presented during TEACH mode becomes the output
ON condition.
Sensors will respond to either a “light” or a “dark” signal of 500 microsec-
onds or longer duration, 1 kHz max. NOTE: 1 second delay on power-up;
outputs do not conduct during this time.
Repeatability
100 microseconds (all models)
Environmental Certifications
Rating
Meets NEMA standards 1, 2, 3, 3S, 4, 4X, 6, 12, and 13; IEC IP67
Operating Conditions
Temperature: –20° to +70° C (–4° to +158° F)
Max. Relative Humidity: 90% at 50° C (non-condensing)

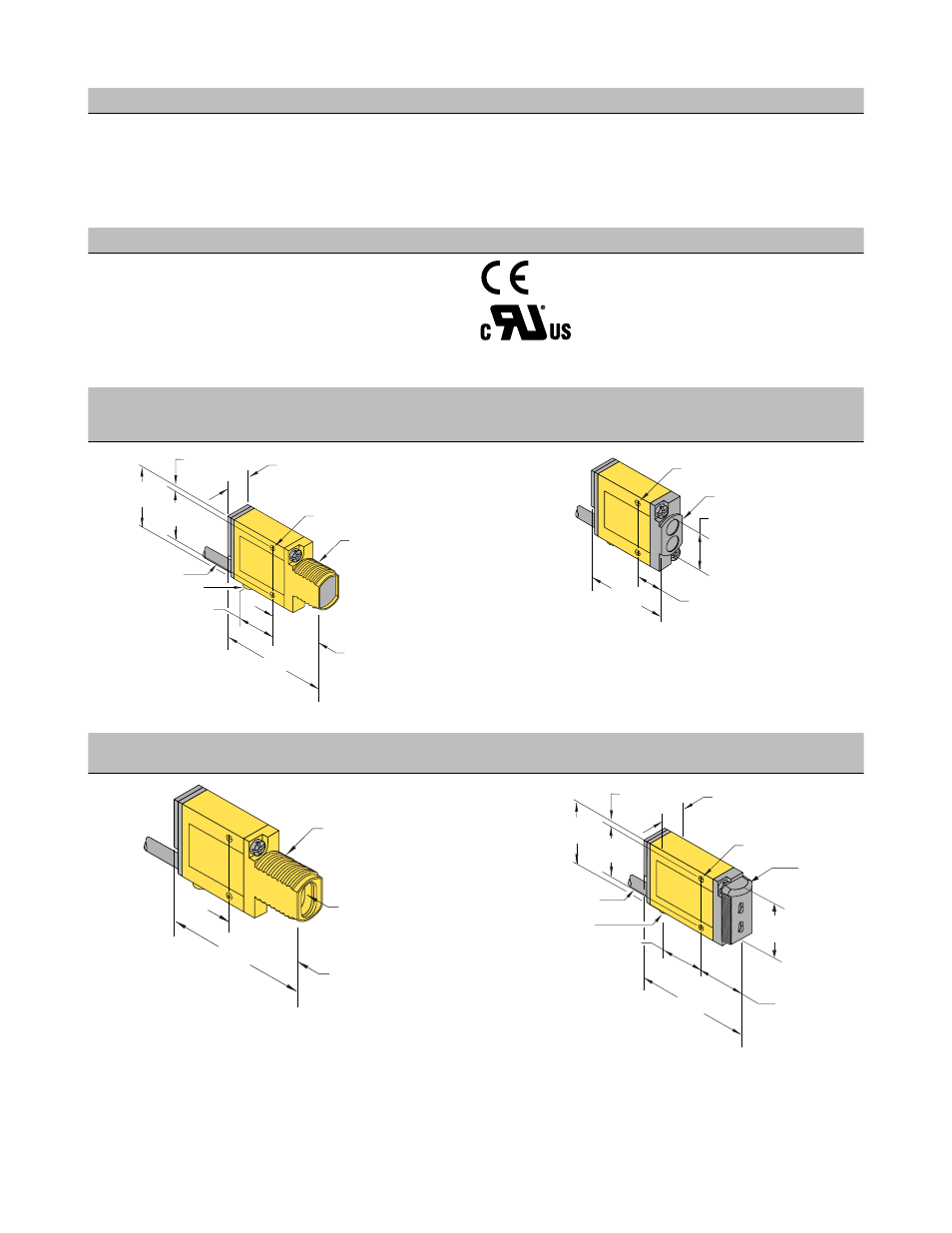

Dimensions
Cabled Models
(Suffix E, EL, EPD, R, RL, RPD, LV, LVAG, LP, LPC, D, C, C2, CV, CV2, CVG,
CV2G, CVB, CV2B, CVW )
Divergent Diffuse Models
(Suffix DBZ and W)
3.2 mm (0.13”)
12.2 mm (0.48”)
3 mm dia Clearance (2)
M18 Ч 1 Ч 15 mm Thread
(Mounting nut supplied)
27.4 mm (1.08”)
53.3 mm (2.10”)
19.1 mm (0.75”)
Mounting peg
(6.3 mm dia × 2.5 mm)
2 m (6.5’) Cable
30.7 mm
(1.21”)
24.1 mm
(0.95”)
3 mm dia Clearance (2)
Bezel
18.0 mm (0.71”)
13.2 mm (0.52”)
39.1 mm
(1.54”)
Glass Fiber Models
(Suffix F, FV, FVB, FVG, FVW)
Plastic Fiber Models
(Suffix FP, FPB, FPG, FPH, FPW)
M18 x 1 x 19 mm Thread
(Mounting Nut Supplied)
57.5 mm (2.27")
31.2 mm (1.23")
Fiber Optic Fitting
3.2 mm (0.13”) 12.2 mm (0.48”)
3 mm dia clearance (2)
Fiber
Optic
Fitting
22.3 mm
(0.88”)
16.2 mm
(0.64”) 42.1 mm
(1.66”)
19.1 mm
(0.75”)
Mounting Peg
(6.3 mm dia × 2.5 mm)
2 m (6.5’) Cable
30.7 mm
(1.21”)
24.1 mm
(0.95”)
