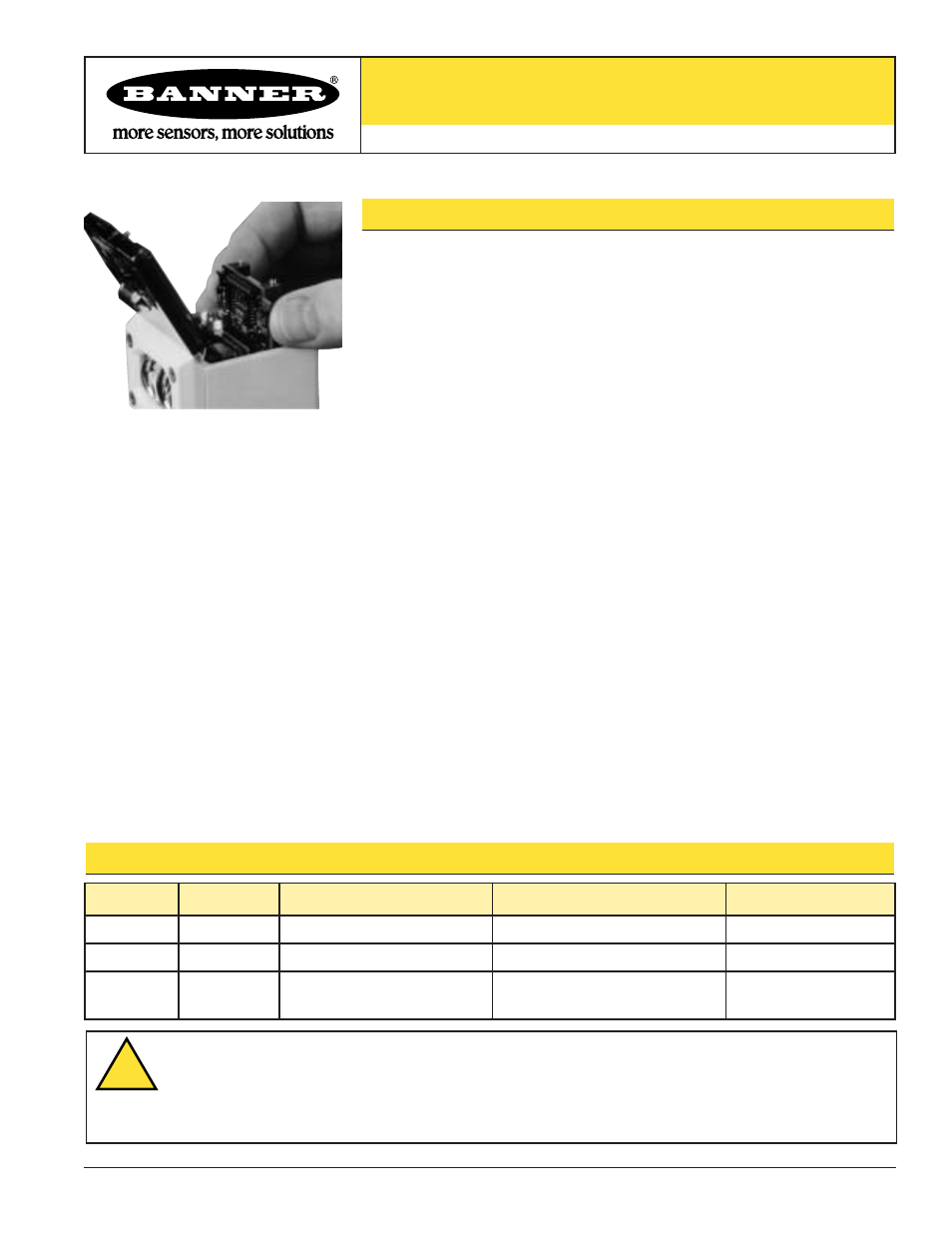

Banner Q45 Series User Manual
45dn bus expansion cards, Features, Models

45DN Bus Expansion Cards
For use with Q45X Photoelectric Sensors on DeviceNet
™
Bus Networks
Printed in USA
05/03
P/N 39667 rev. C
• Banner model 45DN plug-in bus cards enable a Banner Q45X Series sensor to
establish a logical relationship between the sensor’s output and other compatible
devices on a DeviceNet™ bus network.
• The following features of the 45DN are programmable via the network with a
configuration tool*:
Feature
Range (default)
Network Address
0-63 (63)
Baud Rate
125K, 250K, 500K (125K)
Operate Mode**
Light Operate or Dark Operate (Light Operate)
All 45DNs support the following connection type:
The Explicit Message Connection, which is required to Set and Get sensor
Attributes.
The 45DN1 supports the following connection type:
The Bit Strobe Connection, which responds to a master’s request.
The 45DN2 supports the following connection type:
The Change of State Connection, which responds to the slave’s change of state.
I/O Response (8-bit word of data):
Bit 0:
0
Output is OFF
1
Output is ON
Bit 1:
0
Alarm is OFF
1
Alarm is ON
Bits 2-7
Not used: always 0
* Configuration may be simplified through use of an Electronic Data Sheet (Banner
model EDS 40223)
** The Light/Dark Operate switch in the Q45 sensor must be set to the Light Operate
position (the factory setting).
Features
WARNING . . .
Not To Be Used for Personnel Protection
Never use these products as sensing devices for personnel protection. Doing so could lead to serious injury or death.
These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety applications. A
sensor failure or malfunction can cause either an energized or de-energized sensor output condition. Consult your current Banner Safety Products
catalog for safety products which meet OSHA, ANSI and IEC standards for personnel protection.
!
Model
Part Number
Used with Sensor
Communications
I/O Supported
45DN1
40059
All Q45XB6 models, except emitter
DeviceNet
Bit Strobe Connection
45DN2
49215
All Q45XB6 models, except emitter
DeviceNet
Change of State Connection
45DNE1
40907
Q45X6EQ emitter
Allows emitter to be powered from
DeviceNet bus; does not communicate
Models
