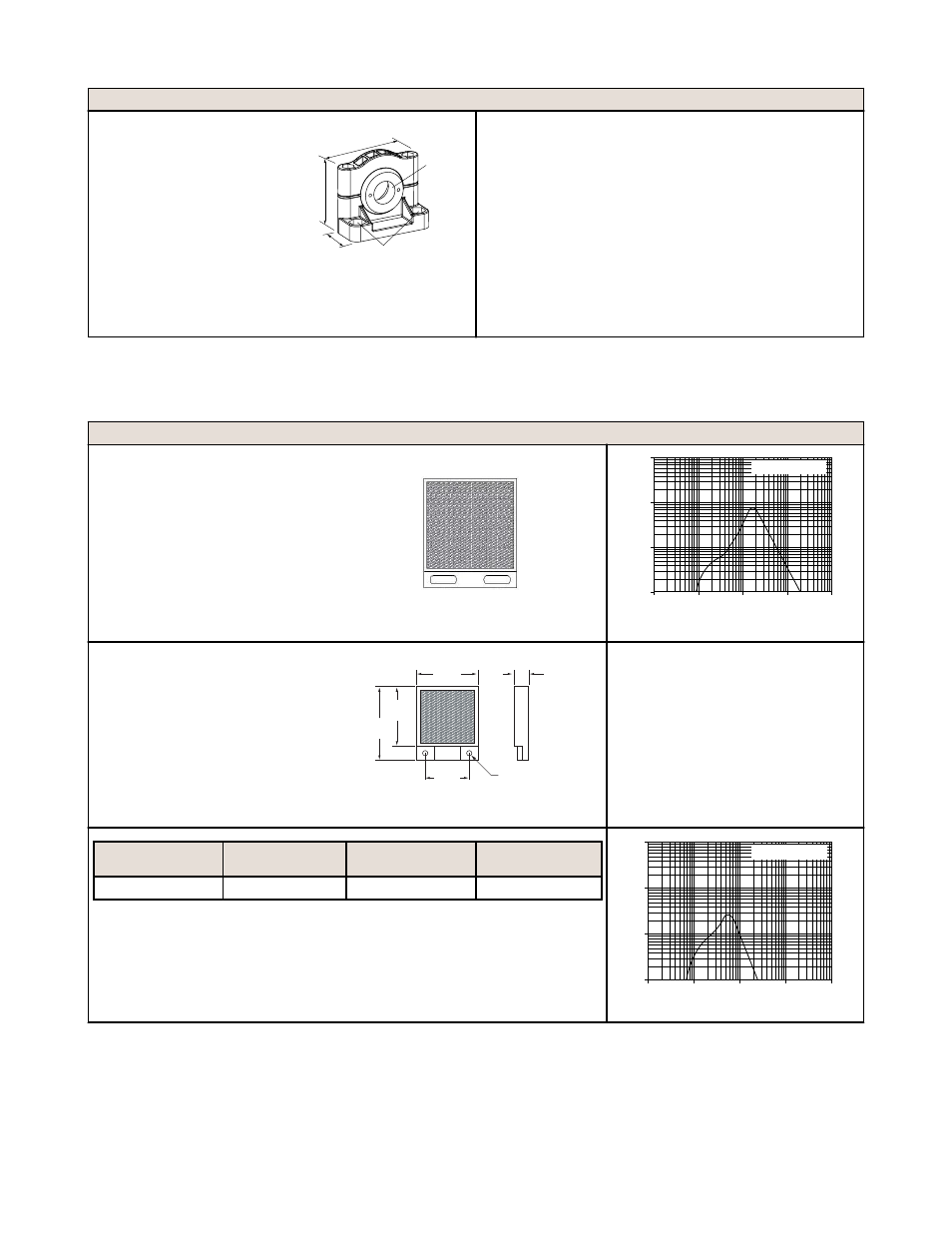

Brackets
SMB3018SC
• 18 mm swivel side or
barrel-mount bracket
• Black reinforced
thermoplastic polyester
• Stainless steel swivel
locking hardware
included
B
A
67
59
29
Hole center spacing: A = 50.8
Hole size: A = ø 7.0, B = ø 18.0
Banner offers a wide selection of high-quality retroreflective targets. See the Accessories section of the current Banner
catalog for complete information. NOTE: Polarized sensors require corner cube type retroreflective targets only. Reflectivity
factor when compared with the standard BRT-3 reflector.
Retroreflective Targets
BRT-51X51BM
• Square, acrylic target
• Reflectivity Factor: 1.5
• Max. Temperature: +50 °C (+122
°F)
• Micro-prism geometry
• Optional brackets are available
• Approximate size: 51 mm x 51 mm
1
10
100
100 mm
(4.0")
1000 mm
(40")
10000 mm
(400")
100000 mm
(4000")
10 mm
(0.4")
1000
E
X
C
E
S
S
G
A
I
N
DISTANCE
with BRT-51X51BM
BRT-35X35BM
• Square, acrylic target
• Reflectivity Factor: 1.2
• Temperature: –20 °C to +60 °C
(−4 °F to +140 °F)
• Approximate size: 35 mm x 35 mm
• Micro-prism geometry
35 mm
(1.4)"
25 mm
(0.98") Clearance
for M3
8.4 mm
(0.33")
42 mm
(1.7")
34 mm
(1.3")
Model Reflectivity Factor Maximum
Temperature
Size
BRT-TVHG-2X2 0.8 +60 °C (+140 °F) 50 × 50 mm
1
10
100
100 mm
(4.0")
1000 mm
(40")
10000 mm
(400")
100000 mm
(4000")
10 mm
(0.4")
1000
E
X
C
E
S
S
G
A
I
N
DISTANCE
with BRT-TVHG-2X2
WORLD-BEAM ® QS18LLP Series
