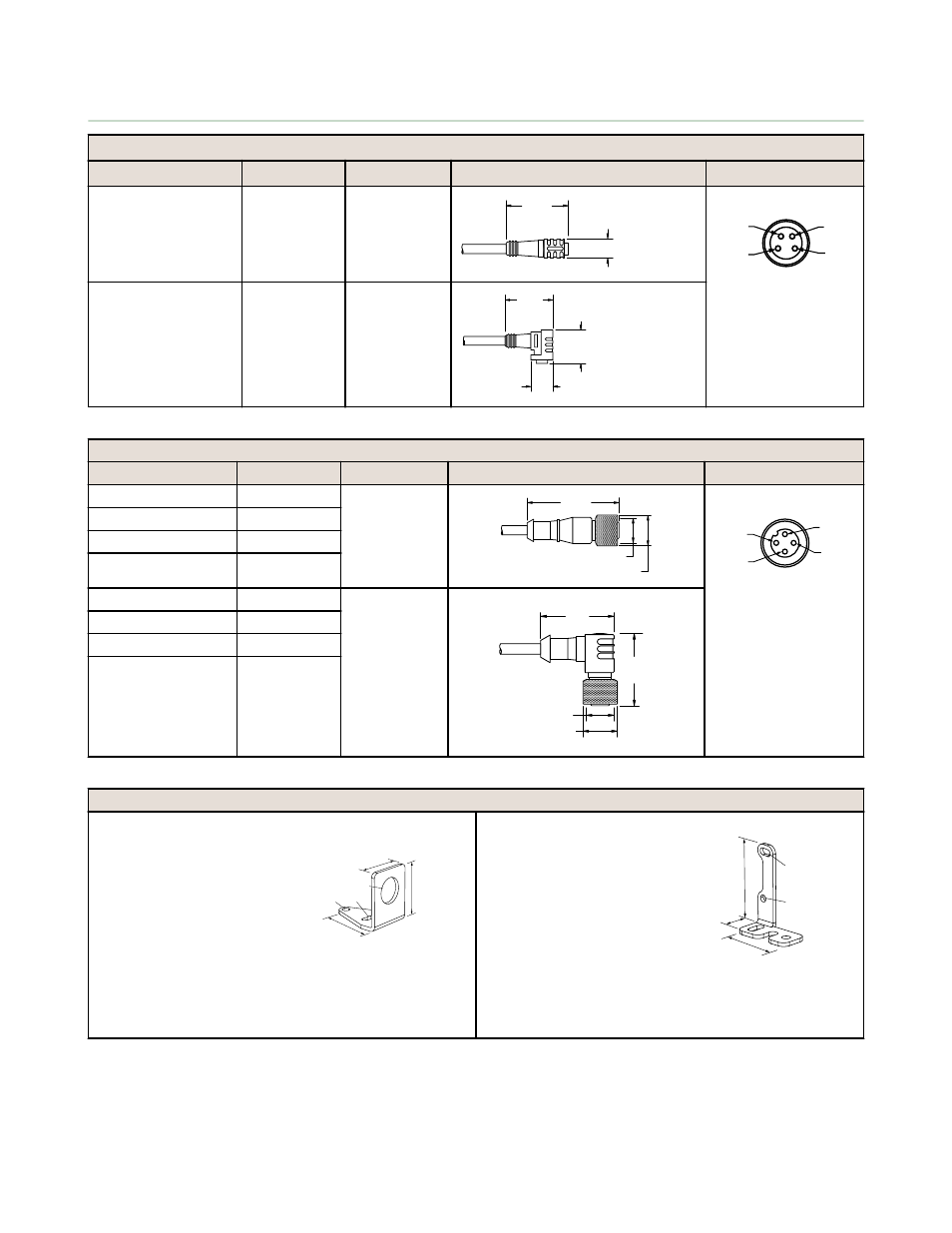

Accessories
4-Pin Snap-on M8/Pico-Style Cordsets
Model Length Style Dimensions Pinout
PKG4-2 2.00 m (6.56
ft)
Straight
ø 9.0
32 Typ.
4
3 1
2
1 = Brown
2 = White
3 = Blue
4 = Black
PKW4Z-2 2.00 m (6.56
ft)
Right-Angle
ø 10.9
29 Typ.
15 Typ.
4-Pin Threaded M12/Euro-Style Cordsets
Model Length Style Dimensions Pinout
MQDC-406 1.83 m (6 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
1 = Brown
2 = White
3 = Blue
4 = Black
MQDC-415 4.57 m (15 ft)
MQDC-430 9.14 m (30 ft)
MQDC-450 15.2 m (50 ft)
MQDC-406RA 1.83 m (6 ft)
Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQDC-415RA 4.57 m (15 ft)
MQDC-430RA 9.14 m (30 ft)
MQDC-450RA 15.2 m (50 ft)
Brackets
SMB18A
• Right-angle mounting
bracket with a curved
slot for versatile
orientation
• 12-ga. stainless steel
• 18 mm sensor mounting
hole
• Clearance for M4 (#8)
hardware
30
41
46
A B
C
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17.0 × 4.6, C = ø 18.5
SMBQS18RA
• Right-angle mounting
bracket
• 14-ga. 304 stainless
steel
42
17
32
A
B
Hole center spacing: A to B=20.3
Hole size: A =4.3 × 9.3, B=ø 4.3
WORLD-BEAM ® QS18LLP Series
P/N 118900 Rev. D www.bannerengineering.com - tel: 763-544-3164 5
