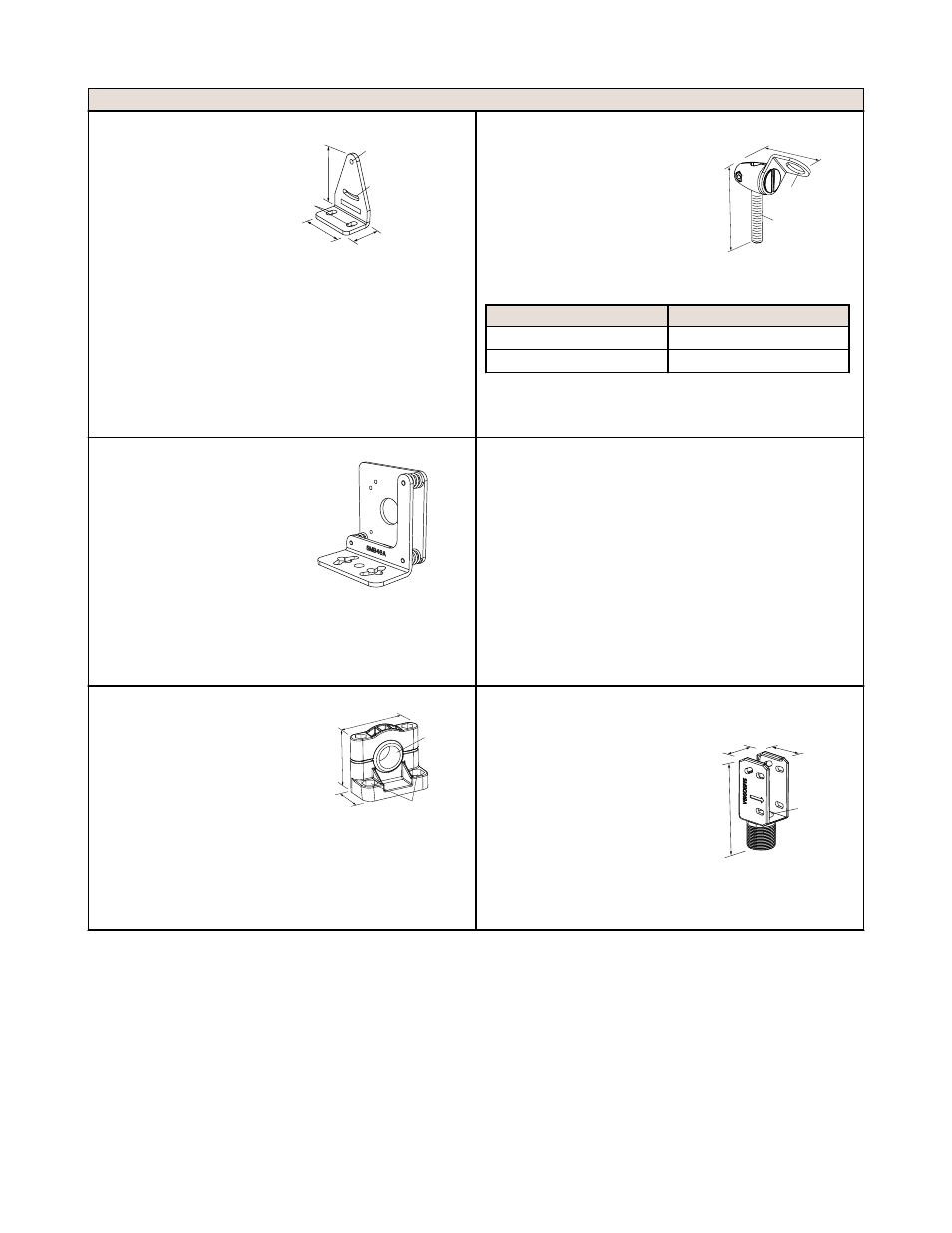

Brackets
SMB312S
• Stainless steel 2-axis,
side-mount bracket
46
B
C
A
32
20
A = 4.3 x 7.5, B = diam. 3, C = 3
x 15.3
SMB18FA..
• Swivel bracket with tilt and
pan movement for precision
adjustment
• Easy sensor mounting to
extruded rail T-slots
• Metric and inch size bolts
available
• 18 mm sensor mounting
hole
66
69
A
B
Hole size: B=ø 18.1
Model Bolt Thread (A)
SMB18FA 3/8 - 16 × 2 in
SMB18FAM10 M10 - 1.5 × 50
SMB46A
• 2-piece 12-ga. stainless
steel bracket assembly
with precision sensor
alignment adjustment
• 2 mm hex key included
Hole center spacing: A to B = 18.5, B = 30.5
Hole size: A = ø 6.6, B = 7.1 x 20.3
SMBQS18Y
• Die-cast bracket for 18
mm holes
• Includes metal hex nut
and lock washer
• Allows ± 8° for cabled
sensors
Hole size: A = ø 15.3
SMB18SF
• 18 mm swivel bracket with
M18 × 1 internal thread
• Black thermoplastic
polyester
• Stainless steel swivel
locking hardware included
B
A
51
42
25
Hole center spacing: A = 36.0
Hole size: A = ø 5.3, B = ø 18.0
SMBQS18A
• Wrap-around protection
bracket
• Die-cast bracket
• Base fits 18 mm
threaded hole
• Metal hex nut, lock
washer and grommet
included
• Mounting holes specially
designed for QS18AF
sensors
Hole size: A = ø 15.3
62
25 19
A
