Indicator Features
1

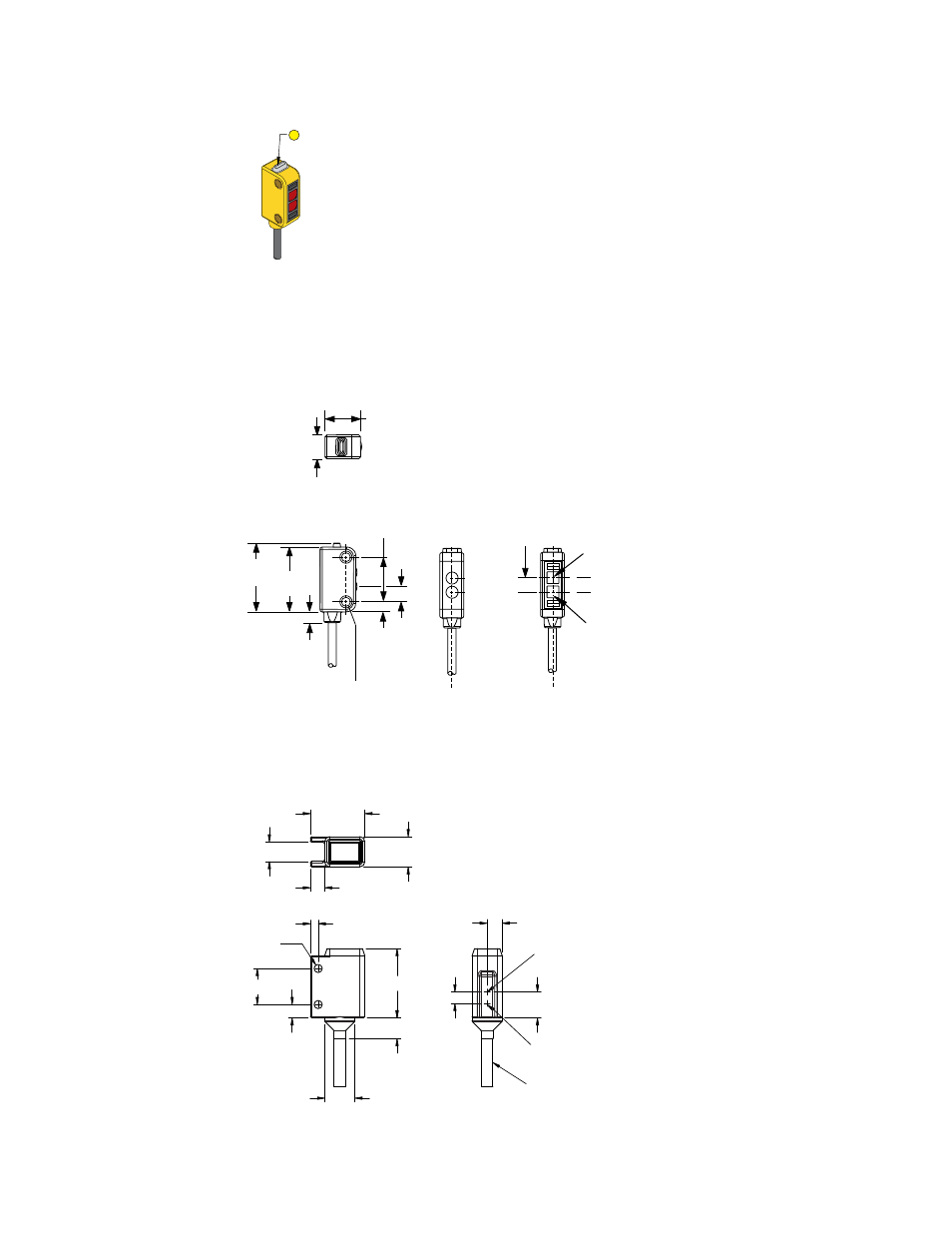

Figure 1. Features
1. Yellow and Green LEDs
• Green ON steady: power to sensor is ON
• Green flashing: output is overloaded
• Yellow ON steady: received signal
• Yellow flashing: marginal signal
Chemical-Resistant models: LEDs are visible through translu-
cent PFA jacket. Rated to 1200 psi washdown.
Dimensions
Standard Models
3.5 mm
(0.14")
22 mm
(0.86")
23.1 mm
(0.91")
3.4 mm
(0.13")
5.1 mm
(0.20")
15.0 mm
(0.59")
4.7 mm
(0.19")
Polarized Retro
Models
M3 mounting
screws included
8.0 mm
(0.31")
12.4 mm
(0.49")
Ø 3 mm (0.12")
max. torque
0.9 Nm (8 in-lbf)
Emitter (opposed mode models)
Emitter (all other models)
Chemical-Resistant Models
10.7 mm (0.42")
28.8 mm (1.13")
3.2 mm (0.13")
5.5 mm (0.22")
15.0 mm (0.59")
8.1 mm (0.32")
Ø 3.4 mm (0.13")
max. torque*
0.9 Nm (8 in-lbf)
12.5 mm (0.49")
Mounting hardware
not included
22.6 mm
(0.89")
6.2 mm
(0.25")
5.9 mm (0.23")
Ø12.5 mm (0.49")
8.6 mm (0.34")
Emitter (opposed mode models)
4.7 mm
(0.18")
4.8 mm (0.19") O.D.
PFA Tube
2 m (6.5')
Emitter (all other models)
* When mounting by running a screw through
both flanges without support between the flanges,
the max. torque applied should be 0.1 Nm (1 in-lbf).
