Banner WORLD-BEAM Q12 Series - Manual (Page 2)

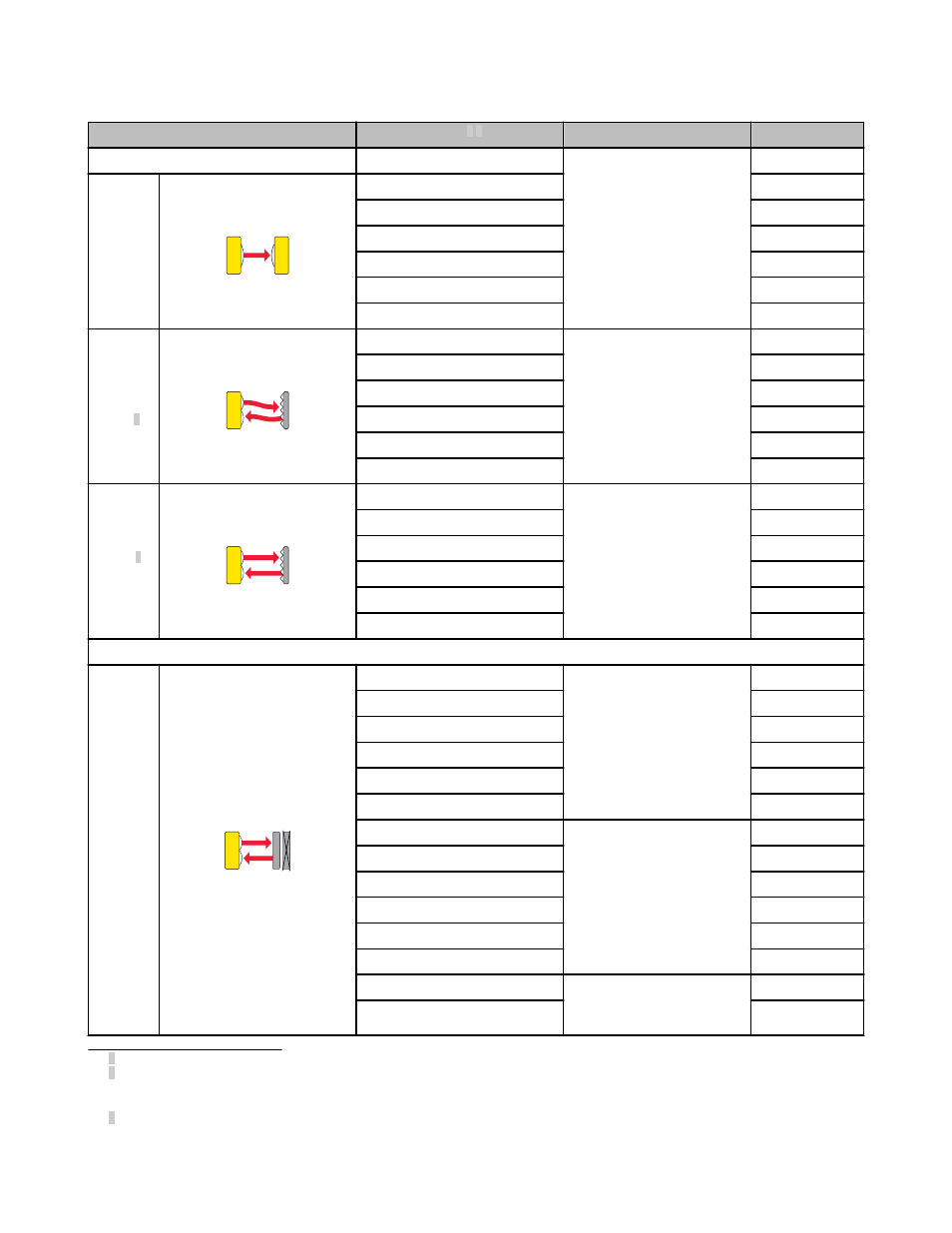

Standard Models
Sensing Mode Model3 4 Range Output
640 nm Visible Red Q126E (emitter)
2 m
(6.5 ft)
N/A
Opposed
Effective Beam: 5.7 mm (0.22 in)
OPPOSED
Q12AB6R Bipolar LO
Q12RB6R Bipolar DO
Q12AP6RQ3 1 PNP LO
Q12RP6RQ3 1 PNP DO
Q12AN6RQ3 1 NPN LO
Q12RN6RQ3 1 NPN DO
Polarized
Retro5
640 nm Visible Red
P
POLAR RETRO
Q12AB6LP
1 m (40 in)
Bipolar LO
Q12RB6LP Bipolar DO
Q12AP6LPQ3 1 PNP LO
Q12RP6LPQ3 1 PNP DO
Q12AN6LPQ3 1 NPN LO
Q12RN6LPQ3 1 NPN DO
Retro 5
640 nm Visible Red
RETRO
Q12AB6LV
1.5 m
(59 in)
Bipolar LO
Q12RB6LV Bipolar DO
Q12AP6LVQ3 1 PNP LO
Q12RP6LVQ3 1 PNP DO
Q12AN6LVQ3 1 NPN LO
Q12RN6LVQ3 1 NPN DO
Performance based on use of 90% reflectance white test card.
Fixed-Field
640 nm Visible Red
FIXED-FIELD
VISIBLE RED
Q12AB6FF15
15 mm (0.6 in)
cutoff;
10 mm (0.4 in)
focus
Bipolar LO
Q12RB6FF15 Bipolar DO
Q12AP6FF15Q3 1 PNP LO
Q12RP6FF15Q3 1 PNP DO
Q12AN6FF15Q3 1 NPN LO
Q12RN6FF15Q3 1 NPN DO
Q12AB6FF30
30 mm (1.2 in)
cutoff;
16 mm (0.63 in) focus
Bipolar LO
Q12RB6FF30 Bipolar DO
Q12AP6FF30Q3 1 PNP LO
Q12RP6FF30Q3 1 PNP DO
Q12AN6FF30Q3 1 NPN LO
Q12RN6FF30Q3 1 NPN DO
Q12AB6FF50 50 mm (2 in)
cutoff
16 mm (0.63 in) focus
Bipolar LO
Q12RB6FF50 Bipolar DO
3 For black housing, add prefix D to the model number, for example DQ12AB6FF15.
4 Q3 models: 3-pin Pico-style (M8 threaded) 150 mm (6 in) pigtail QD. Not available for bipolar models. For 9 m (30 ft) cable, add suffix W/30 to the model number,
for example, Q126E W/30. For 4-pin Pico-style (M8 threaded) 150 mm (6 in) pigtail QD, add suffix Q to the model number, for example, Q126EQ. For 4-pin Euro-
style (M12 threaded) 150 mm (6 in) pigtail QD, add suffix Q5 to the model number, for example Q126EQ5.
5 Retroreflective range is specified using one model BRT-60X40C retroreflector. Actual sensing range may be more or less than specified, depending upon efficien-
cy and reflective area of the retroreflector(s) used.
WORLD-BEAM® Q12 Series Sensors
