Introduction

3

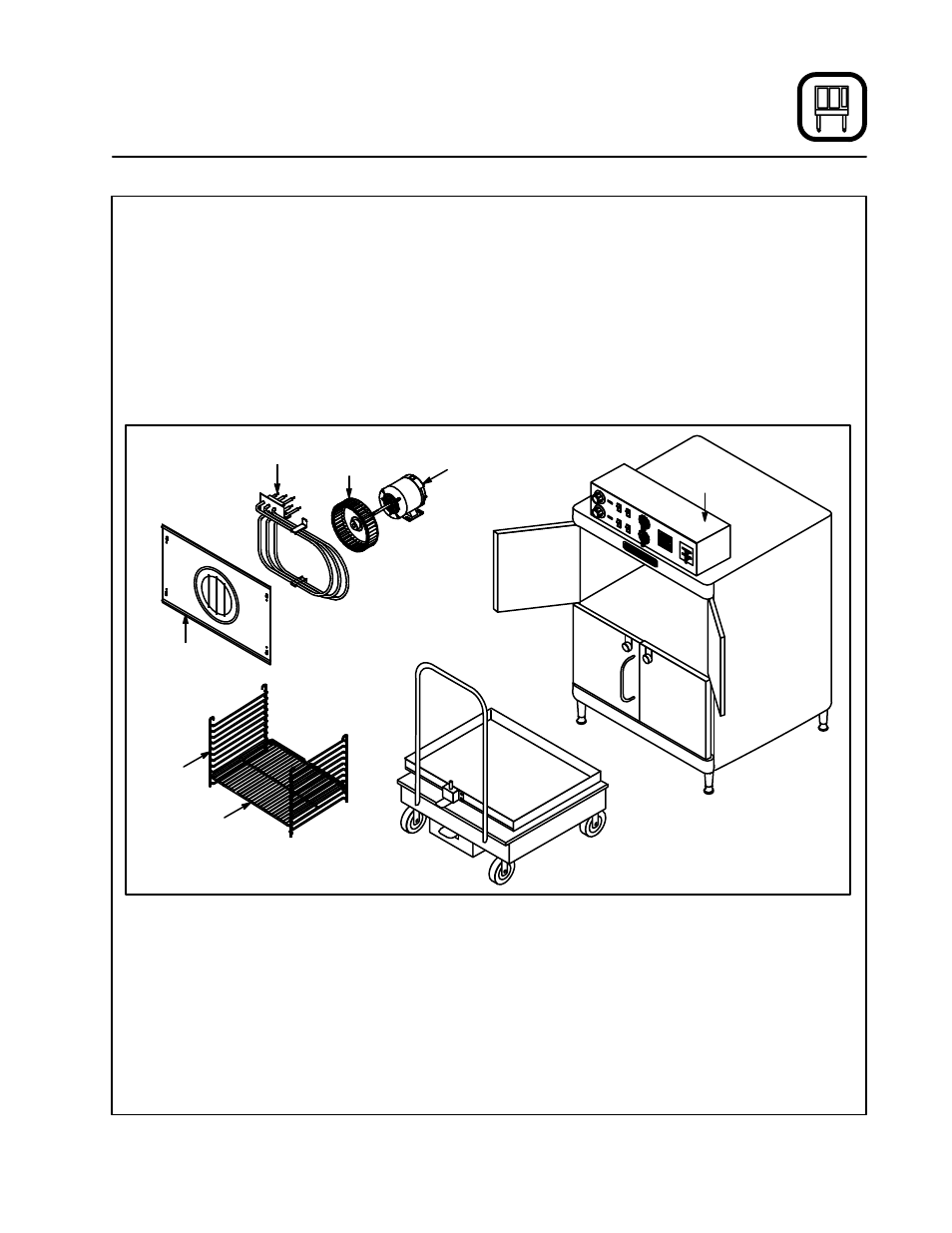

Oven Components

Heating Elements - located on the back wall of

the oven, the elements provide heat to the baking

chamber on electric ovens.
Chain & Turnbuckle - controls operation of the

oven doors.
Control Panel - contains wiring and components

to control the oven operation.
Oven Racks - chrome plated oven racks are

available.

Blower Wheel Cover - located on the back interiĆ

or wall of the oven. Protects the blower wheel.
Blower Wheel - spins to circulate hot air in the

baking chamber.
Convection Motor - provides power to turn the

blower wheel.
Rack Supports - hold oven racks.
Transport Cart - Used to load large amounts of

product. Available with racks and baskets.

Heating

Elements

Convection

Motor

Blower

Wheel

Blower

Wheel

Cover

Oven Racks

Rack

Support

Transport Cart

Control

Panel

Figure 1
