Blodgett AC-500 XCEL User Manual
Model ac-500 x, Ac-500 x, Extra capacity gas convection oven

BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, VT 05401
Phone: (802) 658-6600 • Fax: (802) 864-0183
MODEL AC-500 X
CEL
Extra Capacity Gas Convection Oven
AC-500 X
CEL
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Control options:
Solid state digital control with Cook & Hold
and Pulse Plus™
CH-Pro 3 - Programmable solid state digital
control with LED display, cook and hold,
Pulse Plus™, 3 program product keys
Blodgett IQ2™ multi-stage programmable control
■
Legs/casters/stands:
6" (152mm) adjustable seismic legs
6" (152mm) casters
4-1/4" (108mm) low profile casters (double only)
25” (635mm) stainless steel open stand with
rack guides
■
Venting:
❑
Draft diverter
❑
Draft hood
■
Gas hose with quick disconnect and restraining
device:
❑
48" (1219mm) hose
❑
36" (914mm) hose
❑
Extra oven racks
❑
Gas manifold (for double sections)
❑
Extended warranty
❑
Flue connector
OPTIONS AND ACCESSORIES
(AT NO CHARGE)
❑
Solid stainless steel door
EXTERIOR CONSTRUCTION
■
Full angle iron frame
■
Stainless steel exterior
Dual pane thermal glass windows encased in stainless steel door frames
Antimicrobial coated porcelain door handle with simultaneous door operation
Triple-mounted pressure lock door design with turnbuckle assembly
■
Modular slide out front control panel
■
Solid mineral fiber insulation at top, back, and sides
INTERIOR CONSTRUCTION
■
Eight chrome-plated racks, seventeen rack positions with a minimum of
1-5/8" (41mm) spacing
■
Double-sided porcelainized baking compartment liner (14 gauge)
■
Induced back draft blower wheel
■
Interior lights
OPERATION
■
Direct fired gas system with inshot burners
■
Direct spark
■
Three removable in-shot burners
■
Pressure regulator and manual gas service cut-off valve located in front
control area
■
Solid state thermostat with temperature control range of 150°F (66°C)
to 550°F (288°C)
■
Two speed fan motor
■
3/4 horsepower blower motor with automatic thermal overload protection
■
Control area cooling fan
■
Toggle switch to select either 60,000 BTU or 80,000 BTU input
STANDARD FEATURES
■
Solid state manual control with separate dials to control thermostat and timer
25" (635mm) adjustable stainless steel legs (for single units)
6" (152mm) adjustable stainless steel legs (for double sections)
■
Two year oven parts and one year labor warranty*
■
Five year limited door warranty*
* For all international markets, contact your local distributor.
Project
Item No.
Quantity
Standard depth, extra height baking compartment - accepts up to eight
18" x 26" standard full-size baking pans in front-to-back positions. All data
is shown per oven section, unless otherwise indicated.

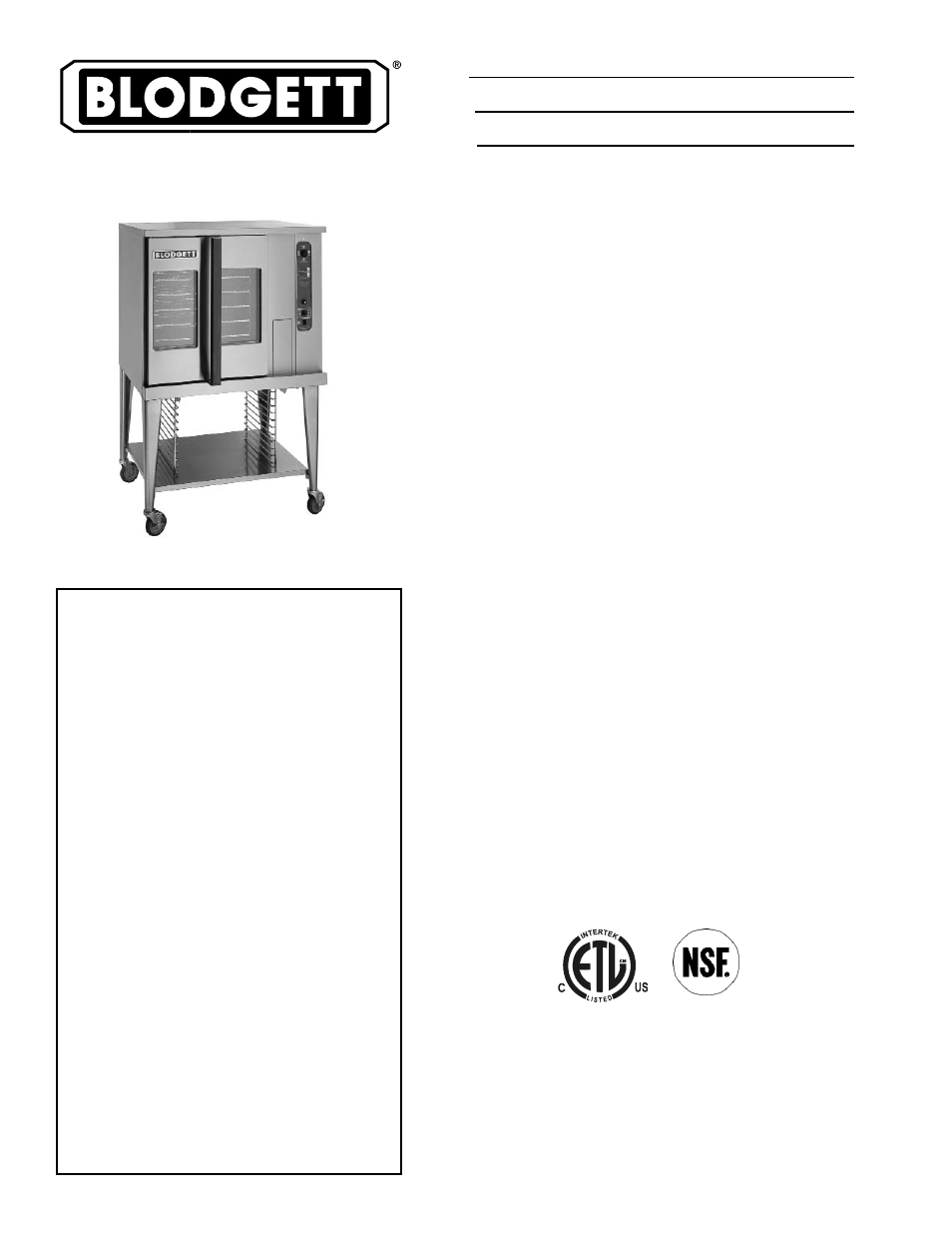

Shown with optional CH-Pro 3 and
open stand with rack guides
