Specifications

Input Supply Voltage

PS24-1: 21–27V ac, 47/63 Hz
PS115-1: 105–130V ac, 47/63 Hz

Voltage and Current Output Rating

100 mA, exclusive of relay coil input; see load

curves

Relay Input Voltage Range

12–30V dc

Relay Input Resistance

470 ohms ±10%

Indicators

Green LED: Power applied
Amber LED: Relay coil energized (output active)

Construction

Circuit board is shipped separate from housing.

Plastic housing, end caps and DIN rail mounting

hardware are supplied for user assembly.

Connections

Screw-clamp terminal block accepts 12–24 gauge

wire

Relay Output Rating

SPDT Relay
Maximum Switched Power: 150W, 1200VA
Maximum Switched Current: 5A (resistive load)
Maximum Switched Voltage: 30V dc, 250V ac
Minimum Current and Voltage: 10 mA at 5V dc
Mechanical Life: 10,000,000 operations
Electrical Life: 100,000 operations at full load

Relay Response Time

10 milliseconds

Adjustments

TEACH button

Environmental Rating

IP00; use BENC-L enclosure for NEMA 4X / IP55

rating.

Operating Conditions

Temperature: –40 to 70 °C (–40 to 158 °F)
Max. Relative Humidity: 90% at 50 °C (122 °F)

(non-condensing)

Certifications

CSA and UL approvals pending

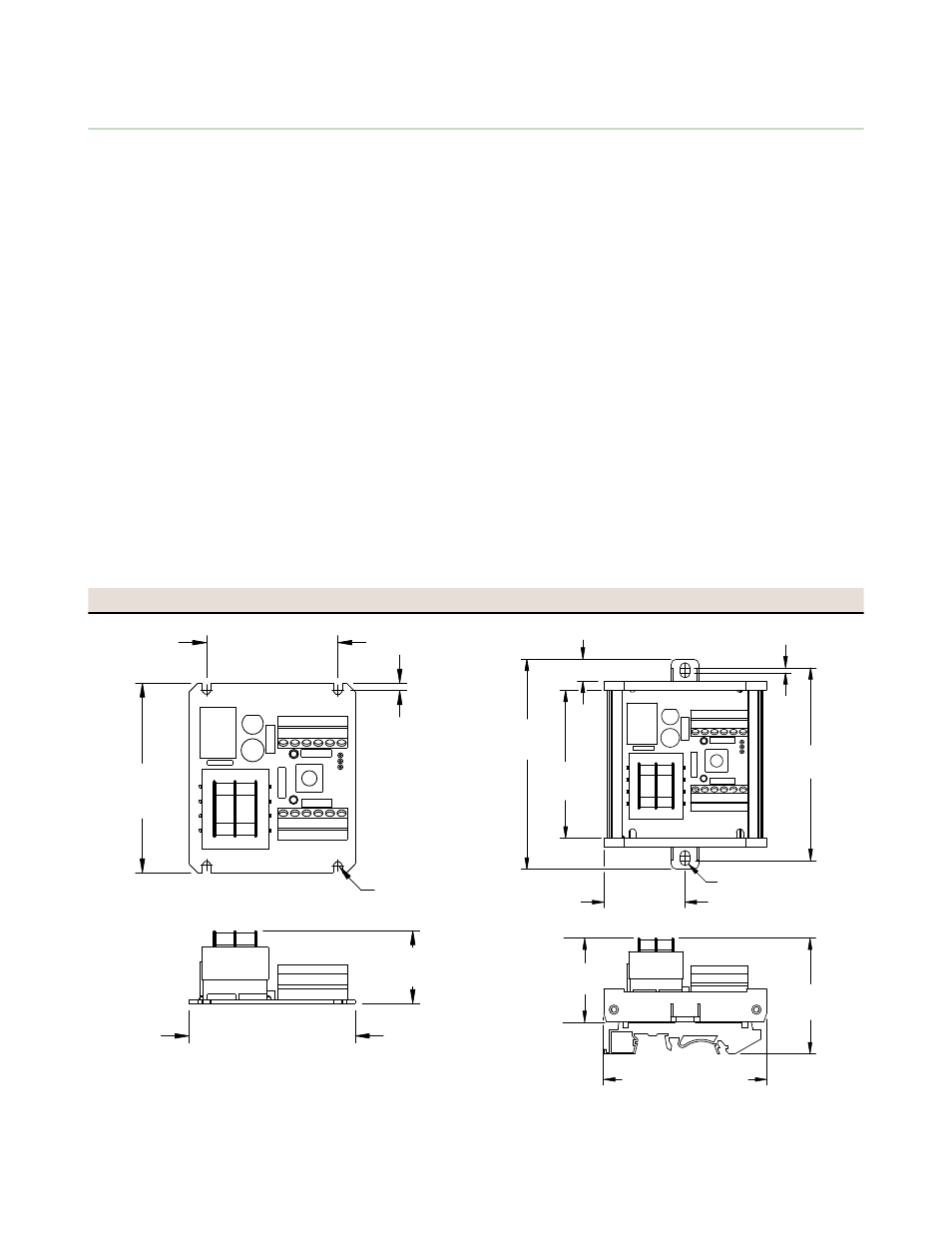

Dimensions

Module

With Plastic Housing Assembly

2X 57.2 mm

[2.25"]

2X 3.3 mm [0.13"]

4X R1.8 mm

[R 0.07"]

82.5 mm

[3.25"]

31.7 mm

[1.25"]

72.4 mm [2.85"]

2X 2.7 mm (0.11")

102.5 mm

(4.04")

111.7 mm

(4.40")

2X 11.8 mm (0.46")

43.2 mm

(1.70")

78.7 mm

(3.10")

2X R 2.7 mm

(R 0.11")

61.5 mm

(2.42")

44.4 mm

(1.75")

86.4 mm (3.40")
