OMNI-BEAM Sensor Heads
page 8
Certifications
Supply Voltage and Current Supplied by OMNI-BEAM power block
Output Response Time See individual sensing heads for response times (page 2)
200 millisecond delay on power-up: outputs are non-conducting during this time.
Adjustments OMNI-BEAM sensor heads are field-programmable for four operating parameters. A set of four
programming DIP switches is located at the base of the sensor head and is accessible with the sensor
head removed from the power block (see page 4).
Switch #1 selects the amount of sensing hysteresis
Switch #2 selects the alarm output configuration
Switch #3 selects LIGHT operate (switch #3 OFF) or DARK operate (switch #3 ON)
Switch #4 selects the STANDARD (switch #4 OFF) or FINE (switch #4 ON) scale factor for the D.A.T.A.
light signal strength indicator array
15-turn slotted brass screw Gain (sensitivity) adjustment potentiometer (clutched at both ends of travel)
Indicators Sense and Load indicator LEDs are located on the top of the sensor head on either side of the D.A.T.A. array.
Sense LED indicates when a target has been sensed
Load LED lights whenever the load output is energized
Also, Banner’s exclusive D.A.T.A. sensor self-diagnostic system located on the top of the sensor head
warns of marginal sensing conditions usually before a sensing failure occurs (except on model OSBFAC).
Construction Sensor heads are molded of rugged reinforced thermoplastic polyester; top view window is LEXAN ®
polycarbonate; acrylic lenses; stainless steel hardware
Environmental Rating Meets NEMA standards 1, 2, 3, 3S, 4, 12, and 13; IEC IP66 when assembled to power block
Operating Temperature Temperature: -40° to +70°C (-40° to +158°F)
Maximum relative humidity: 90% at 50°C (non-condensing)

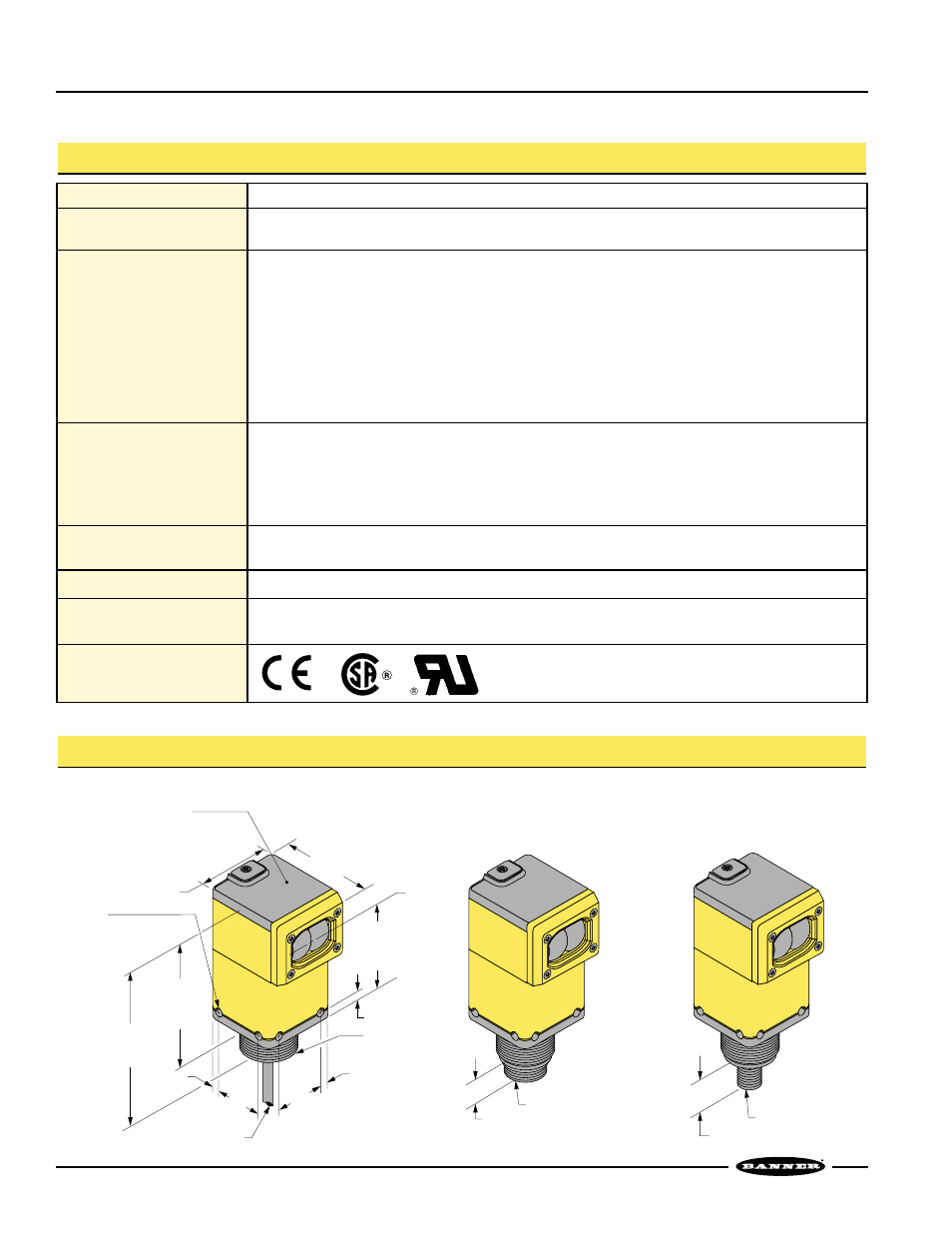

OMNI-BEAM Sensor Head Specifications
OMNI-BEAM Dimensions – Sensor Head Shown Assembled to Power Block
OMNI-BEAM Sensor with Attached Cable
Transparent Cover (Gasketed)
View: D.A.T.A. Lights
Sensing Status
Output Load
Remove to Access:
Sensitivity (Gain) Adjustment
Logic Timing Adjustments
44.5 mm (1.75")
57.4 mm w/DC
(2.26")
38.1 mm w/DC
(1.50")
60.5 mm w/AC
(2.38")
79.8 mm w/AC
(3.14")
7.1 mm
(0.28")
30.0 mm
(1.18")
30.0 mm
(1.18")
7.1 mm
(0.28")
Internal Thread
(1/2-14NPSM)
External Thread
M30 X 1.5
5.6 mm (0.22")
Lens
Centerline
2 m ( 6.5' Cable)
76.2 mm w/DC Power Block
(3.00")
98.6mm w/AC Power Block
(3.88")
#10 Screw
Clearance (4)
Cross-hole design for front,
back, or side mounting
54.6 mm*
(2.15")
Hex Nut
Supplied
* 61.7 mm (2.43") for OSBCV, CVG, CVB
60.5 mm (2.38") for OSBF, FV, FVG, FVB, FX, EF, RF, FAC
59.8 mm (2.35") for OSBFP, FPG, FPB
14 mm (0.6")
Mini-style QD Connector
15 mm (0.6")
Euro-style QD Connector
OMNI-BEAM Sensor with Quick Disconnect
Mini-Style Euro-Style
LEXAN ® is a registered trademark of General Electric Company
