MINI-BEAM Dimension Information
MINI-BEAM DC Sensor with Integral Cable MINI-BEAM DC Sensor with Quick-Disconnect
MINI-BEAM ® Sensors
SM312LV, SM312LVAG and SM312LP
page 4
Banner Engineering Corp. • Minneapolis, U.S.A.
www.bannerengineering.com • Tel: 763.544.3164

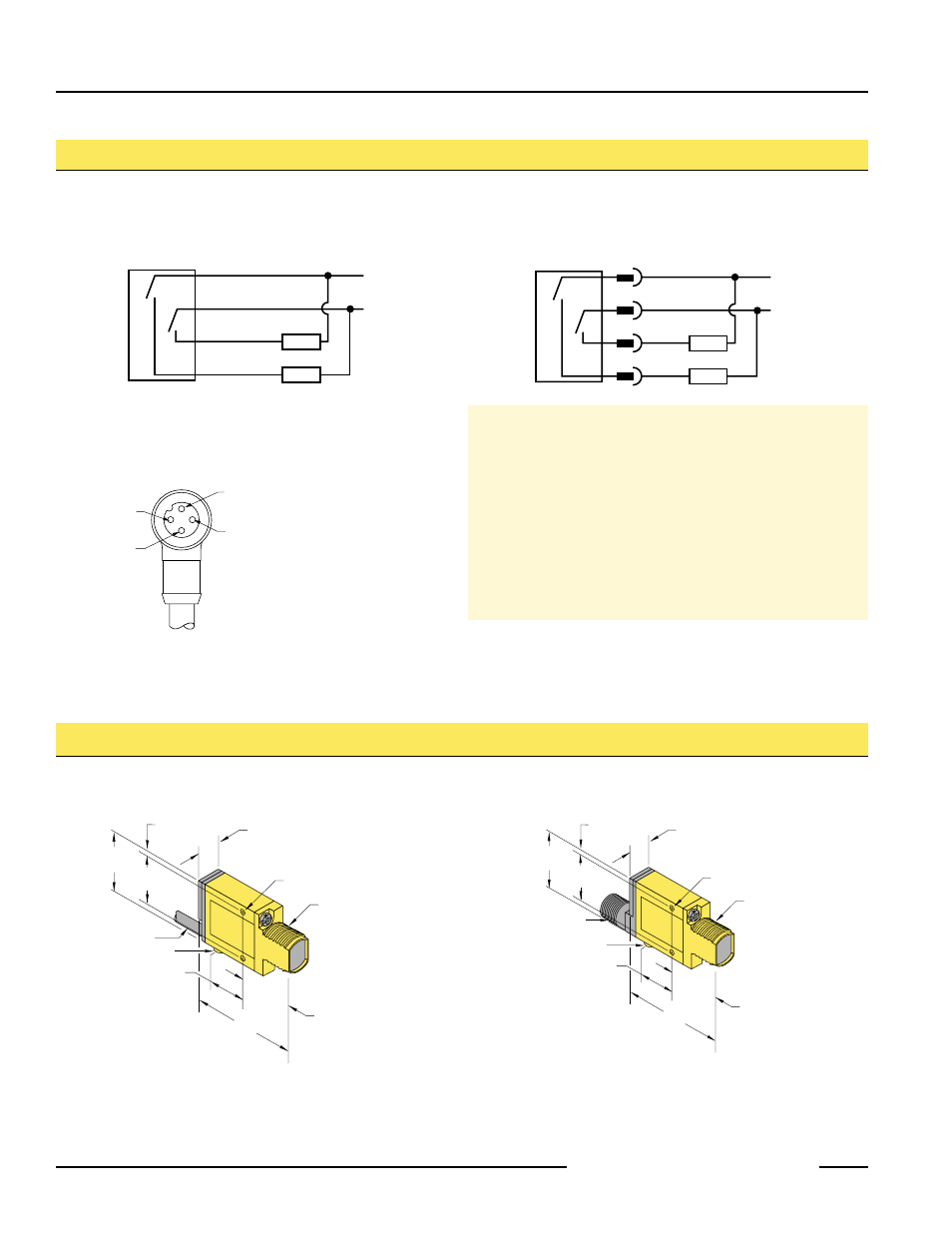

MINI-BEAM DC Hookup Diagrams
DC Sensors with Attached Cable DC Sensors with Quick Disconnect
(4-Pin Euro-Style)
bn
wh
bu
+
–
bk
Load
Load
10-30V dc
bn
wh
bu
+
–
bk
Load
Load
10-30V dc
Quick Disconnect (QD) Option
DC MINI-BEAM sensors are sold with either a 2 m (6.5') or
a 9 m (30') attached PVC-covered cable, or with a 4-pin
Euro-style QD cable fitting.
DC QD sensors are identified by the letters “QD” in their
model number suffix. Mating cables for QD MINI-BEAM
sensors are model MQDC-415 (straight connector) or
MQDC-415RA (right-angled connector). Cables are supplied
in a standard length of 5 m (15'). For more information on
QD cables, see page 8.
4-Pin Euro-Style Pin-out
(Cable Connector Shown)
White Wire
Blue Wire
Black Wire
Brown Wire
12.2 mm (0.48 in)
Mounting Peg
(ø 6.3 mm x 2.5 mm)
ø 3 mm Clearance (2)
M18 x 1 x 15 mm Thread
(Mounting Nut Supplied)
3.2 mm (0.13 in)
53.3 mm (2.10 in)
27.4 mm (1.08 in)
30.7 mm
(1.21 in)
24.1 mm
(0.95 in)
2 m (6.5 ft) Cable
19.1 mm (0.75 in)
12.2 mm (0.48 in)
Mounting Peg
(ø 6.3 mm x 2.5 mm)
ø 3 mm Clearance (2)
M18 x 1 x 15 mm Thread
(Mounting Nut Supplied)
3.2 mm (0.13 in)
53.3 mm (2.10 in)
27.4 mm (1.08 in)
30.7 mm
(1.21 in)
24.1 mm
(0.95 in)
M12 x 1 Thread
Quick Disconnect
19.1 mm (0.75 in)
